38mm LC UPC Fiber Optic Connectors 45dB Single Mode Fiber Connectors
38mm LC UPC Fiber Optic Connectors 45dB Single Mode Fiber Connectors
38mm LC UPC Fiber Optic Connectors 45dB Single Mode Fiber Connectors
38mm LC UPC Fiber Optic Connectors 45dB Single Mode Fiber Connectors
Specifications
Brand Name :
YT
Model Number :
SC APC Singlemode Fast Connector
Certification :
ISO, SGS, ROHS
Place of Origin :
china shenzhen
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
XTransfer T/T, Western Union, PayPal
Supply Ability :
5000 pcs/Month
Delivery Time :
3-7days
Product Name :
LC UPC Fiber Optic Connectors
Return Loss :
>= -45dB
Cable Type :
0.9mm Tight Buffer Cable
Insert Loss :
<=0.3dB
Length :
38mm
Fiber Type :
SM Or MM
Connector Structure :
Pre -embeded Type
Description

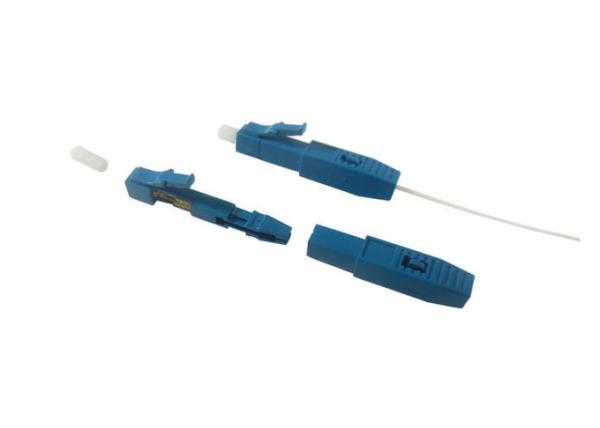

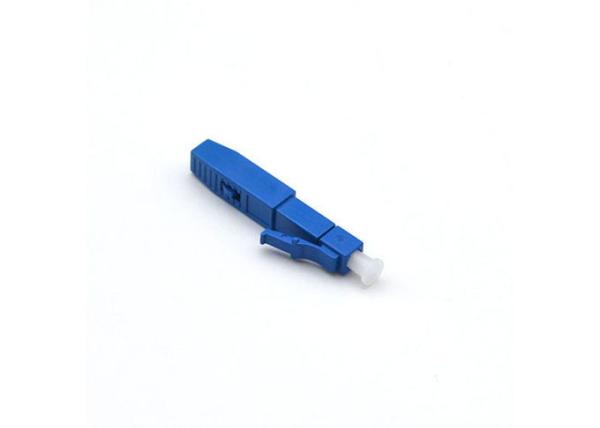

LC UPC Pre -embeded Type Fiber Optic Fast Connector for 0.9mm Tight Buffer Cable

Quick Assembly LC fiber optic fast connector can provide quick and easy terminations of fibers in the field, and options are available for 900 micron and 250 micron. It allows the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens, with features of high installation quality, high success rate and high reliability.

Specifications:

Parameter
Item Parameter
Single-Mode Multi-Mode
Insertion Loss <=0.3dB
Return Loss >=45dB
Durability (1000 Mating) 0.2dB Max.
Operating Temperature -40°C~+75°C
Storage Temperature -40°C~+85°C
Remark: Ferrule Concentricity SM< 1um; MM< 1.4um Ferrule inner diameter tolerance +1/-0um Ferrule outer diameter tolerance +/-0.5 um

Features:

1) Factory-installed fiber stub.
2) No epoxy and polishing required, No special tools needed when installed.
3) Allows up to three re-termination result.
4) Easily installed, Quick and easy fiber termination in the field.
5) Only 30 seconds needed to learn the process of installation and making.
6) Cost effective, Warranty: One year.
7) Fast connecting and repeat, No special tools needed when installed.
8) Can be made on-site without splicing connectors.
9) Eliminates cable excess length and pigtail splice storage.
10) Can be intalled and maked repeatedly thus avoiding loss

Applications:

1. Optical fiber communication room
2. Coss connecting cabinet
3. CATV
4. NET EPON
5. FTTB/FTTH
6. Networkcabinet
