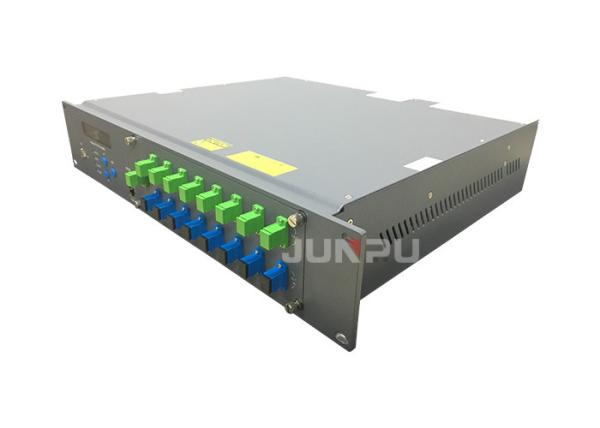

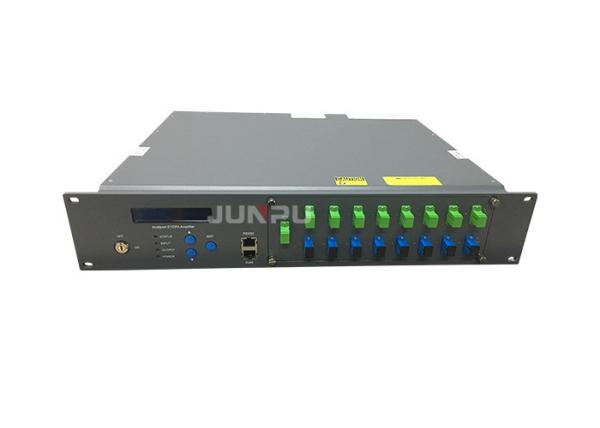

Junpu 1550 Cable TV 8 Ports Wdm Edfa Fiber Optic Amplifier 22dbm Gpon Network

Description:

• JP0822EAP (2RU) series is a low noise, high performance, FTTP high power, multi-ports optical amplifier with gain spectrum band within 1540~1563nm. Each output port for optical amplifier has built-in well-performed CWDM. Every external up-link optical port of optical amplifier can connect with OLT PON port very conveniently. Each 1550nm (CATV)'s output optical port multiplex 1310/1490n's data stream, in order to reduce the quantity of the component and improve the index and reliability of the system.

• JP0822EAP optical amplifier can be compatible with any FTTx PON Technology.
• It offers a flexible and low-cost solution for three-network integration and Fiber to the Home.

FTTH Diagram:

Product Features:

• 1540~1565nm operating bandwidth for optical amplifier
• Each output optical port is with built-in high performance CWDM, single fiber three wavelengths, which can save optical fiber resources largely.
• Output adjustable by buttons in the front panel or web SNMP, the range is down 4dBm
• Can compatible with any FTTx PON technology: EPON/GEPON, GPON, BPON, DPON
• Multi- ports output, can built in 1310/1490/1550WDM
• Low noise figure ( Typ ≤4.5dB, Max ≤5.0dB )
• Standard RJ 45 port for remote control, we can provide output contract and web manager for choice, and also plug-in SNMP hardware can be reserved for update.
• With laser key to turn on/off the laser
• Led displays the working condition of the machine
• Dual power hot plug power supply for choice, 90V～250V AC or -48V DC

Details:

Technical Specification:

Workshop

Other EDFA WDM Series:

We sincerely invite you to send us inquiry for further details.
