Waterproof Network Outdoor Optical Node 4 Outputs 42~862MHz 220V For HFC
Waterproof Network Outdoor Optical Node 4 Outputs 42~862MHz 220V For HFC
Waterproof Network Outdoor Optical Node 4 Outputs 42~862MHz 220V For HFC
Waterproof Network Outdoor Optical Node 4 Outputs 42~862MHz 220V For HFC
Specifications
Brand Name :
JUNPU
Model Number :
JP4GOR
Certification :
ROHS, CE, CCC
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T, Western Union, Credit Card Via Alibaba
Supply Ability :
5000 Pieces Per Month
Delivery Time :
1 ~ 10 Working days based on quantity
Packaging Details :
Standard Strong Carton Box
Product Name :
HFC Network Outdoor Optical Node
Application :
HFC
Wavelength :
1100 - 1600nm
Input power :
-8dBm ~ +2dBm
Bandwidth :
40~862MHz&1006MHz
With Return Path :
Customized
Power supply :
AC35-AC90V&AC140V~265V
RF output level :
102,104,106dbuv
OEM :
YES
MOQ :
1
Description

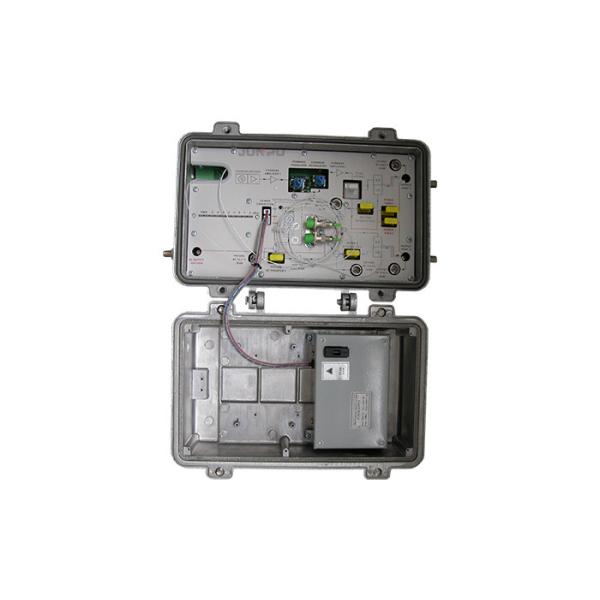

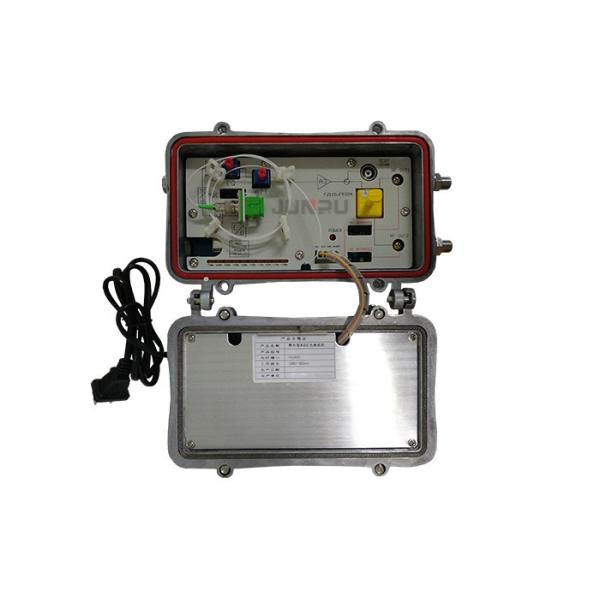

Junpu HFC Network Outdoor Optical Node 4 Outputs 42~862MHz 220V

Description:

  • JP4GOR optical receiver is an outdoor 4 outputs and waterproofing receiver. It is mainly used in the FTTB network that can realize the analog and digital signal to the users. It can work together with ONU or EOC to realize the network convergence. JP-4GOR AGC control range is +2~-8dBm, when the optical input power +2~-8dBm, the output level will be same, which is easy for debug.

Product Features:

  • High quality waterproof aluminum shell, waterproof grade standard to IP65.
  • Beautiful double shield panel, ensure good EMC index
  • AGC Control range of AGC + 2 ~ 8dBm
  • Using T type +E anti surge lightning protection circuit, effectively prevent power damage.
  • SC/APC or FC/APC optical connector, Female or male RF connector.
  • Support 220V/60V power supply

Details:

Parameter Specification
Product Name HFC Network Outdoor Optical Node 4 Outputs 42~862MHz 220V
Input Range Power -8 ~ +2dBm

Bandwidth

45 ~ 862Mhz&1006MHz

RF output level

102,104,106dbuv

Waterproof Network Outdoor Optical Node 4 Outputs 42~862MHz 220V For HFCWaterproof Network Outdoor Optical Node 4 Outputs 42~862MHz 220V For HFC

Technical Specification:

Index JP4GOR
Wavelength 1100-1600nm
Optical input power -8dBm~+2dBm
AGC control range -8dBm~+2dBm
Optical return loss >45dB
Optical connector FC/APC&SC/APC
Bandwidth 40~750&862&1006MHz
Flatness ±0.75dB@40-750MHz ±1dB@40-860&1000MHz
Output return loss ≥16dB@40-550MHz ≥14dB @550-750&860&1000MHz
Gain adjustable range 0-30dB
Slope adjustable range 0-18dB
Impedance 75Ω
CN(note 3) ≥51dB
CTB(note 3) ≥65dB
CSO(note 3) ≥62dB
Return path wavelength 1310nm&1550nm
Return path bandwidth 5-30MHz&42MHz&65MHz(max:200MHz)
Return path output power 1&2@1310nm or customize
Return path flatness ±0.75dB
Power supply AC35-AC90V&AC140V~265V or customize
Power supply way

220V@Chinese Outlet with 1m power cord

60V@G283 independent power supply port
Mainboard voltage +24V&+8V
Workshop:
Waterproof Network Outdoor Optical Node 4 Outputs 42~862MHz 220V For HFC
Related Product:
Waterproof Network Outdoor Optical Node 4 Outputs 42~862MHz 220V For HFCWaterproof Network Outdoor Optical Node 4 Outputs 42~862MHz 220V For HFC
Waterproof Network Outdoor Optical Node 4 Outputs 42~862MHz 220V For HFC

We sincerely invite you to send us inquiry for further details.

Junpu Cares About Every Single Details Of The Product For You !
