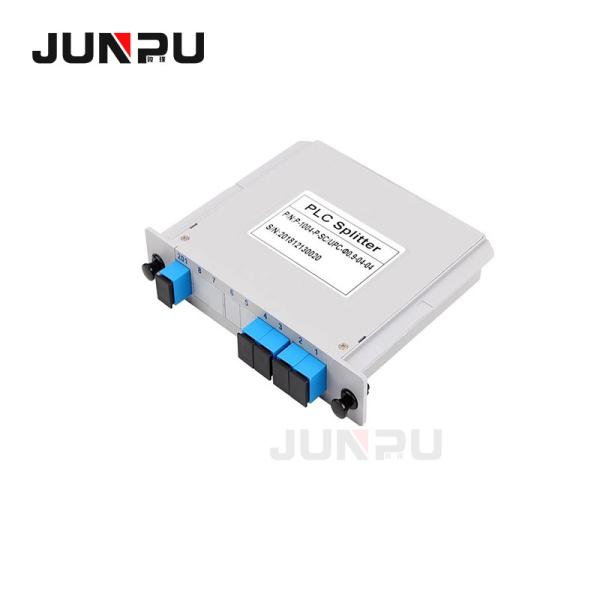

FTTH 1x2 1x4 1x8 1x16 Fiber Cassette Optical PLC Splitter Cassette Plug-in
FTTH 1x2 1x4 1x8 1x16 Fiber Cassette Optical PLC Splitter Cassette Plug-in
FTTH 1x2 1x4 1x8 1x16 Fiber Cassette Optical PLC Splitter Cassette Plug-in
FTTH 1x2 1x4 1x8 1x16 Fiber Cassette Optical PLC Splitter Cassette Plug-in
FTTH 1x2 1x4 1x8 1x16 Fiber Cassette Optical PLC Splitter Cassette Plug-in
FTTH 1x2 1x4 1x8 1x16 Fiber Cassette Optical PLC Splitter Cassette Plug-in
FTTH 1x2 1x4 1x8 1x16 Fiber Cassette Optical PLC Splitter Cassette Plug-in
FTTH 1x2 1x4 1x8 1x16 Fiber Cassette Optical PLC Splitter Cassette Plug-in
Specifications
Brand Name :
JUNPU
Model Number :
splitter apc 1x2 1x4 1x8 1x16
Certification :
ROHS, CE, CCC
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T, Western Union, Credit Card Via Alibaba
Delivery Time :
1 ~ 10 Working days based on quantity
Packaging Details :
Standard Strong Carton Box
Connector Type :
SC,FC,LC,ST
Ferrule End-face :
PC, UPC,APC
Fiber Type :
G652D G657A1 G657A2
Fiber Mode :
Singlmode
Package :
Steel Tube, ABS
Structure :
1x2 1x4 1x8 1x16
Product Name :
FTTH 1x2 1x4 1x8 1x16 Fiber Cassette Optical PLC Splitter Cassette Plug-in
Description

FTTH 1x2 1x4 1x8 1x16 Fiber Cassette Optical PLC Splitter Cassette Plug-in

Description:

This is a professional fiber splitter, which can distribute the light energy of a single fiber to 8 fibers according to a given ratio, or combine the light energy of multiple fibers into a single fiber

1x8 insert type PLC Splitter. The interface type is SC/APC, fast and practical. Applicable to home wiring, engineering projects, corporate companies, fiber optic LAN.

Full fiber optic structure, good environmental stability, compact structure, small size, can be installed in various existing transfer boxes, No need to leave a lot of installation space

Before aligning the coupler, the waveguide must be cleaned and carefully installed on the waveguide frame, then the fiber is cleaned, one end is installed on the precision adjustment frame at the incident end, and the other end is connected to the light source

FTTH 1x2 1x4 1x8 1x16 Fiber Cassette Optical PLC Splitter Cassette Plug-inFTTH 1x2 1x4 1x8 1x16 Fiber Cassette Optical PLC Splitter Cassette Plug-inFTTH 1x2 1x4 1x8 1x16 Fiber Cassette Optical PLC Splitter Cassette Plug-inFTTH 1x2 1x4 1x8 1x16 Fiber Cassette Optical PLC Splitter Cassette Plug-in

Features

  • Various coupling ratio
  • Single mode and multi mode available
  • Low insertion loss, low PDL
  • Environmental stable
  • Industry standard and custom housing available
  • Variety of connectors available
  • 1x2, 1x4 and 1x n customized couplers configuration available

Applications:

  • 1. Fiber Optical Communication Systems
  • 2. Optical Fiber CATV
  • 3. Passive Optical Network (PON)
  • 4. Fiber Optic Amplifiers
  • 5. Fiber Optic Access Networks/LAN
  • 6. Monitoring Systems
  • 7. Optical Fiber Sensor

Specification:
Table 1 – 1×N PLC Fiber Splitter

Parameters 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260～1650
Fiber Type G657A or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability(-40～85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40～85
Storage Temperature (℃) -40～85
Package Steel Tube or ABS

Table 2 – 2×N PLC Fiber Splitter

Parameters 2×2 2×4 2×8 2×16 2×32 2×64
Operating Wavelength (nm) 1260～1650
Fiber Type G657A or customer specified
Insertion Loss (dB) 4.0 7.6 11.0 14.4 17.5 21.0
Loss Uniformity (dB) 0.6 1.0 1.2 1.5 1.8 2.2
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.3 0.3 0.4 0.4
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.4 0.5 0.5 0.5 0.5
Temperature Stability(-40～85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40～85
Storage Temperature (℃) -40～85
Package Steel Tube or ABS

Notes:

  1. Specified without connectors.
  2. Add an additional 0.15dB loss per connector

FTTH 1x2 1x4 1x8 1x16 Fiber Cassette Optical PLC Splitter Cassette Plug-inFTTH 1x2 1x4 1x8 1x16 Fiber Cassette Optical PLC Splitter Cassette Plug-in​
