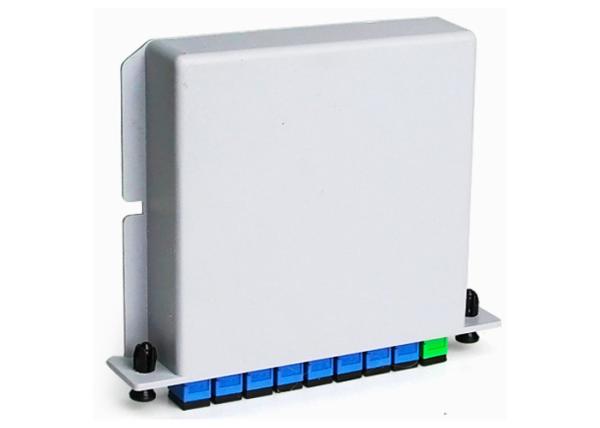

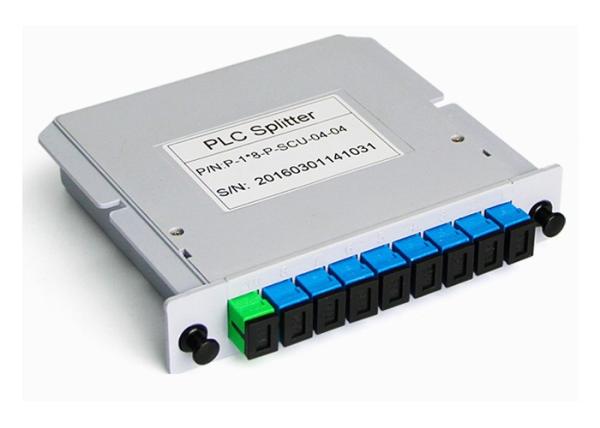

1x8 SC UPC Fiber Optical Cassette PLC Splitter in Fiber optic box
1x8 SC UPC Fiber Optical Cassette PLC Splitter in Fiber optic box
1x8 SC UPC Fiber Optical Cassette PLC Splitter in Fiber optic box
1x8 SC UPC Fiber Optical Cassette PLC Splitter in Fiber optic box
1x8 SC UPC Fiber Optical Cassette PLC Splitter in Fiber optic box
1x8 SC UPC Fiber Optical Cassette PLC Splitter in Fiber optic box
Specifications
Brand Name :
JUNPU
Model Number :
splitter apc 1x8
Certification :
ROHS, CE, CCC
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T, Western Union, Credit Card Via Alibaba
Delivery Time :
1 ~ 10 Working days based on quantity
Packaging Details :
Standard Strong Carton Box
Connector Type :
SC,FC,LC,ST
Ferrule End-face :
PC, UPC,APC
Fiber Type :
G652D G657A1 G657A2
Fiber Mode :
Singlmode
Package :
Steel Tube, ABS
Structure :
1X8
Product Name :
Fiber Optic Splitter Apc 1x8
Description

1x8 SC UPC Fiber Optical Cassette PLC Splitter In Fiber Optic Box

Description:

It is mainly used in corridors or outdoor FTTH fiber splitting points. It’s suitable for primary or secondary optical FTTH splitting and has an obvious advantage over secondary optical splitting.

1x8 SC UPC Fiber Optical Cassette PLC Splitter in Fiber optic box

Planar Lightwave Circuit (PLC) Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from the Central Office (CO) to multiple premise locations.

Feature:

  • Adopt high-strength stainless steel, pass the salt spray test
  • Ferrule core is less than 0.5um
  • Adopt 100% new raw material, ROHS compliance
  • Low Insertion loss
  • Low PDL Compact Design
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength: from 1260nm to 1650nm
  • Wide Operating Temperature: from -40℃ to 85℃.

Application:

Rackmount standard ODF, fiber distribution box, fiber cabinet.

  • Fiber to the point (FTTX)
  • Fiber to the home (FTTH)
  • Passive optical networks(PON, GEPON)
  • Local area networks (LAN)
  • Cable television (CATV)
  • Test equipment

Specification:


Table 1 – 1×N PLC Fiber Splitter

Parameters 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260～1650
Fiber Type G657A or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability(-40～85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40～85
Storage Temperature (℃) -40～85
Package Steel Tube or ABS

Table 2 – 2×N PLC Fiber Splitter

Parameters 2×2 2×4 2×8 2×16 2×32 2×64
Operating Wavelength (nm) 1260～1650
Fiber Type G657A or customer specified
Insertion Loss (dB) 4.0 7.6 11.0 14.4 17.5 21.0
Loss Uniformity (dB) 0.6 1.0 1.2 1.5 1.8 2.2
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.3 0.3 0.4 0.4
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.4 0.5 0.5 0.5 0.5
Temperature Stability(-40～85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40～85
Storage Temperature (℃) -40～85
Package Steel Tube or ABS

Notes:

  1. Specified without connectors.
  2. Add an additional 0.15dB loss per connector

1x8 SC UPC Fiber Optical Cassette PLC Splitter in Fiber optic box1x8 SC UPC Fiber Optical Cassette PLC Splitter in Fiber optic box

We sincerely invite you to send us an inquiry for further details.

Junpu Cares About Every Single Details Of The Product For You!
