Specifications
Brand Name :
JUNPU
Model Number :
ADSS Fiber Optic Cable
Certification :
ROHS, CE, CCC
Place of Origin :
China
Payment Terms :
T/T
Supply Ability :
500 Kilometer/Kilometers per Day
Delivery Time :
1 ~ 10 Working days based on the quantity
Packaging Details :
Wooden Drum
Application :
Telecommunication,outdoor aerial,FTTH FTTB FTTX Network,Aerial/Duct,Municipalities/Co-ops/Utilities/Telco/Broadband/Enterprise
Fiber type :
G652D,OM3,G657A2,50/125,62.5/125
Number of conductors :
≥ 10
Fiber count :
1-144 core
Jacket material :
PE,LSZH
Product Name :
GYTA Multimode Fiber Optic Cable, Outdoor Single Mode Fiber Optic Cable
Span :
Over 1000m
Package :
2km/roll
Cable type :
FRP
Description

GYTA Multimode Fiber Optic Cable, Outdoor Single Mode Fiber Optic Cable
Description

  • ADSS cable is loose tube stranded. Fiber, 250m, is positioned into a loose tube made of high-modulus plastic. The tubes are lied with a water-resistant lling compound. The tubes(and llers) are stranded around an FRP(Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound, it is covered with thin PE(polyethylene) inner sheath. After a stranded layer of aramid yarns is applied over the inner sheath as a strength member, the cable is completed with PE or AT(anti-tracking) outer sheath.

GYTA Multimode Fiber Optic Cable, outdoor single mode fiber optic cable
Features

  • Can be installed without shutting off the power.
  • Excellent AT performance. The maximum inductive at the operating point of AT sheath can reach 25kv.
  • Light weight and small diameter reducing the load caused by ice and wind adn the load on towers and backprops.
  • Large span lengths and the largest span ia over 1000m.
  • Good performance of tensile strength and temperature.
  • The desing life span is over 30 years.


Application

  • Aerial for power cable transmission line, self - supporting.


Optical Characteristics

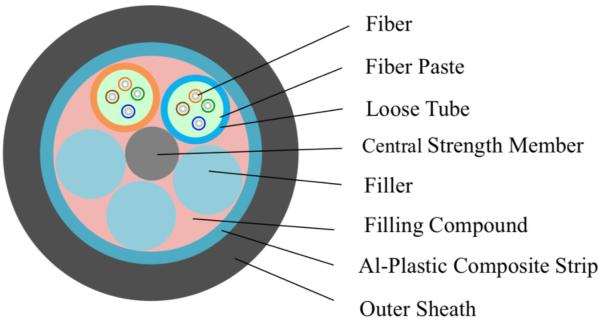

Figure. Cable Cross-Section (A-end)

Item

Unit

Parameter

Cable Standard Weight

kg/km

66

Rated Tensile Strength(RTS)

KN

3.4

Maximum Allowable Tension(MAT)

KN

1.2

Every Day Strength(EDS)

KN

0.85

Min-Bending Radius

Short-Term

mm

25D

Long-Term

mm

15D

Crush Performance

Short-Term

N/100mm

1000

Long-Term

N/100mm

300

Suiting Line Voltage Class

Not more than 110kV

Span

m

100

Suitable Meteorological Condition

Max wind speed: 60km/h, No icing

Operation

When working or in store

°C

-40°C-+70°C

Temperature

When laying

°C

-10°C-+50°C

Fiber Attenuation Coefficient in Cable

dB/km(1310nm)

≤0.36dB/km

dB/km(1550nm)

≤0.22dB/km

GYTA Multimode Fiber Optic Cable, outdoor single mode fiber optic cable
Package
GYTA Multimode Fiber Optic Cable, outdoor single mode fiber optic cable
GYTA Multimode Fiber Optic Cable, outdoor single mode fiber optic cable
We sincerely invite you to send us inquiry for further details.
Junpu Cares About Every Single Details Of The Product For You !
