Gyta53 Underground 12 Core Outdoor Fiber Optic Cable Single Mode In 2km Roll
Gyta53 Underground 12 Core Outdoor Fiber Optic Cable Single Mode In 2km Roll
Specifications
Brand Name :
JUNPU
Model Number :
GYTA53
Certification :
ROHS, CE, CCC
Place of Origin :
China
Payment Terms :
T/T
Supply Ability :
30000 Kilometer/Kilometers per Week
Delivery Time :
1 ~ 10 Working days based on the quantity
Packaging Details :
2000km per wooden drum, and outer sealed with wooden battens, or as per buyer's requirement.
Application :
Telecommunication,outdoor aerial,FTTH FTTB FTTX Network,Aerial/Duct,Municipalities/Co-ops/Utilities/Telco/Broadband/Enterprise
Fiber type :
G652D,OM3,G657A2,50/125,62.5/125
Number of conductors :
≥ 10
Fiber count :
6 - 144 Core
Jacket material :
PE,LSZH
Product Name :
12 Core Single Mode Fiber Optic Cable Outdoor
Laying method :
Underground
Package :
2km/roll
Description

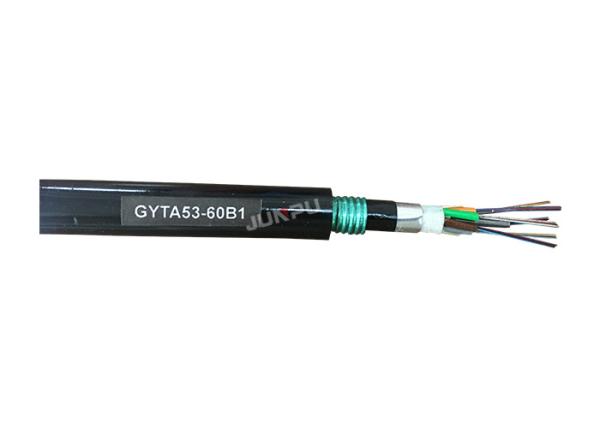

GYTA53 Underground 12 Core Single Mode Fiber Optic Cable Outdoor
Decsripttion

  • GYTA53 The fibers,250μmm,are position in a loose tube made of a high modulus plastic.The tube are filled with a water resistant filling compound.A steel wire,sometimes sheathed with ployethylene(PE) for cable with high fiber count,locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.

  • An Aluminum Polyethylene Laminate(APL) is applied around the cable core,which is filled with filling compound to protect it from water ingress. Thn the cable core is covered with a thin PE inner sheath.After the PSP is longitudinally applied over the inner sheath,the cable is completed with a PE outer sheath.

Gyta53 Underground 12 Core Outdoor Fiber Optic Cable Single Mode In 2km Roll
Features

  • Steel wire strength filler protect tube fiber. Steel tape armord.
  • Good ultra violet radiation resistant property.
  • Double sheath and Double armored .
  • Good moisture resistance. ​


Application

  • Mainly adopted to direct buried, duct and cable trench.


Optical Characteristics

Inner Jacket

Dimension

8.0±0.3mm(2-24F)

8.2±0.3mm(25-36F)

8.6mm±0.3mm(48-60F)

9.1mm±0.3mm(61-72F)

10.3mm±0.4mm(73-96F)

11.6mm±0.4mm(97-120F)

12.8mm±0.5mm(121-144F)

Material

PE

Color

Black

Outer Jacket

Dimension

12.9±0.5mm(2-24F)

13.1±0.5mm(25-36F)

13.5mm±0.5mm(48-60F)

14.0mm±0.5mm(61-72F)

15.2mm±0.5mm(73-96F)

16.5mm±0.5mm(97-120F)

17.7mm±0.5mm(121-144F)

Material

PE

Color

Black

Fiber Attenuation Coefficient in Cable

dB/km(1310nm)

≤0.36dB/km

dB/km(1550nm)

≤0.22dB/km

Gyta53 Underground 12 Core Outdoor Fiber Optic Cable Single Mode In 2km Roll
Package
Gyta53 Underground 12 Core Outdoor Fiber Optic Cable Single Mode In 2km Roll
Gyta53 Underground 12 Core Outdoor Fiber Optic Cable Single Mode In 2km Roll
We sincerely invite you to send us inquiry for further details.
Junpu Cares About Every Single Details Of The Product For You !
