Specifications
Brand Name :
GAPHO
Model Number :
FZQ-02 Fiber Optic Fan Out Kit
Place of Origin :
China
MOQ :
50
Price :
negotiate
Payment Terms :
T/T
Supply Ability :
50000
Delivery Time :
7-10 day
Packaging Details :
Carton
Product Material :
Steel/Aluminum/Copper/Plastic
Cable Diameter :
3.0mm-7.0mm
Product Diame :
10mm-18mm
Product Lenths :
20mm-50mm
Core Diame :
0.9mm-3.0mm
core NO. :
8core
place of origin :
ShenZhen,CHINA
brand name :
GAPHO
Accessories :
Metal Ring, Heat Shrinkable Tube, Glue
diameter X lengths :
φ12*26
Description

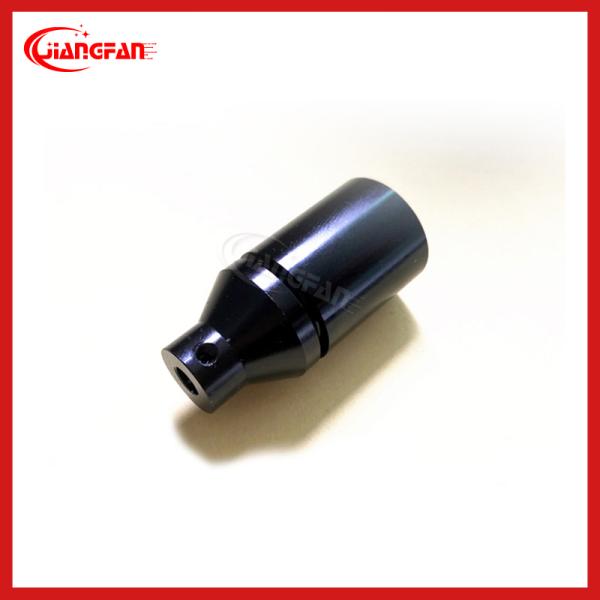

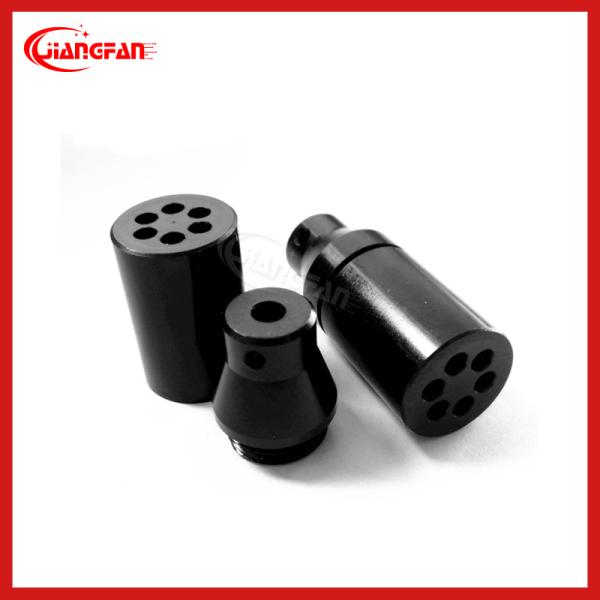

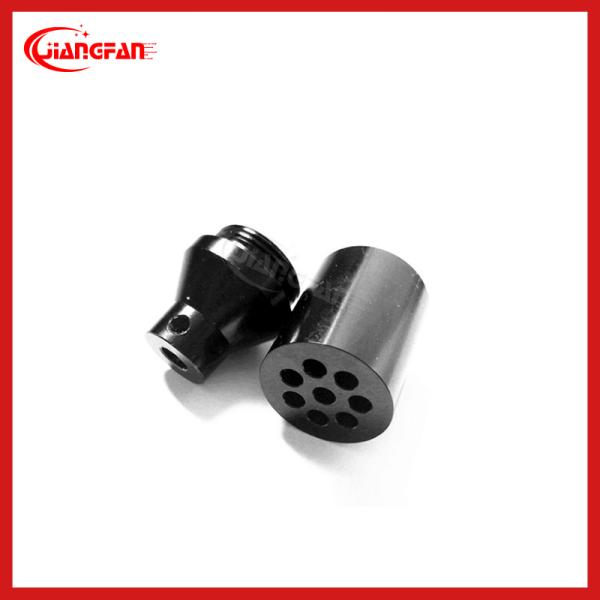

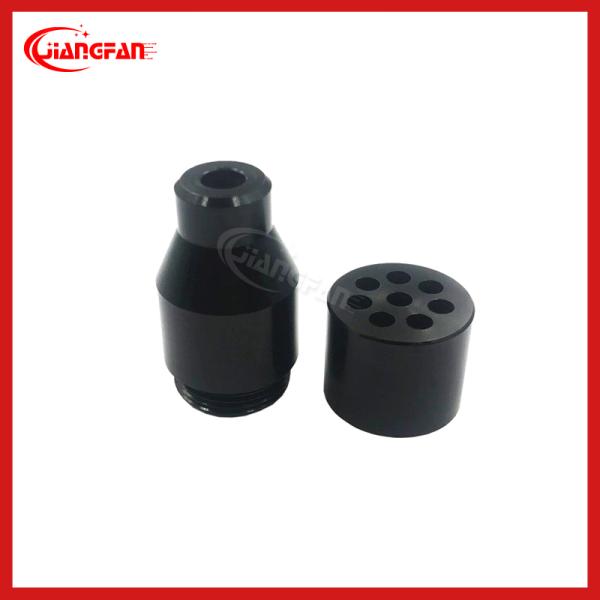

FZQ-02 bundle splitter-8core

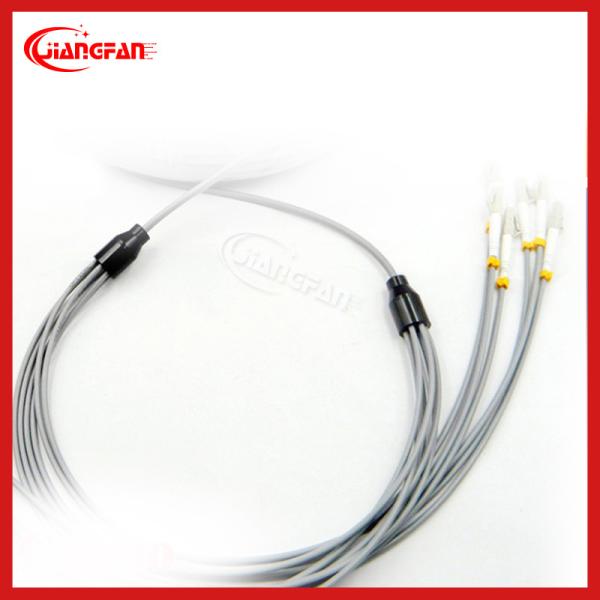

6 core breakout kits copper photoelectric composite cables and FTTH cables spary molding fan out kit

Material available:stainless steel/aluminum alloy/copper/iron/POM

Surface treatment:anodizing,electroplating,spray molding,passivation,laser laser LOGO

Color:conventional color is blank,sliver white,customizable in any other color.It is suitable for all round indoorcables,outdoor cables,waterproof cables,armored cables,photoelecric composite cables and FTTH cables.

Accessories:heat shrinkable tube,glue,protective sleeve,fixing ring,screw,spanner.

Application:

  • Bunch cable branch
  • Armored fiber optic cable branch
  • Field optical cable branch
  • Various optical/cable branch solutions

Features:

  • Material non-metal black
  • POM material
  • High temperature resistant to ROHS
  • Fast and easy fixing

Product structure dimension drawing:

Spray Molding 6 Core Fiber Breakout Kits for Copper Photoelectric Composite FTTH Cables

FZQ-02 Specifications:

Number Product number φOD x L ID 2 core cable dia product material
1 FZQ-02-01 12*26 2core2.0 3-7mm Steel/Aluminum/Copper/Plastic
2 FZQ-02-02 15*.35 2core3.0 3-7mm Steel/Aluminum/Copper/Plastic
3 FZQ-02-03 15*.35 4core3.0 3-7mm Steel/Aluminum/Copper/Plastic
4 FZQ-02-04 15*.35 4core3.0 3-7mm Steel/Aluminum/Copper/Plastic
5 FZQ-02-05 17*39 6core3.0 3-10mm Steel/Aluminum/Copper/Plastic
6 FZQ-02-06 17*39 8core3.0 3-10mm Steel/Aluminum/Copper/Plastic
7 FZQ-02-07 18*40 12core3.0 3-12mm Steel/Aluminum/Copper/Plastic
8 FZQ-02-08 26*55 24core3.0 3-12mm Steel/Aluminum/Copper/Plastic


FZQ-02 product ordering information:

Core No. OD2

Core Dia OD2

OD

Cable Dia

OD1

Product Dia

L

Product Lenths

material
1 2core 1 0.9mm 1 3.0mm 1 10mm 1 20mm 1 POM
2 4core 2 1.6mm 2 5.0mm 2 12mm 2 35mm 2 Aluminum alloy
3 6core 3 2.0mm 3 7.0mm 3 14mm 3 43mm 3 copper
4 8core 4 3.0mm 4 Other 4 18mm 4 50mm 4 Stainless steel
5 12core 5 Other 5 Other 5 Other 5 Other
6 24core
7 Other

Spray Molding 6 Core Fiber Breakout Kits for Copper Photoelectric Composite FTTH Cables

Spray Molding 6 Core Fiber Breakout Kits for Copper Photoelectric Composite FTTH Cables

Spray Molding 6 Core Fiber Breakout Kits for Copper Photoelectric Composite FTTH Cables

Spray Molding 6 Core Fiber Breakout Kits for Copper Photoelectric Composite FTTH Cables

Spray Molding 6 Core Fiber Breakout Kits for Copper Photoelectric Composite FTTH Cables

Spray Molding 6 Core Fiber Breakout Kits for Copper Photoelectric Composite FTTH Cables

Spray Molding 6 Core Fiber Breakout Kits for Copper Photoelectric Composite FTTH Cables

Spray Molding 6 Core Fiber Breakout Kits for Copper Photoelectric Composite FTTH Cables

  • Flat cable spliter

This product is suitable for the ODF tail fiber,MPO/MTP tail fiber,WDM optical switch and PLC divider indoor bare flat with cable,fiber optic fiber with cable branch fan oput schem,used in fixed 900 microns,20mm,skin FTTH cable protection sleeve.​

Spray Molding 6 Core Fiber Breakout Kits for Copper Photoelectric Composite FTTH Cables

  • productive sleeve:PVC,hytrel,FRP,stainless steel

Spray Molding 6 Core Fiber Breakout Kits for Copper Photoelectric Composite FTTH Cables

  • CNC custom maching

Spray Molding 6 Core Fiber Breakout Kits for Copper Photoelectric Composite FTTH Cables

Spray Molding 6 Core Fiber Breakout Kits for Copper Photoelectric Composite FTTH Cables
Spray Molding 6 Core Fiber Breakout Kits for Copper Photoelectric Composite FTTH Cables
