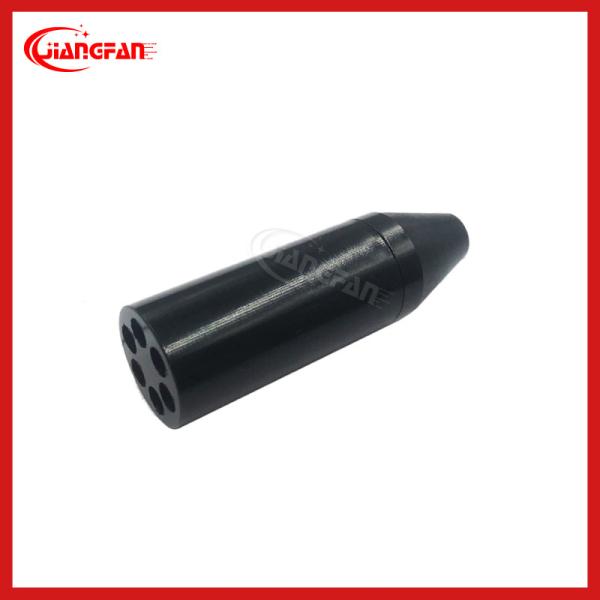

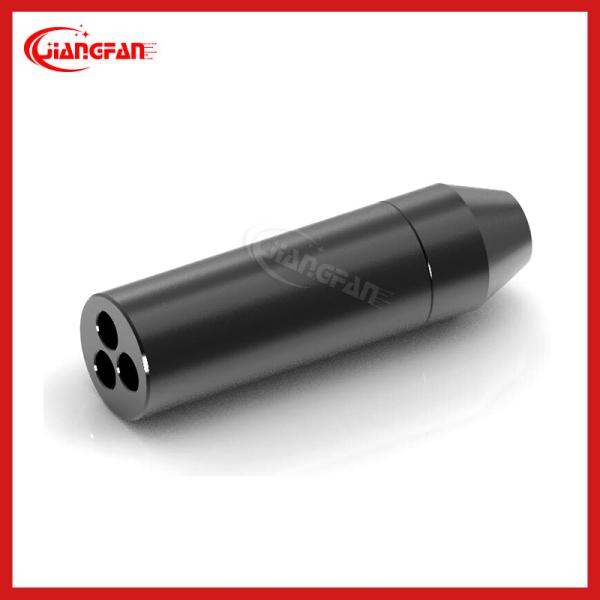

FZQ-01 Optical cable splitter

fiber optic fan out kit ,FZQ-01bundle splitter,cable dia 3-7mm,2/4/6/8/12/24core,armored fiber optic cable,plastic hose

Product application:

it is used to fix the connection between branch protection tube and optical cable, protect the optical fiber with diameter less than 0.5mm from accidental breaking and damage, make the product tensile resistance, bending resistance, more stable optical fiber data, safe and firm, and beautiful product appearance.

Usage:

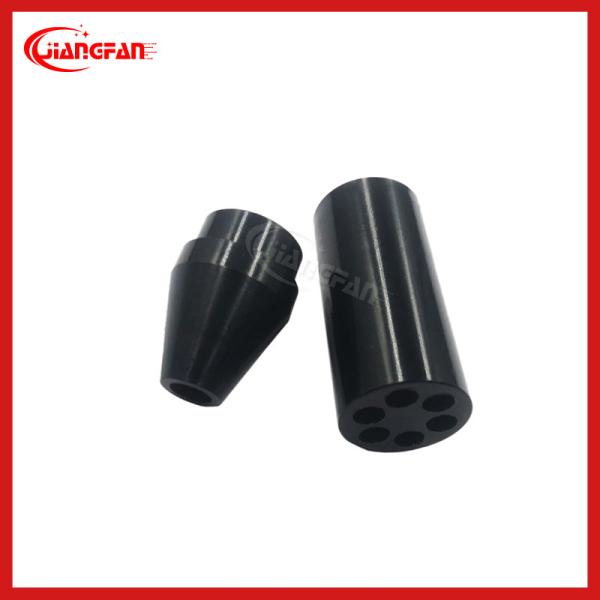

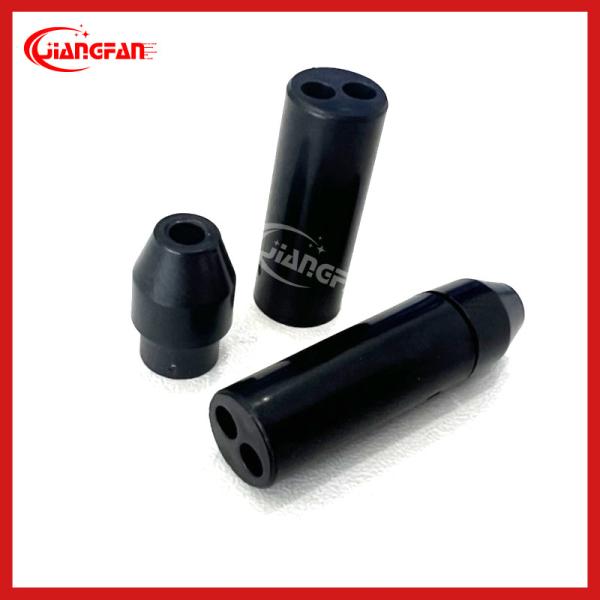

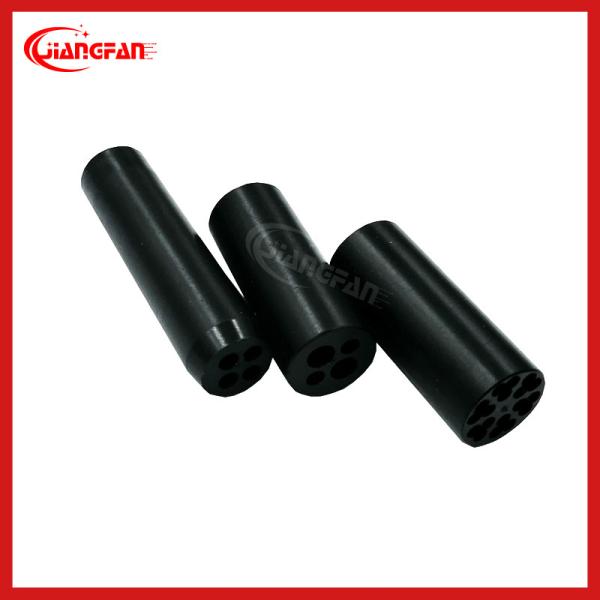

The product components are composed of branch end, main body and optical cable end (different product models and different number of components). The branch end is the accessory of fixed protective tube, and the optical cable end is the component of fixed optical cable. Fixing methods: generally, there are metal ring fixing, glue filling, extrusion deformation and other fixing methods.

Product ordering:

You can choose according to our specification table. If you don't choose the right product! We can design and customize production according to customer requirements.

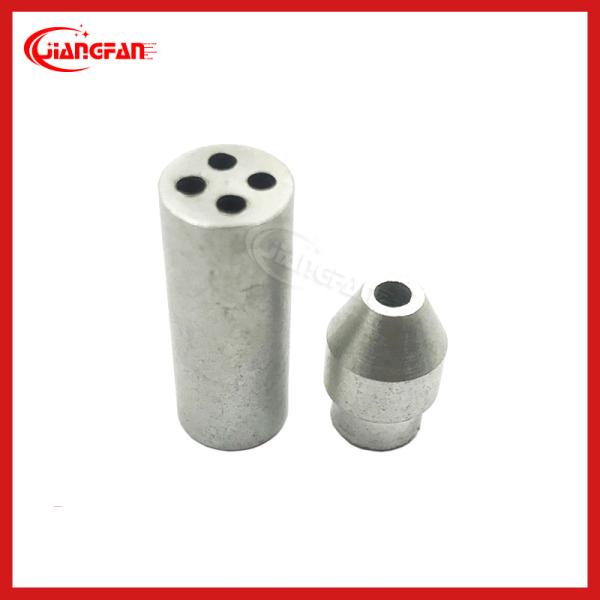

Material available:stainless steel/aluminum alloy/copper/iron/POM

Surface treatment:anodizing,electroplating,spray molding,passivation,laser laser LOGO

Color:conventional color is blank,sliver white,customizable in any other color.It is suitable for all round indoorcables,outdoor cables,waterproof cables,armored cables,photoelecric composite cables and FTTH cables.

Accessories:heat shrinkable tube,glue,protective sleeve,fixing ring,screw,spanner

Application:

• Bunch cable branch
• Armored fiber optic cable branch
• Field optical cable branch
• Various optical/cable branch solutions

Features:

• Material non-metal black
• POM material
• High temperature resistant to ROHS
• Fast and easy fixing

Product structure dimension drawing:

Product specification diagram:

FZQ-01 Specifications:

FZQ-01 product ordering information:
