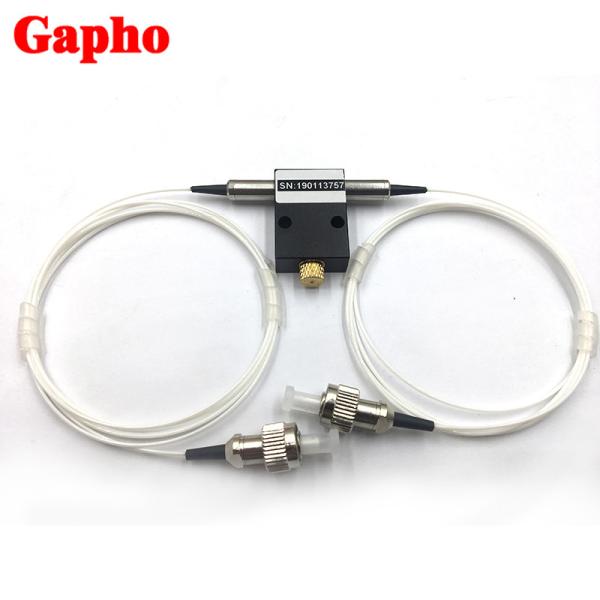

FC / SC / ST / LC In Line Variable Attenuator Mechanical 0.8-60db Optical Fiber 980nm
FC / SC / ST / LC In Line Variable Attenuator Mechanical 0.8-60db Optical Fiber 980nm
FC / SC / ST / LC In Line Variable Attenuator Mechanical 0.8-60db Optical Fiber 980nm
FC / SC / ST / LC In Line Variable Attenuator Mechanical 0.8-60db Optical Fiber 980nm
FC / SC / ST / LC In Line Variable Attenuator Mechanical 0.8-60db Optical Fiber 980nm
FC / SC / ST / LC In Line Variable Attenuator Mechanical 0.8-60db Optical Fiber 980nm
FC / SC / ST / LC In Line Variable Attenuator Mechanical 0.8-60db Optical Fiber 980nm
FC / SC / ST / LC In Line Variable Attenuator Mechanical 0.8-60db Optical Fiber 980nm
FC / SC / ST / LC In Line Variable Attenuator Mechanical 0.8-60db Optical Fiber 980nm
FC / SC / ST / LC In Line Variable Attenuator Mechanical 0.8-60db Optical Fiber 980nm
FC / SC / ST / LC In Line Variable Attenuator Mechanical 0.8-60db Optical Fiber 980nm
FC / SC / ST / LC In Line Variable Attenuator Mechanical 0.8-60db Optical Fiber 980nm
Specifications
Brand Name :
GAPHO
Model Number :
Variable Optical Attenuator
Place of Origin :
China
MOQ :
50
Price :
negotiate
Payment Terms :
L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability :
10000
Delivery Time :
7-10 day
Packaging Details :
Carton,pearl cotton,bubble bag,plastic bag
Operating Wavelength :
980nm
Insertion Loss :
Typ:0.8 Max:0.9
Attenuation range :
0.8~60dB
Fiber Length :
≥1.0m
Operation Temperature :
-20~+70
Storage Temperature :
-40～+85
Dimension mm 26x16x8 :
26x16x8
Description
Adjustable Optical Attenuator
Description
Fiber optic attenuator is a kind of optical device which can reduce optical signal. It’s used to correct optical power performance& optical calibration, and fiber signal attenuation, to ensure a stable link in network, and make optical power to required level.
Features
• Low raw loss
• High accuracy
• Wide attenuation range
• Small size
application
• Optical passive component testing
• Optical laboratory use
• Fiber system testing

Performance

parameter
Wavelength nm

980nm
Bandwidth nm

±40
Insertion loss dB

Typ :0.8 Max:0.9
Attenuation range dB

0.8~60
PDL dB

≤0.1
Return loss dB

≥35
Attenuation accuracy dB

≤0.02
Fiber Type

Hi1060
Connector type

FC SC LC or customize
Fiber length m

≥1.0
Transmission power mw

≤500
temperature ℃

-20～+70
Storage temperature ℃

-40～+85
Dimensions mm

26x16x8

Product Ordering Information:

FC / SC / ST / LC In Line Variable Attenuator Mechanical 0.8-60db Optical Fiber 980nm

FC / SC / ST / LC In Line Variable Attenuator Mechanical 0.8-60db Optical Fiber 980nm

FC / SC / ST / LC In Line Variable Attenuator Mechanical 0.8-60db Optical Fiber 980nm

FC / SC / ST / LC In Line Variable Attenuator Mechanical 0.8-60db Optical Fiber 980nm

FC / SC / ST / LC In Line Variable Attenuator Mechanical 0.8-60db Optical Fiber 980nm

package&shipping

We can provide packing according to customer's requirement, quantity, weight and volume.

Our Services

We can provide customized products for customers. We only need to provide requirements, samples, specifications, drawings, etc.

FC / SC / ST / LC In Line Variable Attenuator Mechanical 0.8-60db Optical Fiber 980nm

FC / SC / ST / LC In Line Variable Attenuator Mechanical 0.8-60db Optical Fiber 980nm

company profile

Shenzhen Jiangfan Communication Equipment Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company promotes production efficiency and reduces product costs through continuous technological innovation and new process applications.
The company's high-quality products, reasonable prices, and accurate delivery date to cooperate with customers.

Shenzhen Jiangfan Communication Equipment Co., Ltd. is a comprehensive enterprise specializing in design, development, production and processing:
The company has processing equipment: plastic injection molding machine, CNC machining center, CNC lathe, sheet metal bending, laser, riveting, polishing machine, ultrasonic, milling machine, wire cutting, punching machine, surface grinder, quality control equipment, projector, micrometer, ring gauge Product control degree, etc. We have rich experience in supporting production, high quality control, high efficiency, and high-quality after-sales service. The company has an enterprise team with professional skills and dedication and 8 years of manufacturing experience. The company has established long-term and stable cooperative relations with many scientific research units, research universities .

FC / SC / ST / LC In Line Variable Attenuator Mechanical 0.8-60db Optical Fiber 980nm

FC / SC / ST / LC In Line Variable Attenuator Mechanical 0.8-60db Optical Fiber 980nm

certification

FC / SC / ST / LC In Line Variable Attenuator Mechanical 0.8-60db Optical Fiber 980nm

FC / SC / ST / LC In Line Variable Attenuator Mechanical 0.8-60db Optical Fiber 980nm
