1xN High Reliability Optical Switches, 1x4 1x8 1x16 1x32 1x64 ,Ring Network ·Remote Monitoring in Optical Network

1×N Optical switch is a kind of functional component, with the ability of switching optical route. In optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/ detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and its component test, outdoor cable test and multi-spot optical sensors monitoring system.

Features

·More Than 128 Channels

·Low Loss and High Reliability

·Parallel Interface (TTL)

·Modularized Design

·Epoxy-free on Optical Path

Applications

·Ring Network

·Remote Monitoring in Optical Network

·Testing of Fiber, Optical Component

Specifications

Parameters Unit GP-OSW1×N
Insertion Loss dB 1 < N ≤ 32 32 < N ≤ 64 64 < N ≤ 128
Type: 0.8 Max: 1.0 Type: 0.8 Max: 1.2 Type: 0.8 Max: 1.3
Wavelength Range nm 850±40 / 1300±40,1550 MM 1260 ~ 1650 SM
Test Wavelength nm 850 / 1300,1550 MM 1310 / 1550 SM
Return Loss dB MM ≥ 30 SM ≥ 50
Crosstalk dB ≥ 70
PDL dB ≤ 0.05
WDL dB ≤ 0.25
TDL dB ≤ 0.25
ER (PM swtich) dB ≥ 16 (PoIarization Maintaining switch)
Repeatability dB ≤ ±0.05
Durability Cycles ≥ 10 Million
Switching Time ms ≤ 10(Sequence switch time of adjacent channel)
Optical Power mW ≤500
Operating Temperature ℃ -5 ~ +70
Storage Temperature ℃ -40 ~ +85
Relative Humidity % 5 ~ 95
Dimension mm 135×40×32 (N≤12) 135×60×32(N≤18) 135×60×38 (N≤32)
150×80×67 (N≤64) 165×100×100 (N≤98) 185×130×130 (N≤128)

Pin Configurations

  • DB-9 male connector (max.1×16)
Pin No. Signal Name I / O Description
1 D0 Input TTL, Channel selection bit 0
2 D1 Input TTL, Channel selection bit 1
3 D2 Input TTL, Channel selection bit 2
4 D3 Input TTL, Channel selection bit 3
5 /RESET Input TTL, Low level reset to channel 0. High level means channel selection bits are effective.
6 /READY Output TTL, Ready (High=Not ready, Low=Ready)
7 ERROR Output TTL, Error (High=Error, Low=No error)
8 GND Input Ground
9 +5VDC Input 5.0±5% VDC Power Supply (max 800mA)
  • DB-15 male connector (max.1×32)
Pin No. Signal Name I / O Description
2 D0 Input TTL, Channel selection bit 0
3 D1 Input TTL, Channel selection bit 1
4 D2 Input TTL, Channel selection bit 2
5 D3 Input TTL, Channel selection bit 3
6 D4 Input TTL, Channel selection bit 4
11 /RESET Input TTL, Low level reset to channel 0. High level means channel selection bits are effective.
7 /READY Output TTL, Ready (High=Not ready, Low=Ready)
8 ERROR Output TTL, Error (High=Error, Low=No error)
1, 9 GND Input Ground
15 +5VDC Input 5.0±5% VDC Digital power supply (max 50mA)
12 VM Input 5.0±5% VDC or 12±5% VDC Drive power supply (max 800mA)
14 ISP Input TTL, For internal firmware upgrade of the module, in the normal mode, please suspended the pin; In the upgrade mode, please send the pin to ground.
10, 13 NA
  • DB-15 male connector (max.1×64)
Pin No. Signal Name I / O Description
2 D0 Input TTL, Channel selection bit 0
3 D1 Input TTL, Channel selection bit 1
4 D2 Input TTL, Channel selection bit 2
5 D3 Input TTL, Channel selection bit 3
6 D4 Input TTL, Channel selection bit 4
10 D5 Input TTL, Channel selection bit 5
11 /RESET Input TTL, Low level reset to channel 0. High level means channel selection bits are effective.
7 /READY Output TTL, Ready (High=Not ready, Low=Ready)
8 ERROR Output TTL, Error (High=Error, Low=No error)
1, 9 GND Input Ground
15 +5VDC Input 5.0±5% VDC Digital power supply (max 50mA)
12 VM Input 5.0±5% VDC or 12±5% VDC Drive power supply (max 800mA)
14 ISP Input TTL, For internal firmware upgrade of the module, in the normal mode, please suspended the pin; In the upgrade mode, please send the pin to ground.
13 NA
  • DB-15 male connector (max.1×128)
Pin No. Signal Name I / O Description
2 D0 Input TTL, Channel selection bit 0
3 D1 Input TTL, Channel selection bit 1
4 D2 Input TTL, Channel selection bit 2
5 D3 Input TTL, Channel selection bit 3
6 D4 Input TTL, Channel selection bit 4
10 D5 Input TTL, Channel selection bit 5
13 D6 Input TTL, Channel selection bit 6
11 /RESET Input TTL, Low level reset to channel 0. High level means channel selection bits are effective.
7 /READY Output TTL, Ready (High=Not ready, Low=Ready)
8 ERROR Output TTL, Error (High=Error, Low=No error)
1, 9 GND Input Ground
15 +5VDC Input 5.0±5% VDC Digital power supply (max 50mA)
12 VM Input 5.0±5% VDC or 12±5% VDC Drive power supply (max 800mA)
14 ISP Input TTL, For internal firmware upgrade of the module, in the normal mode, please suspended the pin; In the upgrade mode, please send the pin to ground.

Channel Selection Table

Max Channel Input Active Channel
/RESET D6 D5 D4 D3 D2 D1 D0
N=16 0 x x x x x x x 0 reset
1 x x x 0 0 0 0 COM → 1
x x x 0 0 0 1 COM → 2
x x x 0 0 1 0 COM → 3
x x x … … … … …
x x x 1 1 1 1 COM → 16
N=128 0 x x x x x x x 0 reset
1 0 0 0 0 0 0 0 COM → 1
0 0 0 0 0 0 1 COM → 2
0 0 0 0 0 1 0 COM → 3
… … … … … … … …
1 1 1 1 1 1 1 COM → 128

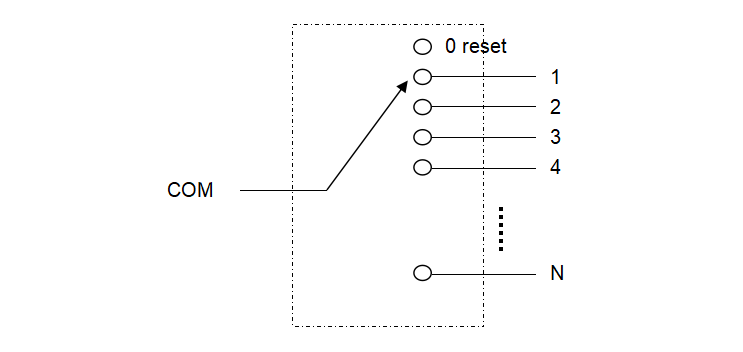

Optical Route

1×N Optical Switch for Testing of Fiber, Optical Component, More Than 128 Channels.1x16 1x32 1x64 1x128

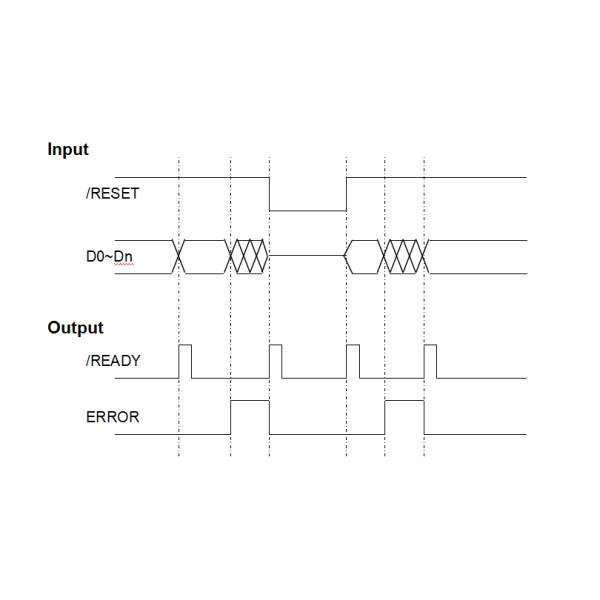

Timing Diagram

1×N Optical Switch for Testing of Fiber, Optical Component, More Than 128 Channels.1x16 1x32 1x64 1x128

Dimension(DBx male head or female head is defined as the actual mark of the element)

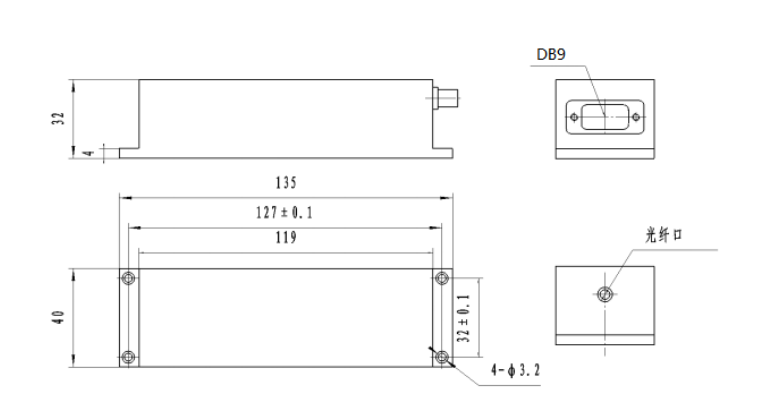

  • Ø 01: 135×40×32-DB9 (N≤12, DB-9 male)

1×N Optical Switch for Testing of Fiber, Optical Component, More Than 128 Channels.1x16 1x32 1x64 1x128

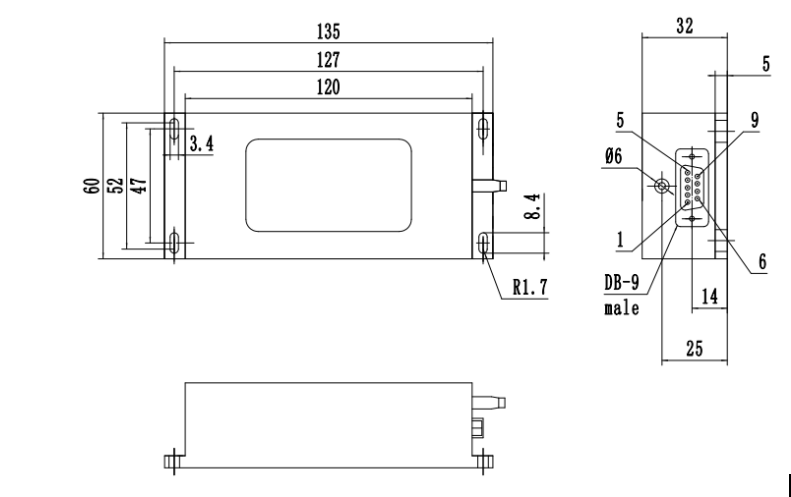

  • Ø 02: 135×60×32-DB9 (N≤16, DB-9 male)
  • Ø 03: 135×60×32-DB15 (N≤18, DB-15 male)

1×N Optical Switch for Testing of Fiber, Optical Component, More Than 128 Channels.1x16 1x32 1x64 1x128

  • Ø 04: 135×60×38-DB15 (N≤32, DB-15 male)

1×N Optical Switch for Testing of Fiber, Optical Component, More Than 128 Channels.1x16 1x32 1x64 1x128

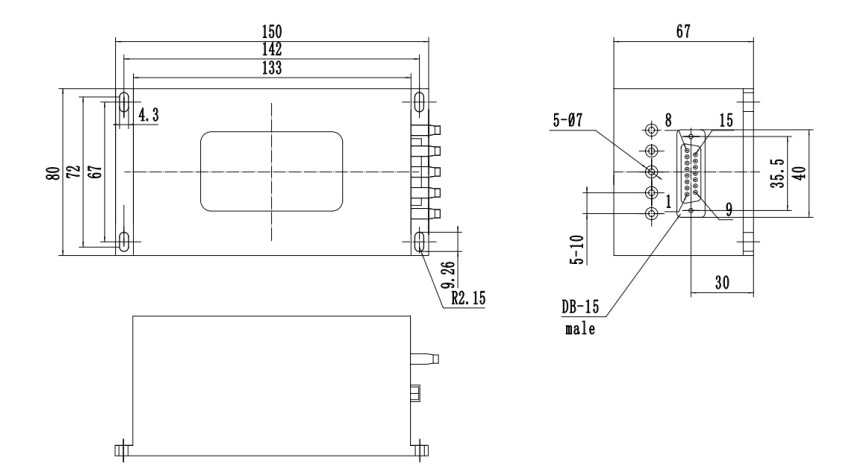

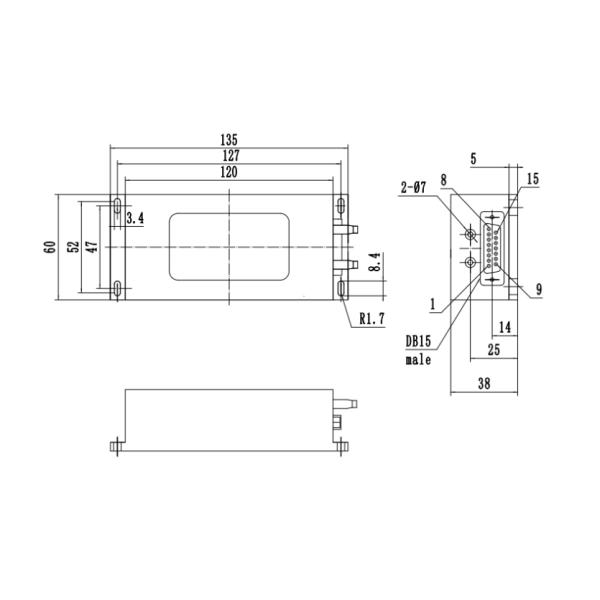

  • Ø 05: 150×80×67-DB15 (N≤64, DB-15 male)

1×N Optical Switch for Testing of Fiber, Optical Component, More Than 128 Channels.1x16 1x32 1x64 1x128

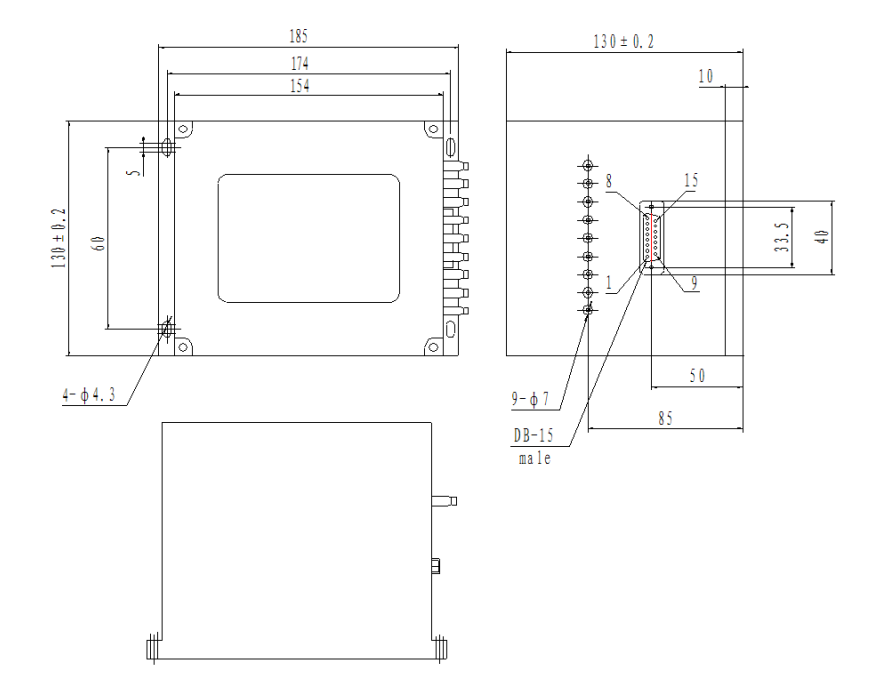

  • Ø 06: 185×130×130-DB15 (N≤128, DB-15 male)

1×N Optical Switch for Testing of Fiber, Optical Component, More Than 128 Channels.1x16 1x32 1x64 1x128

Ordering Information:

General switch : GP-OSW1×N-AB-CD-EF

Polarization maintaining switch : GP-OSW1xN-PM-AB-CD-EF

N A B C D E F
Channel Fiber Type Test Wavelength Tube Type

Fiber Length

(Include connector)

 Connector Dimension
1 ~ 128

SM: SM, 9/125

M5: MM, 50/125

M6: MM, 62.5/125

X: Others

85: 850nm

13: 1310nm

15: 1550nm

1315:1310/1550nm

X:Others

9: 900um

2: 2.0mm

3: 3.0mm

X: Others

05: 0.5m±5cm

10: 1.0m±5cm

15: 1.5m±5cm

X: Others

OO:None

FP: FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

STP: ST/PC

STA: ST/APC

LP: LC/PC

LA: LC/APC

X: Others

01: 135×40×32-DB9

02: 135×60×32-DB9

03: 135×60×32-DB15

04: 135×60×38-DB15

05: 150×80×67-DB15

06: 185×130×130-DB15

X: Others
