FOK-05 6 core 0.9 diameter patch cable splitter 6strand ribbon cable breakout kits

FOK -05 2.0mm ribbon cable breakout kits injection molding processing outdoor cables armored fiber optic cable

product description

Ribbon Fan Out Kits are designed to breakout and manage high fiber count ribbon cables. Each 12-fiber ribbon in cable is routed into individual color-coded tubes for protection and transport into optimized products. The kit includes the cable body, breakout body and adhesive shrink tubing. When ribbon fiber in excess of 144 is required, the High Fiber Ribbon Breakout Box is used in conjunction with the Ribbon Fan Out Kit for up to 864 fibers.

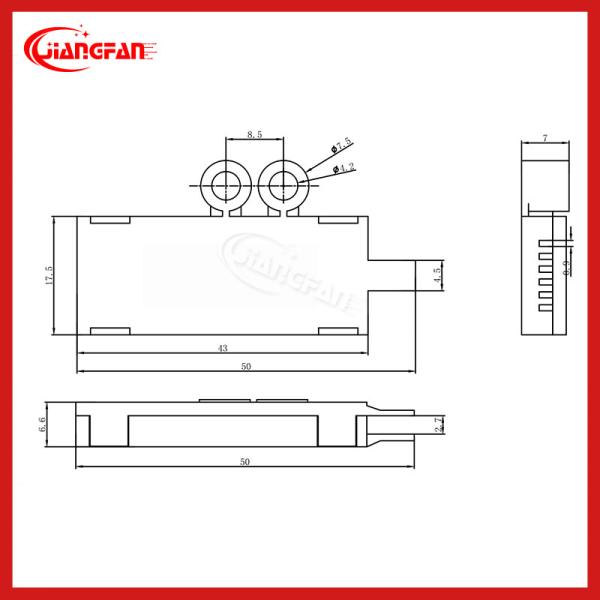

FOK-05 drawing

product material:BS/PBT/PP

production mode: we can provied CNC manching and injection molding processing according to customer's demand.

Production list:Main body of branch,front sleeve orend sleeve,metal predssure ring,heat-shrinkable tube,branch tube,fixed screw rivet.(different types of fittings are differenet)

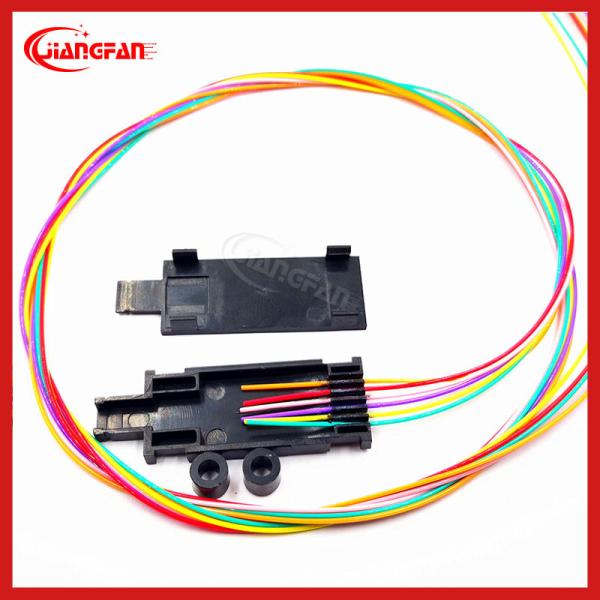

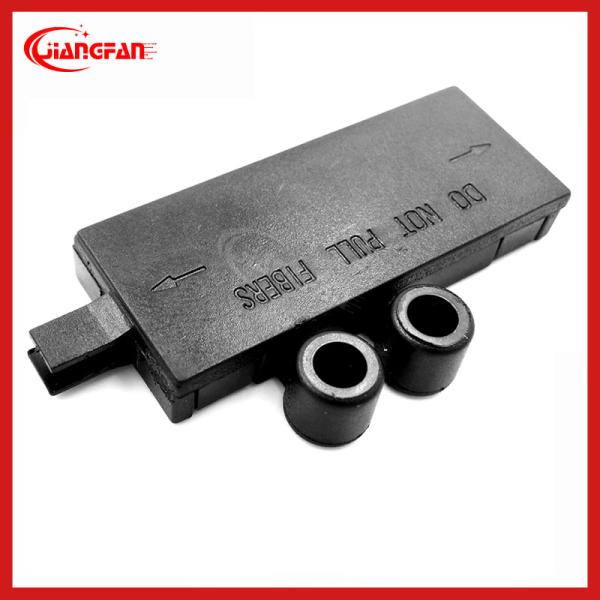

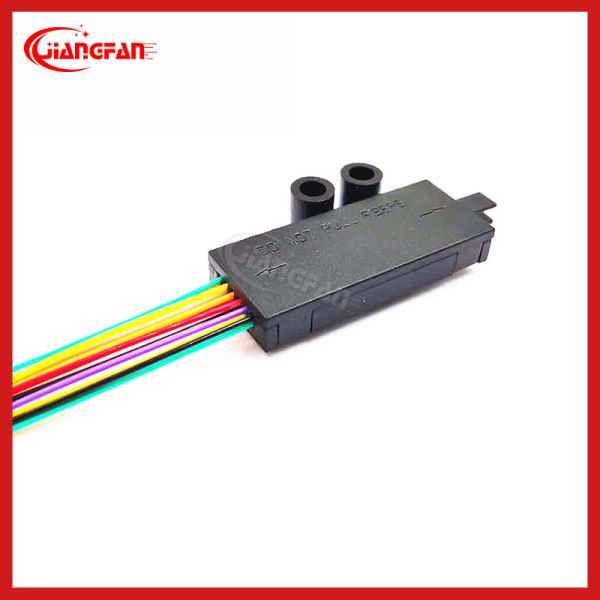

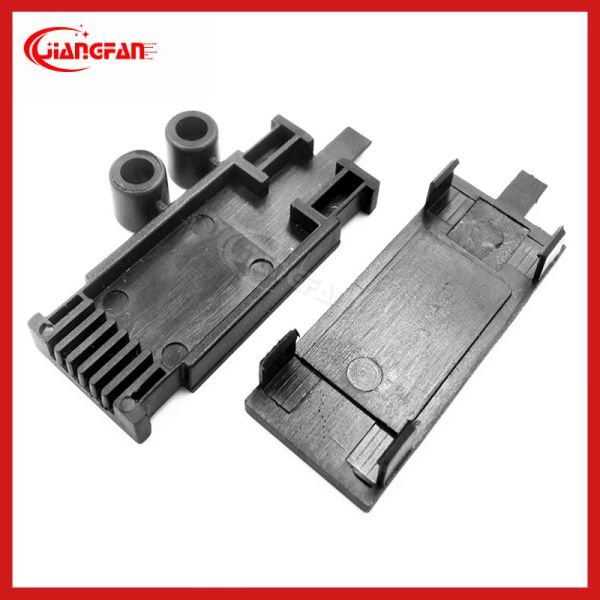

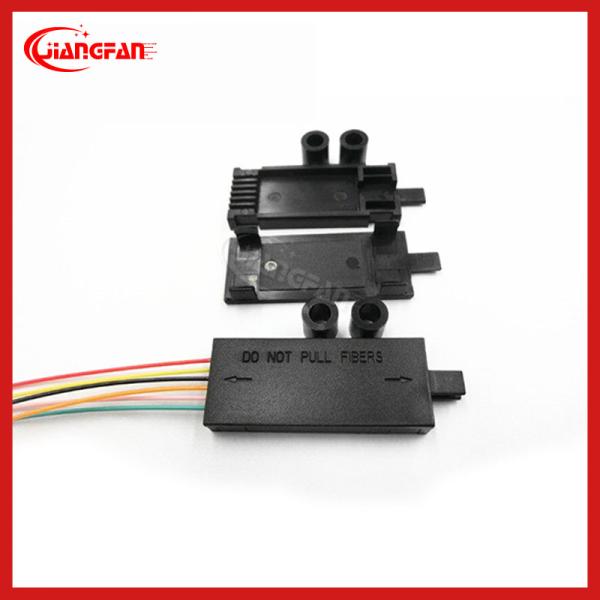

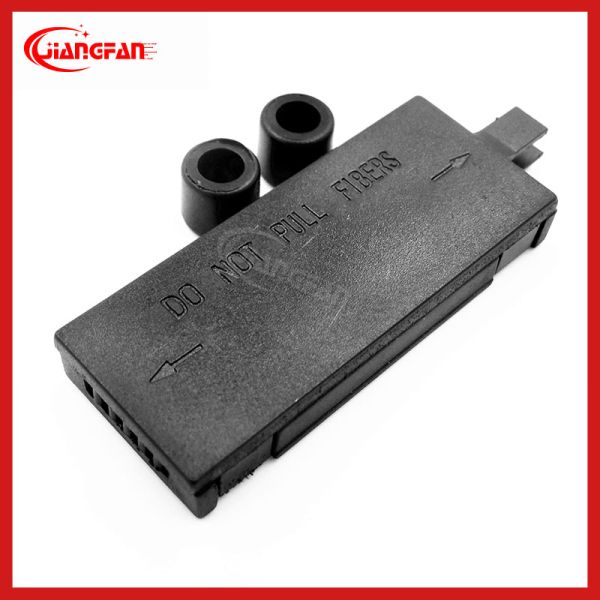

Product Image

Application scenarios

product list

other product

fanout kit provides the ideal solution for breakout operations in the field or in factory. It allows to quickly and easily separate the subunits' bare fiber to single furcation tubings, protecting and allowing for termination. The buffer tubes are color coded for easy fiber identification as defined in ANSI/TIA-598-C, the standard for fiber optic cables color coding. These fanout kits are offered in formats suitable for both loose-tube or ribbon construction, with 6, 12 fiber or 2 subunit management options.

Packaging & Shipping

• According to the customer's requirement, we can provide 200 pieces/bag, 500 pieces/bag, each part is separately packed, not a whole set/bag
• The quotation of this product does not bear transportation costs
• We can provide packing according to customer's requirement, quantity, weight and volume.

FAQ

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q:When our company be established?

A: We started from year 2013

Q: Can you provide samples for customers?

A: Yes, but the shipping will be charged on the customer's account.

Q:Do you offer OEM services?

A: We accept OEM, ODM. Cable sizes and materials can be customized.

Designed specifically to work with Opticonx Xtreme Cassette Module
