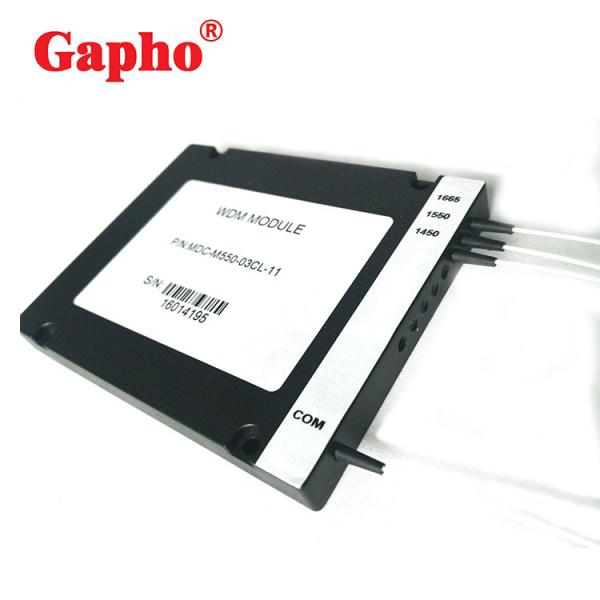

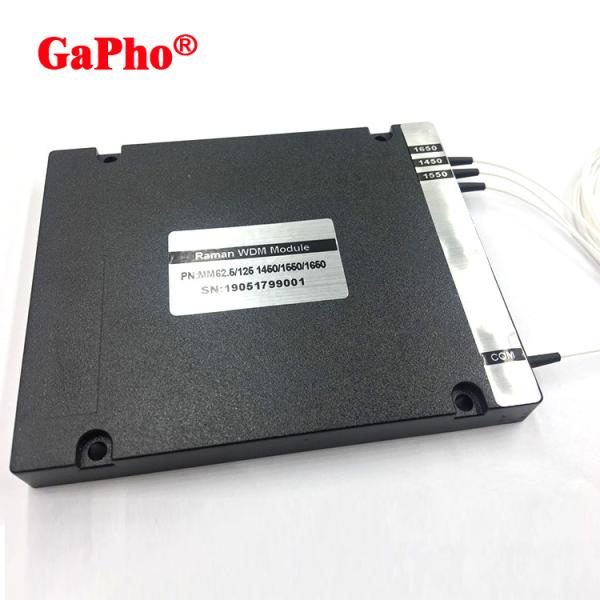

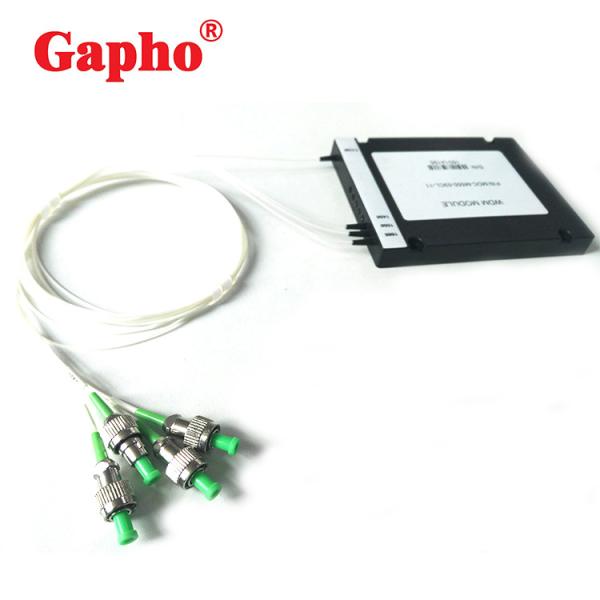

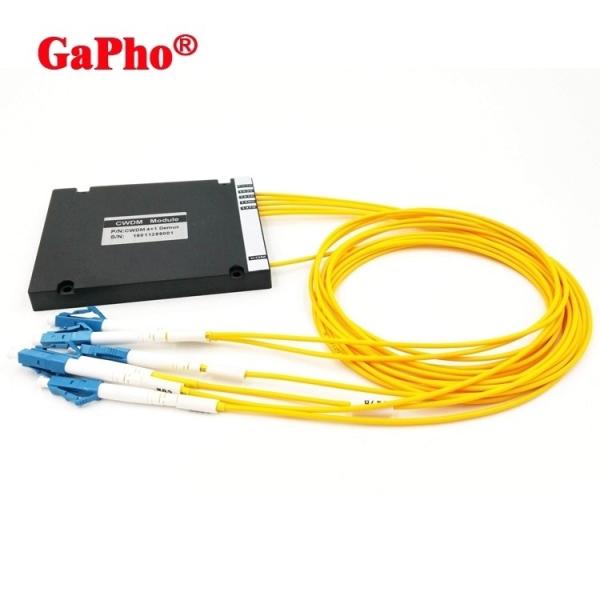

250um Bare Fiber 100Ghz Dense Wavelength Division Multiplexe DWDM FC / APC / UPC
250um Bare Fiber 100Ghz Dense Wavelength Division Multiplexe DWDM FC / APC / UPC
250um Bare Fiber 100Ghz Dense Wavelength Division Multiplexe DWDM FC / APC / UPC
250um Bare Fiber 100Ghz Dense Wavelength Division Multiplexe DWDM FC / APC / UPC
250um Bare Fiber 100Ghz Dense Wavelength Division Multiplexe DWDM FC / APC / UPC
250um Bare Fiber 100Ghz Dense Wavelength Division Multiplexe DWDM FC / APC / UPC
250um Bare Fiber 100Ghz Dense Wavelength Division Multiplexe DWDM FC / APC / UPC
250um Bare Fiber 100Ghz Dense Wavelength Division Multiplexe DWDM FC / APC / UPC
Specifications
Brand Name :
GAPHO
Model Number :
3CH-18CH CWDM Demux
Place of Origin :
China
MOQ :
50
Price :
negotiate
Payment Terms :
T/T, D/A, D/P, T/T, L/C
Supply Ability :
10000
Delivery Time :
7-10 day
Packaging Details :
Carton,pearl cotton,bubble bag,plastic bag
Parameter :
100G Hz
Channel Wavelength(nm) :
1529.55~1561.42(ITU 20~60)
Center Wavelengtth(nm) :
±0.05
Channel passband(@-0.5db bandwidth)(nm) :
＞0.22
Express Channel lsolation(dB) :
＞10
Insertion loss Temperature sensitivity(dB/℃） :
＜0.003
Wavelength Temperature Shifting(nm℃） :
＜0.002
Package Dimension(mm) :
Ø5.5xL34 or Specify
Description

100 G hz Dense Wavelength Division Multiplexe DWDM 250 um Bare fiber FC/APC/UPC

Features

  • low inssertion loss
  • High channel isolation
  • High stability and reliability
  • Epoxy free optical path

Application

  • DWDM Network
  • Wavelength Routing
  • Fiber Optical Amplifier
  • CATV Fiber optic System

Performance Specification

Parameter 100G Hz 200G Hz
Channel Wavelength(nm) 1529.55~1561.42(ITU 20~60)
Center Wavelengtth(nm) ±0.05 ±0.1
Channel passband(@-0.5db bandwidth)(nm) ＞0.22 ≥0.5
Insertion Loss Add/Drop Ch. ＜1.0 ≤0.9
Express Ch. ＜0.4 ≤0.4
Channel Ripple(db) ＜0.4 ≤0.4
Isolation(dB) Adjacent Ch. ＞25 ≥30
Non-Adjacent Ch. ＞35 ≥40
Express Channel lsolation(dB) ＞10 ≥12
Insertion loss Temperature sensitivity(dB/℃) ＜0.003 ＜0.003
Wavelength Temperature Shifting(nm℃) ＜0.002 ＜0.002
Polarization Dependent Loss(dB) ≤0.1 ≤0.1
Polarization Mode Dispersion(ps) ≤0.1 ≤0.1
Directivity(dB) ≥50 ≥50
Return Loss(dB) ≥45 ≥45
Power Handling(mW) ≤300 ≤300
Operating Temperature(℃) 0~+70 0~+70
Storage Temperature -45~+85 -45~+85
Package Dimension(mm) Ø5.5xL34 or Specify Ø5.5xL34 or Specify

Ordering information

DWDM Channel Spacing ITU Channel Pigtail Type Fiber Type Length Connector
1=1Ch 1=100G 21=21Ch 250=250um Bare fiber 1=SMF-28e 1=1M NE=None
2=2Ch 2=200G 22=22Ch 900=900um Loose tube 2=2M FC/APC/UPC
……. ……. 2000=2mm Loose tube …… SC/APC/UPC
X=specify 60=60Ch 3000=3mm Loose tube x=specify LC/APC/UPC
XX=Other


250um Bare Fiber 100Ghz Dense Wavelength Division Multiplexe DWDM FC / APC / UPC

250um Bare Fiber 100Ghz Dense Wavelength Division Multiplexe DWDM FC / APC / UPC

250um Bare Fiber 100Ghz Dense Wavelength Division Multiplexe DWDM FC / APC / UPC

250um Bare Fiber 100Ghz Dense Wavelength Division Multiplexe DWDM FC / APC / UPC

250um Bare Fiber 100Ghz Dense Wavelength Division Multiplexe DWDM FC / APC / UPC

package&shipping

  • Packaging & Shipping

According to the customer's requirement

The quotation of this product does not bear transportation costs

We can provide packing according to customer's requirement, quantity, weight and volume.

  • Our Services

We can provide customized products for customers. We only need to provide requirements, samples, specifications, drawings, etc.

250um Bare Fiber 100Ghz Dense Wavelength Division Multiplexe DWDM FC / APC / UPC

250um Bare Fiber 100Ghz Dense Wavelength Division Multiplexe DWDM FC / APC / UPC

company profile

Shehong Jiangfan Technology Co., Ltd. mainly serves mid-to-high-end scientific research units and production enterprises,
Provide order customization, product development, production OEM, proofing, wholesale. Specialist in retail marketing
business services. The company takes "focusing on quality, serving with heart" as its core value, and hopes that through our professional
Level and unremitting efforts to reshape the quality image of SMEs. Always adhering to the core of user needs,
While focusing on the development of surrounding markets, it provides factory supply services for more than 1,000 small and medium-sized enterprises.
The quality and attentive service has won the trust and praise of many enterprises, and gradually established a public company in the surrounding areas.
Company good brand. We believe that through our continuous efforts and pursuits, we will be able to achieve
Mutual benefit and win-win for small businesses! The company not only provides professional integrated services, but also establishes a complete
A good after-sales service system can provide help for the problems and difficulties encountered in the development of the enterprise.

250um Bare Fiber 100Ghz Dense Wavelength Division Multiplexe DWDM FC / APC / UPC

FAQ

Q:What is your order quantity?

A: usually 1 piece, if you have detailed requirements, we can coordinate.

Q: What is your delivery date?

A: The delivery date is approximately 3-5days, depending on the order quantity.

Q: Can you provide samples for customers?

A: Yes, but the shipping will be charged on the customer's account.

Q: What is your price?

A: We offer competitive price with good performance.

Q:Do you offer OEM services?

A: We accept OEM, ODM. Cable sizes and materials can be customized.
