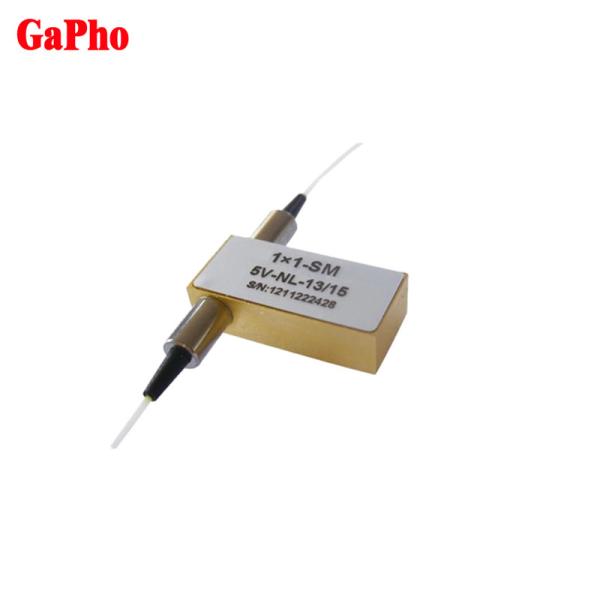

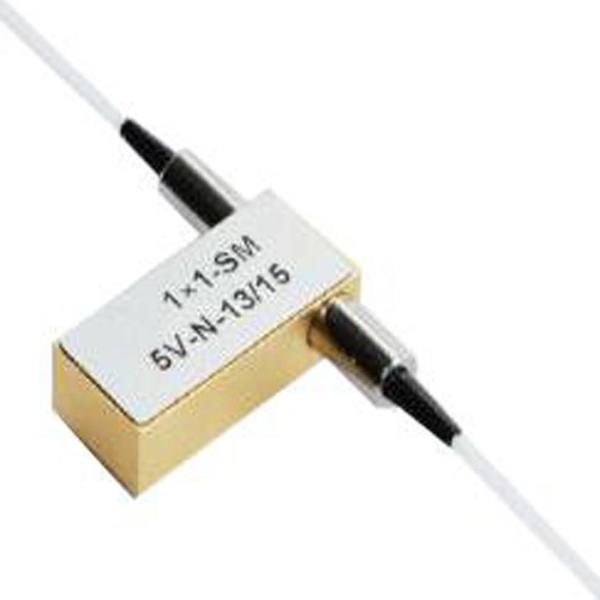

FC SC LC 1x1 Fiber Optical Switch 1310 / 1550nm With 0.9um Loose Tube
FC SC LC 1x1 Fiber Optical Switch 1310 / 1550nm With 0.9um Loose Tube
FC SC LC 1x1 Fiber Optical Switch 1310 / 1550nm With 0.9um Loose Tube
FC SC LC 1x1 Fiber Optical Switch 1310 / 1550nm With 0.9um Loose Tube
Specifications
Brand Name :
GAPHO
Model Number :
1x1 A Fiber optic switch
Place of Origin :
China
MOQ :
50
Price :
negotiate
Payment Terms :
T/T, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000
Delivery Time :
7-10 day
Packaging Details :
Carton,pearl cotton,bubble bag,plastic bag
PDL :
≤0.05 dB
WDL :
≤0.25 dB
TDL :
≤0.25 dB
Repeatability :
≤±0.02 dB
Power supply :
3.0 or 5.0 v
Switch Time :
≤8
Description

1x1 optical switch 1310/1550 nm with 0.9 Loose Tube FC SC LC

FC SC LC 1x1 Fiber Optical Switch 1310 / 1550nm With 0.9um Loose Tube

FC SC LC 1x1 Fiber Optical Switch 1310 / 1550nm With 0.9um Loose Tube

specification

Parameters OSW-1×1
Wavelength Range nm 650～1310 1260～1670
Testing Wavelength nm 650/780/850/980/1064/1310 1310/1490/1550/1625/1650
Insertion Loss dB Typ:0.6,Max:1.0 Typ:0.5 ,Max:0.8
Return Loss dB ≥30 ≥50
Crosstalk dB ≥35 ≥55
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Power supply v 3.0 or 5.0
Lifetime Cycle ≥107
Switch Time ms ≤8
Transmission Power mW ≤500
Operation Temperature ℃ -40～+85
Storage Temperature ℃ -40～+85
Weight g 16
Dimension mm (L)27×(W)12.6×(H)8.5(±0.2)

optical route

FC SC LC 1x1 Fiber Optical Switch 1310 / 1550nm With 0.9um Loose Tube

pins

Type Optical Route Electric Drive Status Sensor
1×1 Pin 1 Pin 5 Pin 6 Pin 10 Pin 2-3 Pin 3-4 Pin 7-8 Pin 8-9
Latching Light close -- -- GND V+ Close Open Open Close
P1-P2 V+ GND -- -- Open Close Close Open

Non

-latching

 Light close -- -- -- -- Close Open Open Close
P1-P2 V+ -- -- GND Open Close Close Open

Ordering Information:OSW-8-SM-850-AC/DC-FC-1U

A B C D E F G
Mode Wavelength Voltage Control Model Fiber Diameter Fiber Length Connector

SM:9/125um

M5: 50/125um

M6: 62.5/125um

85: 850nm

13: 1310nm

14: 1490nm

15: 1550nm

162: 1625nm

165: 1650nm

13/15:1310/1550nm

3: 3V

5: 5V

L: Latching

N:Non-Latching

25:250um

90:900um

20:2.0mm

30: 3.0mm

05:0.5m

10:1.0m

15:1.5m

OO:None

FP: FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

LP: LC/PC

LA: LC/APC

dimension

FC SC LC 1x1 Fiber Optical Switch 1310 / 1550nm With 0.9um Loose Tube

Electrical parameters

Voltage current Resistor
5V Latching 4.5~5.5 36~44mA 125Ω
5V Non-Latching 4.5~5.5 26~32mA 175Ω
3V Latching 2.7~3.3 54~66mA 50Ω
3V Non-Latching 2.7~3.3 39~47mA 70Ω

FC SC LC 1x1 Fiber Optical Switch 1310 / 1550nm With 0.9um Loose Tube

FC SC LC 1x1 Fiber Optical Switch 1310 / 1550nm With 0.9um Loose Tube

company prolife

FC SC LC 1x1 Fiber Optical Switch 1310 / 1550nm With 0.9um Loose Tube

We are specialized in providing solutions for optical cable, packaging solutions for optical devices, and manufacturing of other electronic equipment parts. Our products are widely used in optical communication, electronics, medical care, oil pipeline, audio industrial control, radio, instrumentation and other industries.We have a good design and production team to provide customers with high-quality, reliable and efficient products.
In the process of cooperation, our innovation and service awareness are well received by our customers.
The company specializes in the production of optical communication equipment, optical devices, optical jumpers, distribution boxes, distribution frame.Our company
1.Machinery department: provide precision machinery processing, sheet metal parts processing, plastic injection molding processing, processing and manufacturing supporting various parts.
2. Optical communication department: provide customized processing of optical devices such as optical jumper, optical module, optical switch, wave divider, attenuator adapter, coupler, optical splitter, circulator, isolator, collimator, optical amplifier, etc.

  • Packaging & Shipping
  • FC SC LC 1x1 Fiber Optical Switch 1310 / 1550nm With 0.9um Loose Tube

​FC SC LC 1x1 Fiber Optical Switch 1310 / 1550nm With 0.9um Loose Tube

According to the customer's requirement.

We can provide packing according to customer's requirement, quantity, weight and volume.

  • Our Services

We can provide customized products for customers. We only need to provide requirements, samples, specifications, drawings, etc.

  • FAQ

Q:Can you design and customize production according to my requirements

A:Yes, you can tell us your requirements and ideas, we can design drawings, or provide samples, 2D floor plans or 3D drawings (support proe, solidwork, core, Auto CAD, DXF, DWG, step file formats).

Q: Are you trading company or manufacturer ?

A: We are factory.
