19-inch standrad 1U Rack 1x16 optical switch single mode and multimode B 1x16 rack optical switch.pptx

Description:

Optical switch is an optical path control device, which plays the role of controlling the optical path and converting the optical path. It plays an important role in optical communication applications. Optical switches are mainly used in: multi-channel optical monitoring in optical transmission systems, automatic switching of LAN multi-light sources/detectors, and optical sensing multi-point dynamic monitoring systems; optical test systems for optical fibers, optical devices, networks and field engineering Optical cable testing; optical device assembly and adjustment. The 1×N optical switch can switch one input routing to one of the N output routings.

Features:

• It has the characteristics of small insertion loss and fast switching speed.
• Using LCD display, very intuitive display data, convenient for users to operate.
• Automatic scanning can be set, and the maximum switching interval is 99 hours, 59 minutes and 59 seconds; the "start channel" and "end channel" of the scan can also be set.
• The "device address" can be set, which is convenient for users to use one serial port to control multiple optical switch instruments when the serial port resources are tight.
• The baud rate of serial communication can be set according to the actual situation. The baud rate that can be set is 1200, 2400, 4800, 9600, 19200, 57600 and 115200.

Specifications:

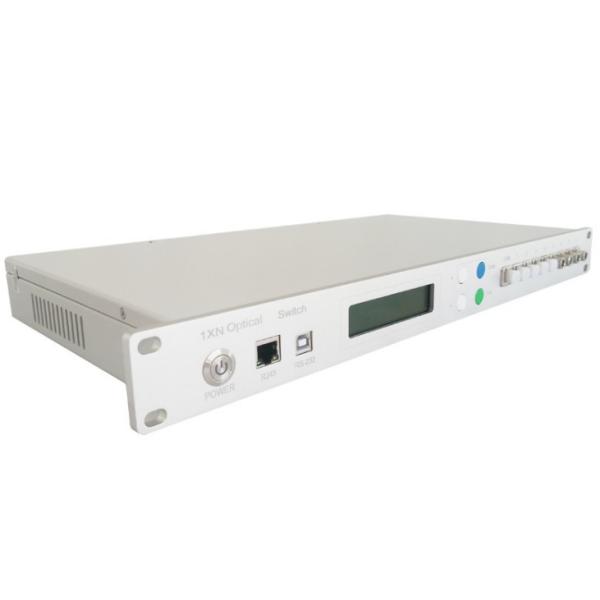

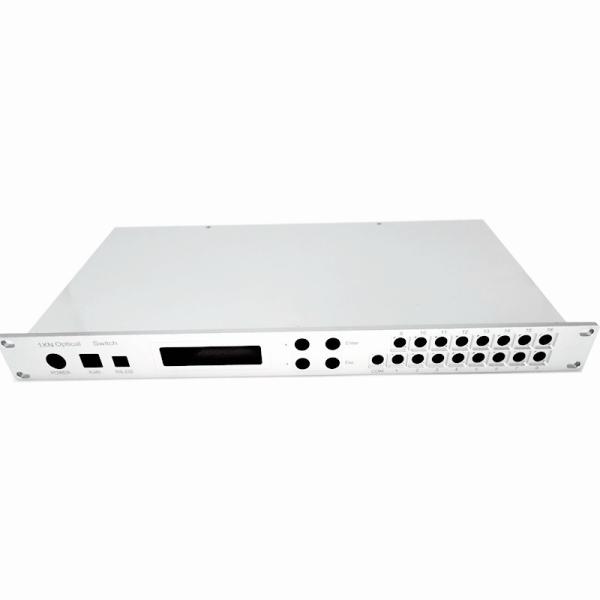

Panel to Explain

Power: Master switch of power supply
RJ45:Communications network management interface ;
RS-232: Rs- serial interface ; RS232 serial communication interface;
LCD:Devices that display information directly;
▲: Key to move up; ▼: Key to move down;
Enter: Key to determine;
Esc: Key to cancel;
com,1~16:Fiber interface;

AC:100~240V: P o w e r c o r d i n t e r f a c e ;
