CATV Fiber Optical System CWDM Module 1271-1611nm With High Channel Isolation
CATV Fiber Optical System CWDM Module 1271-1611nm With High Channel Isolation
CATV Fiber Optical System CWDM Module 1271-1611nm With High Channel Isolation
CATV Fiber Optical System CWDM Module 1271-1611nm With High Channel Isolation
CATV Fiber Optical System CWDM Module 1271-1611nm With High Channel Isolation
CATV Fiber Optical System CWDM Module 1271-1611nm With High Channel Isolation
Specifications
Brand Name :
GAPHO
Place of Origin :
China
MOQ :
100
Price :
USD
Payment Terms :
T/T, Western Union
Supply Ability :
1000 Per month
Delivery Time :
7-10 day
Packaging Details :
Carton
Central Wavelength(nm) :
1271,1291,1311...1551,1571,1591,1611
Channel space(nm) :
20
Channel bandwidth(nm) :
λc ± 6.5
Channel flatness(dB) :
≤0.4
Channel uniformity(dB) :
≤1.0
Return loss(dB) :
≥50
Waveloength thermal stability(nm/℃) :
≤0.003
Insertion loss thermal stability(dB/℃) :
≤0.005
Operating temperature(℃) :
0~+70
Storagae tempertature(℃) :
-40~+85
Description

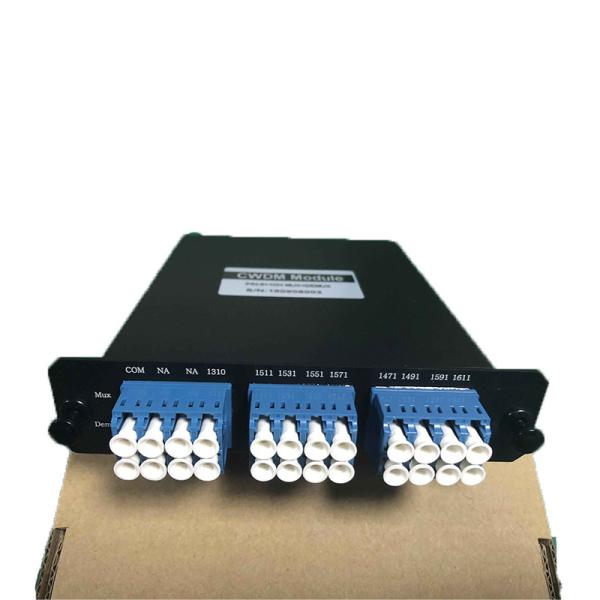

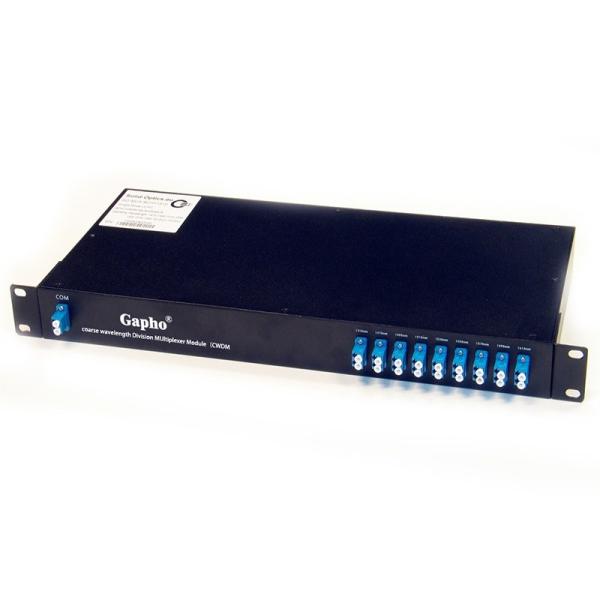

CWDM Module for CATV Fiberoptical System with low insertion loss and high channel isolation

Descreption:

Coarse Wave Division Multiplexing (CWDM) modules combine or split up to 18 wavelengths into a single fiber. CWDM technology uses ITU standard 20nm spacing between the wavelengths, from 1271nm to 1611nm.
Our CWDM module has 4 to 18 channels. The central wavelength of each channel is specified to one of the ITU-T grid wavelengths.The module also has high thermal stability to ensure reliable performance under different environment.

Features:

  • Based on proven thin-film filter technology
  • Low insertion loss
  • High channel isolation
  • High stability and reliability

Applications:

  • CWDM metro and access broadband networks
  • CATV systems
  • Fiber optic amplifiers
  • CWDM system

Specification:

Parameter 4Channel 8Channel 16Channel
Central Wavelength(nm) 1271,1291,1311...1551,1571,1591,1611
Channel space(nm) 20
Channel bandwidth(nm) λc ± 6.5
Channel flatness(dB) ≤0.4
Insertion Loss(dB) ≤2.0 ≤3.0 ≤5.0
Demux Isolation(dB) Adjacent channel ≥30
Non-adjacent channel ≥40
Mux Isolation(dB) Adjacent channel ≥15
Non-adjacent channel ≥15
Channel uniformity(dB) ≤1.0
Driectivivty (dB) ≥55
Return loss(dB) ≥50
PDL(dB) ≤0.15 ≤0.20
Waveloength thermal stability(nm/℃) ≤0.003
Insertion loss thermal stability(dB/℃) ≤0.005
Power handing (mW) ≤500
Operating temperature(℃) 0~+70
Storagae tempertature(℃) -40~+85
Dimensions(LxWxH)(mm) 100x80x10(ABS) 141x115x18(ABS)
110x95x7.5(Metal)

Ordering information:

CATV Fiber Optical System CWDM Module 1271-1611nm With High Channel Isolation

CATV Fiber Optical System CWDM Module 1271-1611nm With High Channel Isolation

CATV Fiber Optical System CWDM Module 1271-1611nm With High Channel Isolation

CATV Fiber Optical System CWDM Module 1271-1611nm With High Channel Isolation

CATV Fiber Optical System CWDM Module 1271-1611nm With High Channel Isolation
