4 Channels 1260-1360nm LAN WDM MUX DEMUX Single Fiber For Access Networks
4 Channels 1260-1360nm LAN WDM MUX DEMUX Single Fiber For Access Networks
4 Channels 1260-1360nm LAN WDM MUX DEMUX Single Fiber For Access Networks
4 Channels 1260-1360nm LAN WDM MUX DEMUX Single Fiber For Access Networks
4 Channels 1260-1360nm LAN WDM MUX DEMUX Single Fiber For Access Networks
4 Channels 1260-1360nm LAN WDM MUX DEMUX Single Fiber For Access Networks
4 Channels 1260-1360nm LAN WDM MUX DEMUX Single Fiber For Access Networks
4 Channels 1260-1360nm LAN WDM MUX DEMUX Single Fiber For Access Networks
4 Channels 1260-1360nm LAN WDM MUX DEMUX Single Fiber For Access Networks
4 Channels 1260-1360nm LAN WDM MUX DEMUX Single Fiber For Access Networks
Specifications
Brand Name :
GAPHO
Place of Origin :
China
MOQ :
100
Price :
negotiate
Payment Terms :
T/T
Supply Ability :
10000 per month
Delivery Time :
7-10 day
Packaging Details :
Carton
Wavelength range :
1260-1360 nm
Channel centers :
1295.56/1300.05/1304.58/1309.14 nm
Channels :
4 CH
Fiber type :
SMF-28e with 0.9mm
Connector Type :
LC/UPC
Package dimensions (L x W x H) :
80 x 60 x 12 mm
Channel insertion loss :
≤1.5 dB
Isolation (adjacent channel) :
≥25 dB
Isolation (non-adjacent channel) :
≥40 dB
Storage temperature :
-40~ +85 °c
Operating temperature range :
-5 ~ 70 °c
Polarization dependent loss :
≤0.2 dB
Description

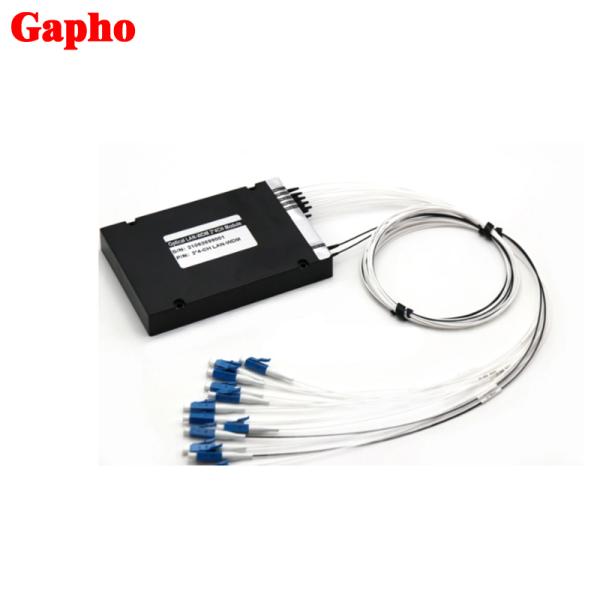

4 Channels 1260-1360nm, Single Fiber LAN-WDM Mux Demux, Side-A, ABS Pigtailed Module, LC/UPC for Access networks

Description:

Single Fiber LAN-WDM Mux Demux is usually used for 5G fronthaul network where wavelengths are packed tightly together over the O-band, up to 8 wavelengths in 800GHz grid(4.5nm). Based on Thin-Film-Filter (TFF), this LAN-WDM Mux Demux features small form factor, ultra-low insertion loss, high channel isolation, and unparallel reliability.It incorporates the existing 4G network and manage highly dense fiber connections in 5G network in a cost-effective way.

Features:

  • Low insertion loss
  • High cannel isolation
  • Low polarization dependent loss
  • Exceptional reliability and stability

Applications:

  • Access networks
  • Metro WDM Systems
  • Enterprise networks

Specifications:

Item Unit Parameters Note
Wavelength range nm 1260-1360
Channel centers nm 1295.56/1300.05/1304.58/1309.14
Channels ch 4
Passband nm ≥+/-1.1
Passband ripple dB ≤0.3
Channel insertion loss dB ≤1.5
Isolation (adjacent channel) dB ≥25
Isolation (non-adjacent channel) dB ≥40
Polarization dependent loss dB ≤0.2
Polarization mode dispersion ps ≤0.2
Directivity dB ≥50
Return loss dB ≥45
Optical power handling mW ≤500
Operating temperature range 0C -5 to 70 0C
Storage temperature range 0C -40 to +85 0C
Fiber type SMF-28e with 0.9mm
Connector Type LC/UPC

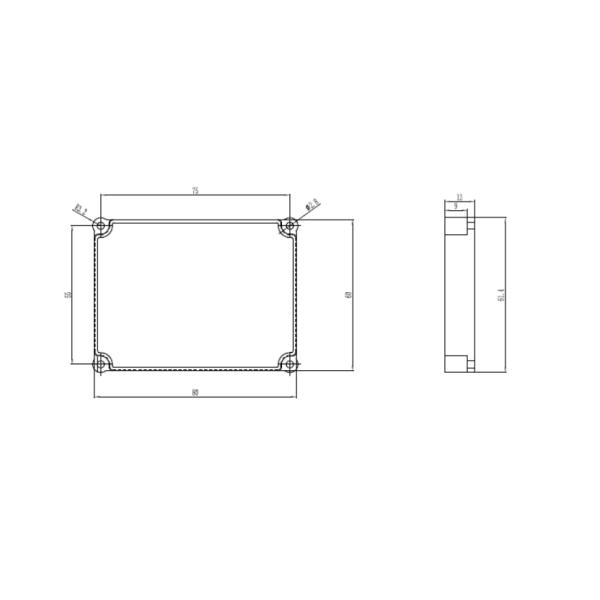

Package dimensions (L x W x H) mm 80 x 60 x 12 ABS

4 Channels 1260-1360nm LAN WDM MUX DEMUX Single Fiber For Access Networks

4 Channels 1260-1360nm LAN WDM MUX DEMUX Single Fiber For Access Networks4 Channels 1260-1360nm LAN WDM MUX DEMUX Single Fiber For Access Networks4 Channels 1260-1360nm LAN WDM MUX DEMUX Single Fiber For Access Networks
