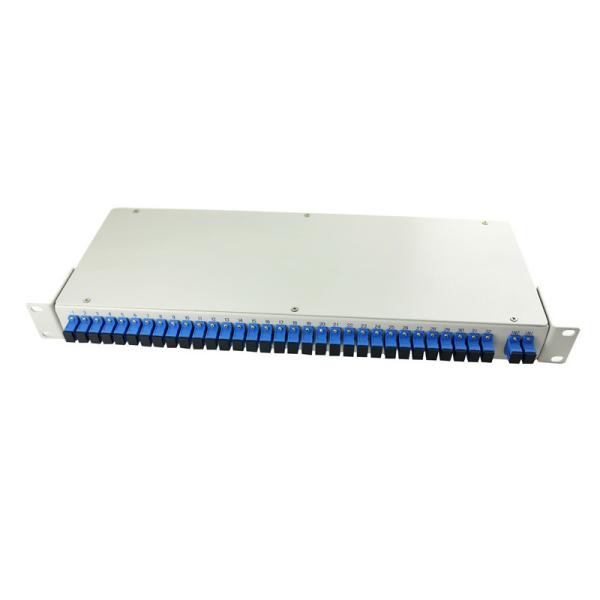

1260-1650nm Rack Mount Optical PLC Splitter For FTTX / PON Networks
1260-1650nm Rack Mount Optical PLC Splitter For FTTX / PON Networks
Specifications
Brand Name :
GAPHO
Model Number :
Rack type optical fiber splitter
Place of Origin :
China
MOQ :
10
Price :
negotiate
Payment Terms :
T/T
Supply Ability :
10000 per month
Delivery Time :
7-10 day
Packaging Details :
Carton
Place of origin :
Shenzhen,China
Type :
Fiber Optical PLC Splitter
Brand name :
GAPHO
Operation Wavelength :
1260~1650
Operation Temperature :
-4-~+85
Fiber Type :
G.657A or Customized
Directivity :
Min:55
Return Loss :
Min:55 (Premium Grade)/50 (Standard Grade)
Description

High Quality Rack Mount Optical Plc Splitter For FTTX/PONnetworks,CATV Links With High Precision Of Dimension

Description:

PLC splitter is an optical power distribution device based on the integrated waveguide of quartz plate. With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.

Feature:

  • Low Insertion Loss,High Return Loss.
  • Good compatibility.
  • High precision of mechanical dimensions
  • High stability & reliability

Application:

  • FTTX networks
  • PON network
  • CATV links
  • Data Communication

​Specification:

Parameters 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260~1650
Fiber Type SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade) 4.0/3.8 7.3/7.0 10.5/10.2 13.7/13.5 16.9/16.5 21.0/20.5
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.5
Return Loss (dB) (S/P Grade) 50/55 50/55 50/55 50/55 50/55 50/55
Polarization Dependent Loss(dB)

0.2

0.2

0.3

0.3

0.3

0.4
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB)

0.3

0.3

0.3

0.5

0.5

0.5
Temperature Stability(-40~85 °C)(dB) 0.5 0.5 0.5 0.5 0.5 0.5
Operating Temperature (°C) -40~85
Storage Temperature (°C) -40~85
Module Dimension (mm) (L×W×H) 100×80×10 100×80×10 100×80×10 120×80×18 140×115×18 140×115×18

Types of Fiber Optic Splitter

1. Basic type PLC splitter
2. SFF type PLC splitter
3. 900um Fan-out Type PLC Splitter
4. Cassette type PLC splitter Module
5. Rack type PLC splitter Module
6. Tray assembly PLC splitter Module
7. Flat Quick-Connect Termination Type PLC Splitter Module
