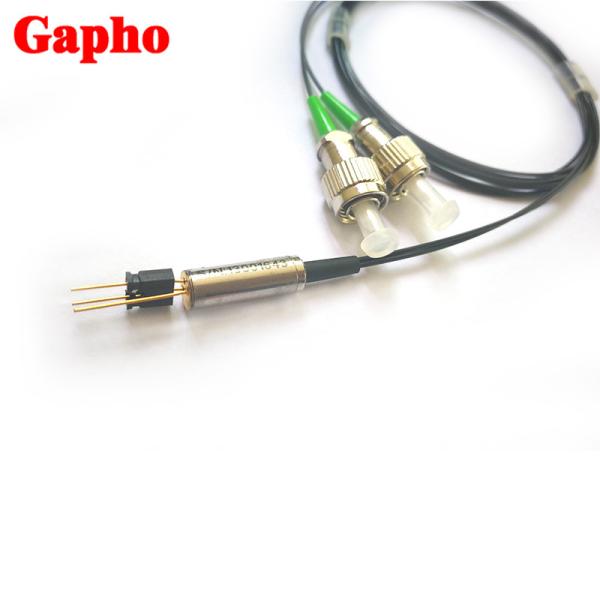

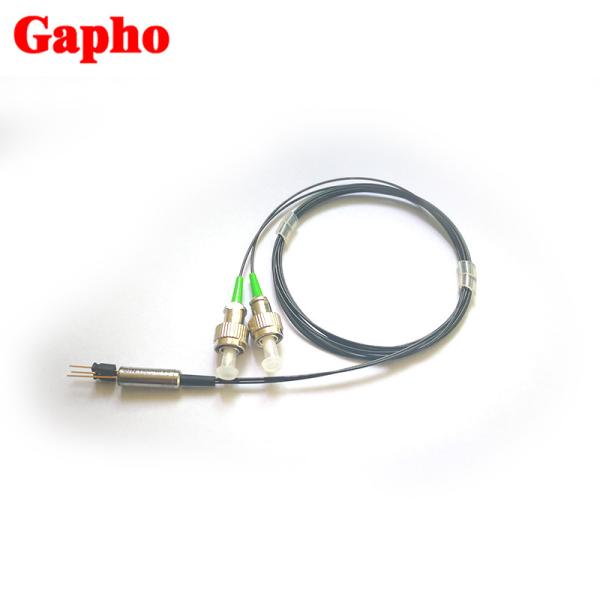

1270-1350nm VOA MEMS Variable Optical Attenuator Dark Type O / C / L Band ROHS
1270-1350nm VOA MEMS Variable Optical Attenuator Dark Type O / C / L Band ROHS
1270-1350nm VOA MEMS Variable Optical Attenuator Dark Type O / C / L Band ROHS
1270-1350nm VOA MEMS Variable Optical Attenuator Dark Type O / C / L Band ROHS
1270-1350nm VOA MEMS Variable Optical Attenuator Dark Type O / C / L Band ROHS
1270-1350nm VOA MEMS Variable Optical Attenuator Dark Type O / C / L Band ROHS
Specifications
Brand Name :
GAPHO
Model Number :
Fiber Optical Attenuator
Place of Origin :
China
MOQ :
50
Price :
negotiate
Payment Terms :
T/T, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000
Delivery Time :
7-10 day
Packaging Details :
Carton,pearl cotton,bubble bag,plastic bag
Wavelength Range :
1270 - 1350
Attenuation Type :
Bright or Dark
Attenuation Range :
≥30
Blocking State Attenuation :
≤0.7 (0.5 Typical)
Ripple :
≤0.05
Optical Power Handling :
300
Description

1270~1350 nm VOA MEMS Variable Optical Attenuator dark Type O/C/L band ROHS

1. Features:

  • Low insertion loss
  • Low polarization dependent loss
  • Compact design
  • Low power consumption
  • Insensitive to shock and vibration

2. Applications:

  • Power control and equalization in multi channel systems
  • Gain-tilt control in EDFAs
  • Receiver protection
  • Channel on/off switching

3. Compliance:

  • Telcordia GR-1209-CORE
  • Telcordia GR-1221-CORE
  • RoHS

specifications

Parameter Unit Specification Note
Wavelength Range nm 1270 - 1350
Attenuation Type Bright or Dark
Attenuation Range dB ≥30
Blocking State Attenuation dB ≥40 Dark type
Insertion Loss dB ≤0.7 (0.5 Typical) Excluding Connectors
Attenuation Resolution Continuous
Wavelength Dependent Loss dB ≤0.3 @<0dB Att.
≤0.6 @<10dB Att.
≤1.5 @<20dB Att.
Ripple dB ≤0.05 Within 0.4nm window @20dB
Polarization Dependent Loss dB ≤0.1 @<0dB Att.
≤0.3 @<20dB Att.
Temperature Dependent Loss dB ≤0.7 @<0dB Att. compare with RT
≤1.0 @<20dB Att. compare with RT
Return Loss dB ≥45
PMD ps ≤0.1
Response Time ms ≤3 10-90% Optical Power
Optical Power Handling MW 300
Driving Voltage VDC 6V or 15V
Power Consumption mW ≤2
Operating Temperature ºC 0 to 70
Storage Temperature Range ºC -40 to 85

*The specifications are w/o connector.

* For devices with connectors, 0.3dB higher for IL, 5dB lower for RL and 2dB lower for ER.

* For device with connector, key aligned to slow axis.

ordering information

MSVOA- X X- XX- X XX- X
MS=MEMS Operating Wavelength Attenuation Type Drive Voltage Fiber Type Fiber Length Connector Type
V=Variable C=C Band B=Bright 6=6V 0=250μm fiber 10=1.0m 0=None
O=Optical L=L Band D=Dark 15=15V 1=900μm fiber 15=1.5m 1=FC/UFC
A=Attenuator 　 　 　 　 　 2=FC/APC
　 　 　 　 　 　 3=SC/UPC
　 　 　 　 　 　 4=SC/APC
　 　 　 　 　 　 5=LC/UPC
　 　 　 　 　 　 6=LC/APC

1270-1350nm VOA MEMS Variable Optical Attenuator Dark Type O / C / L Band ROHS1270-1350nm VOA MEMS Variable Optical Attenuator Dark Type O / C / L Band ROHS1270-1350nm VOA MEMS Variable Optical Attenuator Dark Type O / C / L Band ROHS1270-1350nm VOA MEMS Variable Optical Attenuator Dark Type O / C / L Band ROHS1270-1350nm VOA MEMS Variable Optical Attenuator Dark Type O / C / L Band ROHS

company prolife

1270-1350nm VOA MEMS Variable Optical Attenuator Dark Type O / C / L Band ROHS

1270-1350nm VOA MEMS Variable Optical Attenuator Dark Type O / C / L Band ROHS

​

According to the customer's requirement.

We can provide packing according to customer's requirement, quantity, weight and volume.

Our Services:We can provide customized products for customers. We only need to provide requirements, samples, specifications, drawings, etc.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 1-2 days if the goods are in stock. or it is 3-6 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q:What certificate we have?

A: ISO 9001: 2015, RoSH, CE, High and New Tech Enterprise Certficate.

Q: What is your delivery date?

A: The delivery date is approximately 3-5days, depending on the order quantity.
