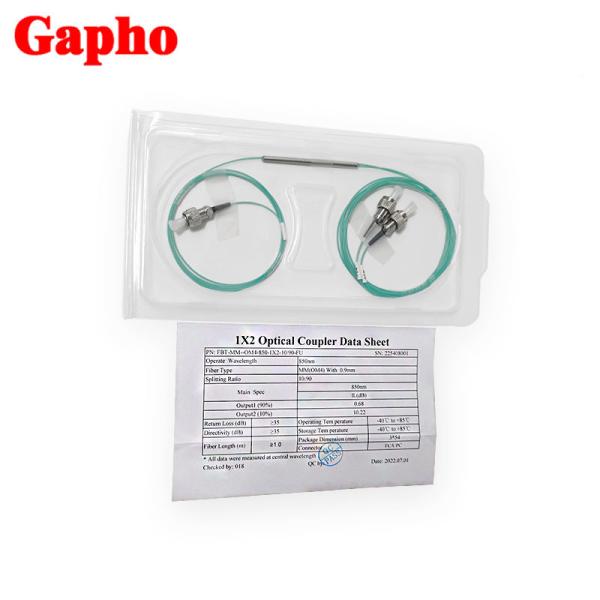

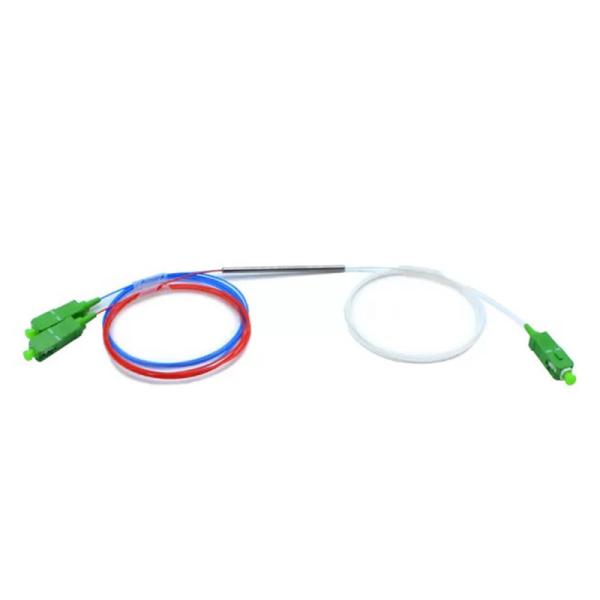

1x4 1x8 Module optical fiber coupler Specify Fiber Length High Extinction Ratio
1x4 1x8 Module optical fiber coupler Specify Fiber Length High Extinction Ratio
1x4 1x8 Module optical fiber coupler Specify Fiber Length High Extinction Ratio
1x4 1x8 Module optical fiber coupler Specify Fiber Length High Extinction Ratio
1x4 1x8 Module optical fiber coupler Specify Fiber Length High Extinction Ratio
1x4 1x8 Module optical fiber coupler Specify Fiber Length High Extinction Ratio
1x4 1x8 Module optical fiber coupler Specify Fiber Length High Extinction Ratio
1x4 1x8 Module optical fiber coupler Specify Fiber Length High Extinction Ratio
Specifications
Brand Name :
GAPHO
Model Number :
optical fiber coupler
Place of Origin :
China
MOQ :
50
Price :
negotiate
Payment Terms :
T/T, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000
Delivery Time :
7-10 day
Packaging Details :
Carton,pearl cotton,bubble bag,plastic bag
Center wavelength(nm） :
1310 or 1550
Operating wavelength(nm) :
λ±30
Storage temperature(℃） :
-40 to +85
Operating temperature(℃） :
-5 to + 70
configuration :
1x4 1x8
Fiber length :
specify
Tube type :
900 um loose tube
Connector type :
SC/UPC
Description

1x4 1x8 coupler module all coupling ratio specify fiber length high extinction ratioA PM filter coupler module.docx

Description

This product series is manufactured by using advanced technology to allow the input single to be splitted into multichannels at a given splittering ratio with high extinction ratio,low excess.

Features

Loss,low uniformity,low WDL and low TDL,it can be widely used in fiber sensors,amplifiers,lasers,etc.

specifications

Parameter value
Center wavelength(nm) 1310 or 1550
Operating wavelength(nm) λ±30
Insertion loss(dB) ≤ 7.5 ,typ 7.0 ≤ 11 ,typ 10.5
Max.IL uniformity 0.8 1
Min.return loss 50
Directivity(dB) 50 45
Min.extinction ratio 20
Max temperature dependent loss(dB/℃) 0.006 0.008
Operating temperature(℃) -5 to + 70
Fiber type(℃) SMF-28 Fiber
Storage temperature(℃) -40 to +85
Fiber type PM panda fiber
Package dimension 160x140x10 mm 160x160x10 mm

Package dimension

1x4 1x8 Module optical fiber coupler Specify Fiber Length High Extinction Ratio

ordering information

configuration wavelength Coupling ratio Connector type Tube type Fiber length
1x4 1310 nm 1/99 25/75 SC/UPC 900 um loose tube 0.75 m
1x8 1550 nm 2/98 30/70 SC/APC 250 um panda fiber specify
specify specify 3/97 35/65 FC/UPC specify
5/95 40/60 LC/UPC
10/95 45/55 LC/APC
15/85 50/50 specify
20/80

1x4 1x8 Module optical fiber coupler Specify Fiber Length High Extinction Ratio

1x4 1x8 Module optical fiber coupler Specify Fiber Length High Extinction Ratio

1x4 1x8 Module optical fiber coupler Specify Fiber Length High Extinction Ratio

1x4 1x8 Module optical fiber coupler Specify Fiber Length High Extinction Ratio

1x4 1x8 Module optical fiber coupler Specify Fiber Length High Extinction Ratio

company prolife

1x4 1x8 Module optical fiber coupler Specify Fiber Length High Extinction Ratio

1x4 1x8 Module optical fiber coupler Specify Fiber Length High Extinction Ratio

​

According to the customer's requirement.

We can provide packing according to customer's requirement, quantity, weight and volume.

Our Services:We can provide customized products for customers. We only need to provide requirements, samples, specifications, drawings, etc.

FAQ

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below: A: We are factory.

Q:What certificate we have?

A: ISO 9001: 2015, RoSH, CE, High and New Tech Enterprise Certficate.

Q: Can you provide samples for customers?

A: Yes, but the shipping will be charged on the customer's account.
