Specifications
Brand Name :
GaPho
Model Number :
WDM Module
Certification :
ROHS
Place of Origin :
China
MOQ :
10
Price :
negotiable
Payment Terms :
T/T, D/A, D/P, T/T, L/C
Supply Ability :
negotiable
Delivery Time :
5-10 day
Channel Wavelength(nm) :
1529.55~1561.42(ITU 20~60)
Insertion loss Temperature sensitivity(dB/℃） :
＜0.003
Wavelength Temperature Shifting(nm℃） :
＜0.002
Polarization Dependent Loss(dB) :
≤0.1
Polarization Mode Dispersion(ps) :
≤0.1
Directivity(dB) :
≥50
Description

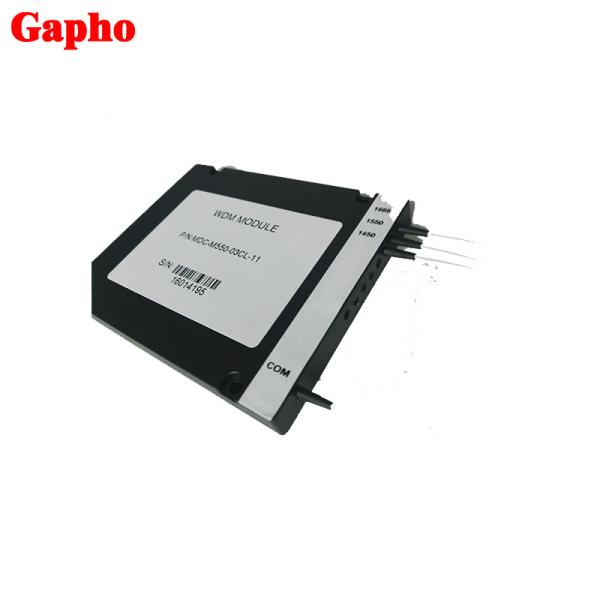

WDM Module

Wavelength division multiplexer is splitting and merging of wavelength optical passive components, is to use the low insertion loss of the fiber resources, through WDM combined wave, combine different wavelengths of light on an optical fiber transmission, at the receiving end, the wavelength division multiplexer of partial wave will be different light carrier to separate different signal multiplexing method respectively.

Parameter 100G Hz 200G Hz
Channel Wavelength(nm) 1529.55~1561.42(ITU 20~60)
Center Wavelengtth(nm) ±0.05 ±0.1
Channel passband(@-0.5db bandwidth)(nm) ＞0.22 ≥0.5
Insertion Loss Add/Drop Ch. ＜1.0 ≤0.9
Express Ch. ＜0.4 ≤0.4
Channel Ripple(db) ＜0.4 ≤0.4
Isolation(dB) Adjacent Ch. ＞25 ≥30
Non-Adjacent Ch. ＞35 ≥40
Express Channel lsolation(dB) ＞10 ≥12
Insertion loss Temperature sensitivity(dB/℃) ＜0.003 ＜0.003
Wavelength Temperature Shifting(nm℃) ＜0.002 ＜0.002
Polarization Dependent Loss(dB) ≤0.1 ≤0.1
Polarization Mode Dispersion(ps) ≤0.1 ≤0.1
Directivity(dB) ≥50 ≥50
Return Loss(dB) ≥45 ≥45
Power Handling(mW) ≤300 ≤300
Operating Temperature(℃) 0~+70 0~+70
Storage Temperature -45~+85 -45~+85
Package Dimension(mm) Ø5.5xL34 or Specify Ø5.5xL34 or Specify

Features

♦Low insertion Loss

♦High channel isolation

♦High stability and reliability

♦Epoxy free optical path

Application

♦DWDM Network

♦Wavelength Routing

♦Fiber Optical Amplifier

♦CATV Fiber optic System
