Specifications
Brand Name :
GAPHO
Model Number :
Fiber Optical Isolator
Certification :
ROHS
Place of Origin :
China
MOQ :
10
Price :
Negotiable
Payment Terms :
T/T, D/A, D/P, T/T, L/C
Supply Ability :
Negotiable
Delivery Time :
7-10 day
Fiber Type :
SMF-28e
Tensile Load :
5
Max. Optical Power (CW) :
500
Operation Temperature :
0 ~ +70
Central Wavelength :
1310/1550nm
Features :
Low Insertion Loss high Isolation Highly Stable and Reliable
Description

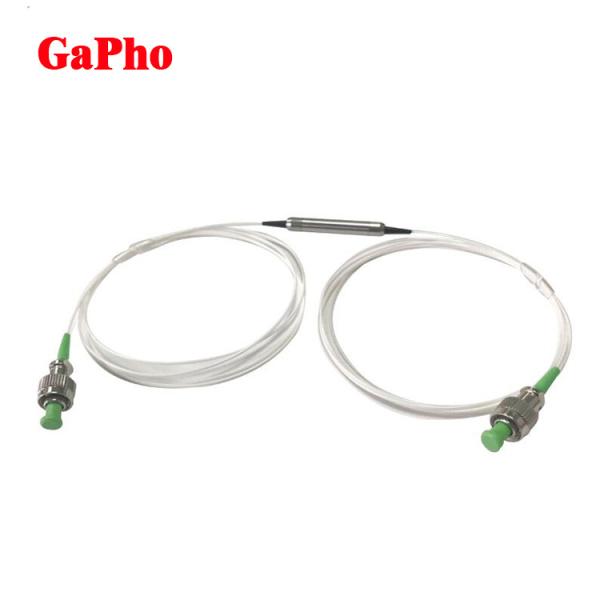

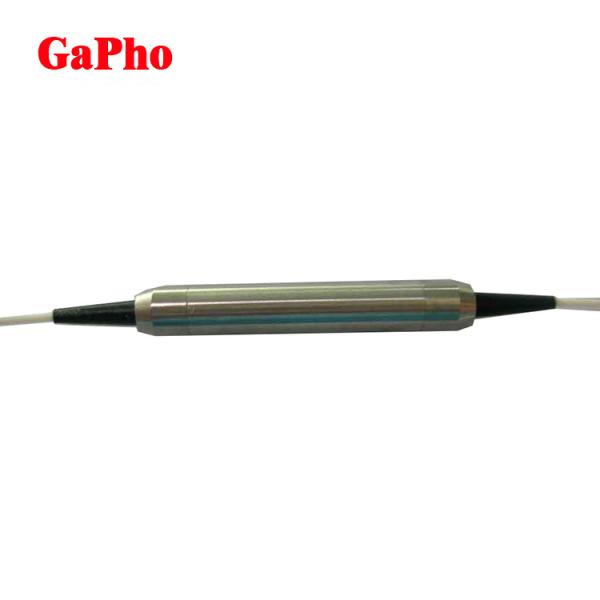

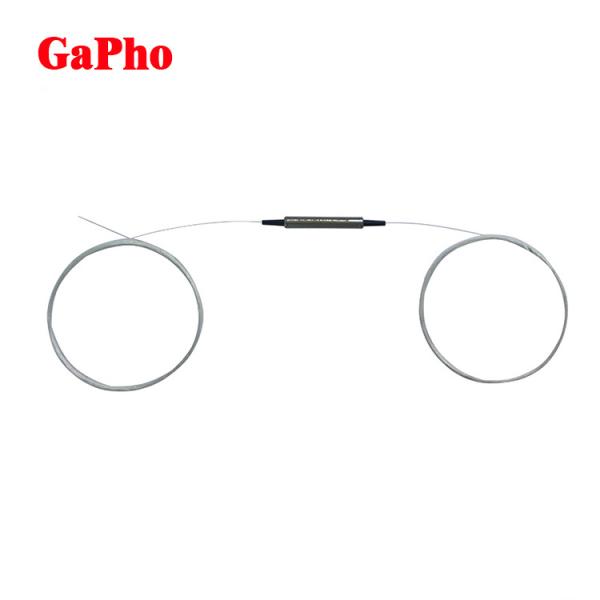

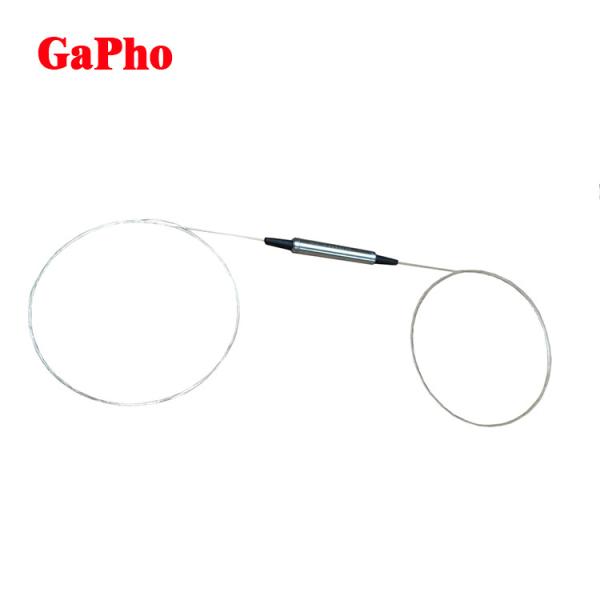

Fiber Optical Isolator

The optical fiber isolator is a dual - port non - reciprocal optical passive device. It can attenuate the optical signal transmitted along the forward direction very little while attenuate the optical signal transmitted along the opposite direction very much, constituting a one-way path of light. When the laser and the transmission fiber are indirectly inserted into the optical isolator, the reflected light generated from the distal end face of the fiber and the interface of the fiber connector in the line can be effectively suppressed to return to the laser, so as to ensure the stability of the laser working state and reduce the noise caused by the reflected light in the system. This is more important for high - rate optical fiber communication systems. There are many kinds of optical isolators. Shenzhen Xingbo Technology can provide you with various types of optical isolators, mainly block optical isolators, all-fiber optical isolators, integrated optical waveguide optical isolators and optical isolators independent of polarization, etc. Its function is to prevent the backward transmission light in the optical path due to various reasons on the light source and optical path system produced by the bad influence.

Parameters Unit Single Stage Dual Stage
Premium A Grade Premium A Grade
Central Wavelength nm 1310/1550
Operating Wavelength Range nm λ±15 λ±20
Typ. Peak Isolation dB 38 35 55 52
Min. Isolation at CWL (at 25℃) dB 32 30 45 42
Max. PDL (at 25 ℃) dB 0.10 0.15 0.15 0.20
Typ. Insertion Loss(at 25 ℃) dB 0.50 0.55 0.70 0.75
Max. Insertion Loss (at 0~70℃) dB 0.55 0.60 0.75 0.80
Min. Return Loss dB 60/55 60/55
Fiber Type / SMF-28e
Tensile Load N 5
Max. Optical Power (CW) mW 500
Operation Temperature ℃ 0 ~ +70
Storage Temperature Range ℃ -40 ~ +85

Features

  • Low Insertion Loss
  • high Isolation
  • Highly Stable and Reliable

Applications

  • Fiber Lasers & EDFAs
  • Local Area Network(LAN)
  • Fiber Sensors
  • Telecommunications
