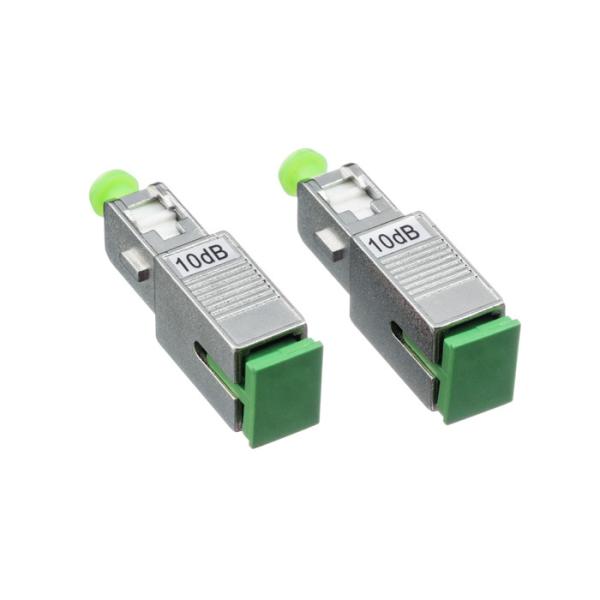

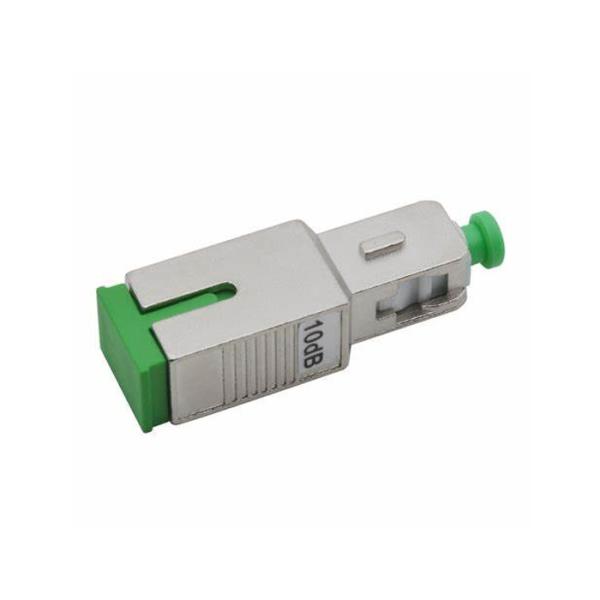

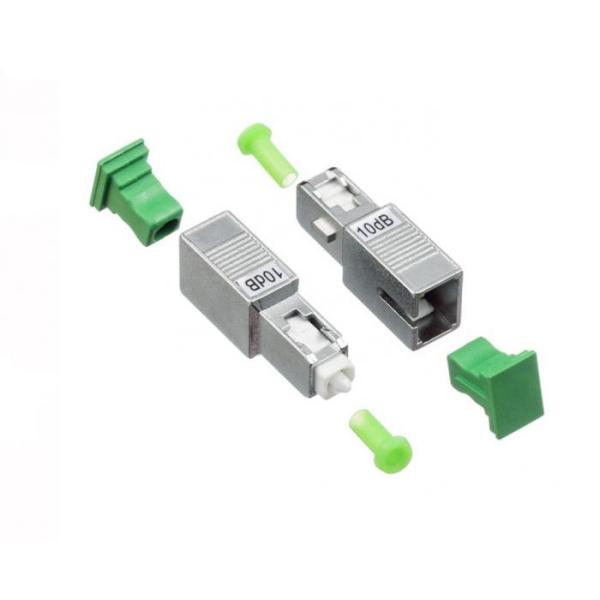

Fixed SC-APC Fiber Optical Attenuator For CATV LAN
Fixed SC-APC Fiber Optical Attenuator For CATV LAN
Fixed SC-APC Fiber Optical Attenuator For CATV LAN
Fixed SC-APC Fiber Optical Attenuator For CATV LAN
Fixed SC-APC Fiber Optical Attenuator For CATV LAN
Fixed SC-APC Fiber Optical Attenuator For CATV LAN
Specifications
Brand Name :
Gapho
Model Number :
SC-APC Optical Fiber Attenuator
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
100000/Week
Delivery Time :
7-10 Day
Packaging Details :
Carton
Type :
SC-APC
Description

Fixed Fiber Optic Attenuators SC-APC Fiber Optical Attenuator

Product Description:
Optical pad attenuators are built with metal-ion doped optical slices and are designed to provide consistent attenuation levels as well as maintaining polarization characteristics. Typical application for an optical pad attenuator is to reduce the amount of optical power by a specific amount as to not saturate a receiver which can limit a system's performance. They also can be used to test the linearity and dynamic range of photo sensors and photo detectors in test and measurement applications.

Key Features:
Low back refection
Insertion loss
Available attenuation from 1dB to 30 dB
Low PDL
100% tested in factory
Environmentally stable

Applications:
Receiver padding
CATV, LAN, telecommunications
WDM and DWDM systems channel balancing
Optical power equalization
Test and instrument
Optical transmission systems

Ordering Information

BAT- XX- X A- XX-

LC: LC

SC: SC

FC: FC

1: APC

2:UPC

01: 01DB

02: 02DB

03: 03DB

04: 04DB
Connector Type Interface polish Attenuation Value

Package & Specifications

Packaging Description
Clear Ziploc bag, 1 unit per bag
Physical Characteristics Parameter Value
Plastic material UL 94V-0 ABS high-impact thermoplastic
Fiber material Metal-ion doped optical fiber
Mechanical Characteristics Parameter Value
Operating temperature (℃) -40 ~ +85
Storage temperature (℃) -40 ~ +85
Optical Performance Parameter Value
Operating bandwidth 1250nm~1625nm
Center wavelength 1310nm and 1550nm
Attenuation tolerance 1 to 10 dB:±0.5dB 11 to 30 dB:±0.5%dB
Return loss UPC(dB) ≥45
Return loss APC(dB) ≥55
PDL ≤0.1
