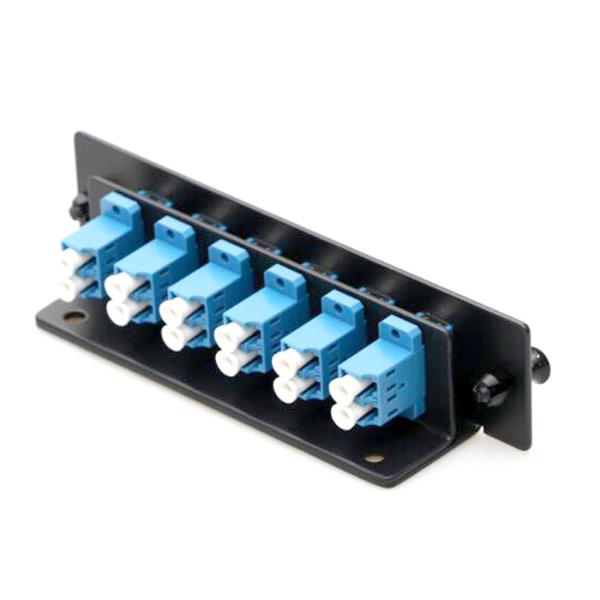

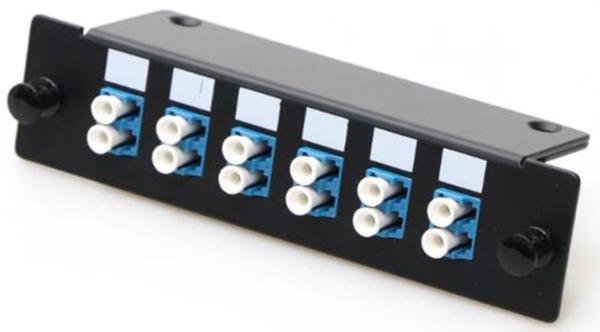

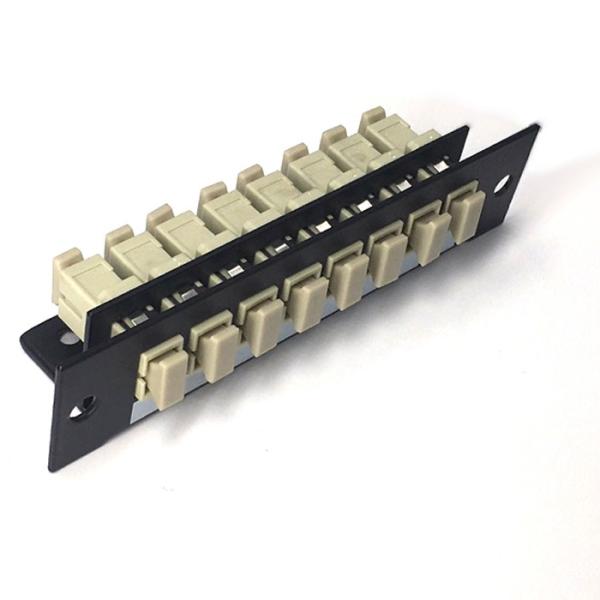

The MPO/MTP-LC pre-terminated module box is mainly used to branch the 12-core MPO connector of the main optical cable terminal into a dual-core conventional connector. The specific feature is that the front end of the module box is an LC adapter (flange) port, generally 12 duplex or 6 quad adapters are used, and two MPO or MTP adapters are installed on the back. The module box is a patch cord, which directly connects the front panel LC duplex adapter (flange) with the back MPO or MTP adapter into a whole. Each independent MPO/MTP-LC pre-terminated module box is placed in the optical fiber distribution frame to form a complete MPO/MTP-LC optical fiber distribution frame (box).

1. Convert the 12-pin MPO/MTP connector branch to an LC duplex connector;

3. The front panel is equipped with an LC adapter, and the rear panel is equipped with an MPO/MTP adapter;

5. All ports are marked on the front end, which is easy to identify and search.

■ Through factory termination and testing, the system transmission performance and wiring quality can be greatly improved;
■Based on modular design, quick connection of system components can be realized, greatly reducing on-site construction costs; and rapid recovery of system failures.
■When the data center is upgraded and changed, the pre-termination system can reduce the risk brought by the movement;
■Its high-density feature will also greatly save cabinet space, which will help reduce the energy consumption of the data center;
■Strong versatility, easy to upgrade to the next generation of optical fiber wiring system in the future.

MPO adapter, including key up-key down, key up-key up.

Parameter value Insertion loss (dB) <0.7 500 plug-in/out changes (dB) <0.3 Operating temperature (℃) -40 ～ 85 Storage temperature (℃) -40 ～ 85
MPO-LC/SC pre-terminated sector fiber means that one end uses an MPO single-head 12-core or 24-core connector, and the other end uses an LC/SC connector. This product is mainly used in the pre-end module box, connecting the pre-end backbone optical cable and the jumper between the equipment, making it modular and plug-and-play. Compared with traditional welding, it greatly improves the convenience and efficiency of work. .

The length of the customized jumper wire can be matched with the module box, which is convenient for fiber winding.

There are mainly two types of MPO backbone optical cables: 1. MPO-MPO backbone optical cables; 2. MPO-LC/SC/FC sector branch backbone optical cables;

■ MPO backbone optical cable numbering rules (each space represents one digit):
■ Each MPO pre-terminated optical cable contains 12-core optical fiber, which can be connected to the 12-core optical fiber in one plug and unplug;
■ The optical cable adopts a round double-layer reinforced sheath structure, which overcomes the problem of bending sensitivity, has higher strength, and is convenient for construction and deployment.
■ Use sheath and pull ring to facilitate construction and provide protection for plugs during wiring;
■ Currently, we can provide 62.5/125μm (OM1) standard multimode fiber, 50/125μm laser optimized 10 Gigabit (OM3) multimode fiber, and low water peak single-mode fiber pre-terminated products.
■ The end face of the MPO plug has two structures: male and female, which can be selected according to actual conditions.
