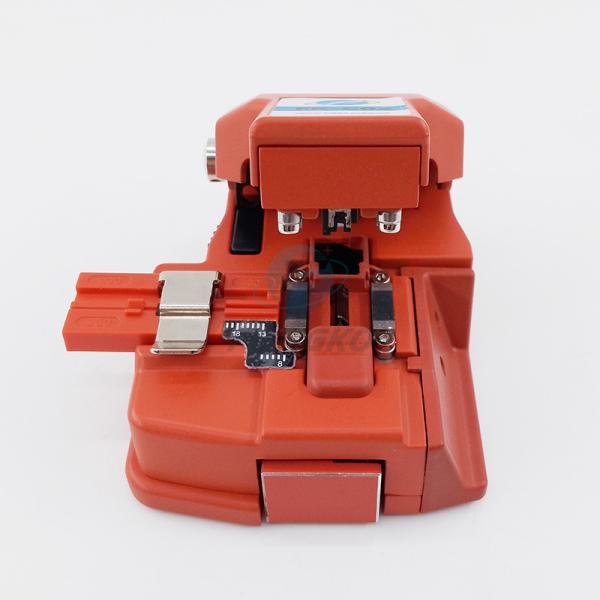

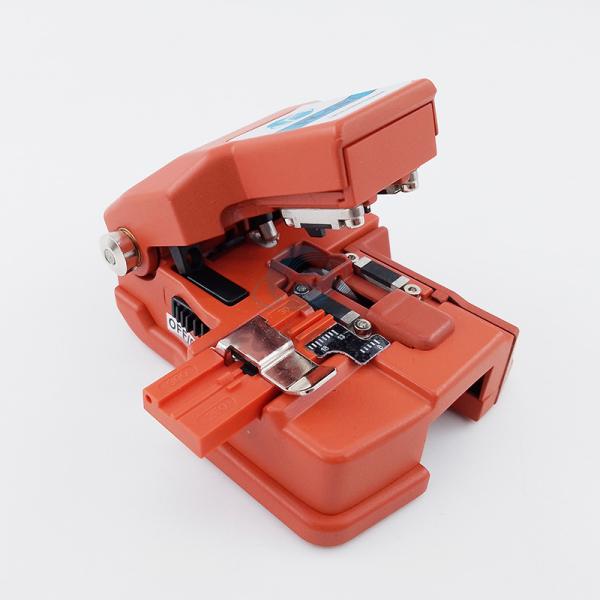

FONGKO FK-C02 Fiber Optic Cleaver Tools , High Precision Optical Fiber Cleaver
FONGKO FK-C02 Fiber Optic Cleaver Tools , High Precision Optical Fiber Cleaver
FONGKO FK-C02 Fiber Optic Cleaver Tools , High Precision Optical Fiber Cleaver
FONGKO FK-C02 Fiber Optic Cleaver Tools , High Precision Optical Fiber Cleaver
FONGKO FK-C02 Fiber Optic Cleaver Tools , High Precision Optical Fiber Cleaver
FONGKO FK-C02 Fiber Optic Cleaver Tools , High Precision Optical Fiber Cleaver
FONGKO FK-C02 Fiber Optic Cleaver Tools , High Precision Optical Fiber Cleaver
FONGKO FK-C02 Fiber Optic Cleaver Tools , High Precision Optical Fiber Cleaver
FONGKO FK-C02 Fiber Optic Cleaver Tools , High Precision Optical Fiber Cleaver
FONGKO FK-C02 Fiber Optic Cleaver Tools , High Precision Optical Fiber Cleaver
FONGKO FK-C02 Fiber Optic Cleaver Tools , High Precision Optical Fiber Cleaver
FONGKO FK-C02 Fiber Optic Cleaver Tools , High Precision Optical Fiber Cleaver
Specifications
Brand Name :
Fongko
Model Number :
FK-C02
Place of Origin :
China
MOQ :
50 Pieces
Price :
Negotiatable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Product name :
Optical Fiber Cleaver
Application :
Telecom Network
Applicable fiber :
Silica optical fiber
Applicable bare fiber diameter :
125um
Blade life :
48,000 times
Cleaved fiber length :
5~16mm(0.25);10~16mm(0.9)
Description

FONGKO FK-C02 Fiber Optic Cleaver Tools High Precision Optical Fiber Cleaver

Optical fiber cleaver Operation methods

(1) Lift the opening and closing lever of the large pressing plate, open the large pressing plate and cover of the fixture, and confirm the slider installed with the cutter on one side;

(2) Adopt a fiber stripper to peel off the coating layer of the optical fiber, reserve a bare fiber length of 20-30mm, wrap the fiber with absorbent cotton or tissue paper dipped in alcohol, and then wipe the fiber clean;

(3) After visually aligning the edge of the optical fiber coating layer with the appropriate scale on the cutting scale (10-16cm), put the optical fiber into the guide groove of the fixture with the left hand, and require the bare optical fiber to be placed straight on the rubber pad;

(4) Close the fixture cover and large pressing plate, then push the slider installed with the cutter to make the cutter cut the lower surface of the optical fiber and slide freely to the other side to cut off the optical fiber;

(5) Hold the cutter with your left hand, open the large pressing plate with your right hand and remove the fiber debris, and put the debris into a fixed container;

Applicable fiber Silica Optical Fiber
Applicable fiber coating diameter φ0.25,φ0.9,φ2.0,φ3.0,φ3.2
Applicable bare fiber diameter 125μm
Cut fiber length 5~16mm(φ0.25);10~16mm(φ0.9)
Dimension 84*77*42mm
Weight 200g
Cutting angle ≤0.5°
Cutter life 48000 times

FONGKO FK-C02 Fiber Optic Cleaver Tools , High Precision Optical Fiber CleaverFONGKO FK-C02 Fiber Optic Cleaver Tools , High Precision Optical Fiber Cleaver
