AI-10A Fiber Optic Fusion Splicer 6 Motors FTTH Melting Machine
AI-10A Fiber Optic Fusion Splicer 6 Motors FTTH Melting Machine
AI-10A Fiber Optic Fusion Splicer 6 Motors FTTH Melting Machine
AI-10A Fiber Optic Fusion Splicer 6 Motors FTTH Melting Machine
AI-10A Fiber Optic Fusion Splicer 6 Motors FTTH Melting Machine
AI-10A Fiber Optic Fusion Splicer 6 Motors FTTH Melting Machine
AI-10A Fiber Optic Fusion Splicer 6 Motors FTTH Melting Machine
AI-10A Fiber Optic Fusion Splicer 6 Motors FTTH Melting Machine
Specifications
Brand Name :
Fongko
Model Number :
AI-10A
Certification :
Rohs, SGS, ISO
Place of Origin :
Shenzhen,Guangdong,China
MOQ :
1
Price :
Negotiatable
Payment Terms :
T/T, Western Union, L/C
Product Name :
Fiber Optic Fusion Splicing Machine
Certificate :
RoHS
Application :
Optical Fiber cable splicing
Operating temperature :
-25~+50℃
Typical splicing duration :
6 seconds
heating :
15S
Motors :
6
Description

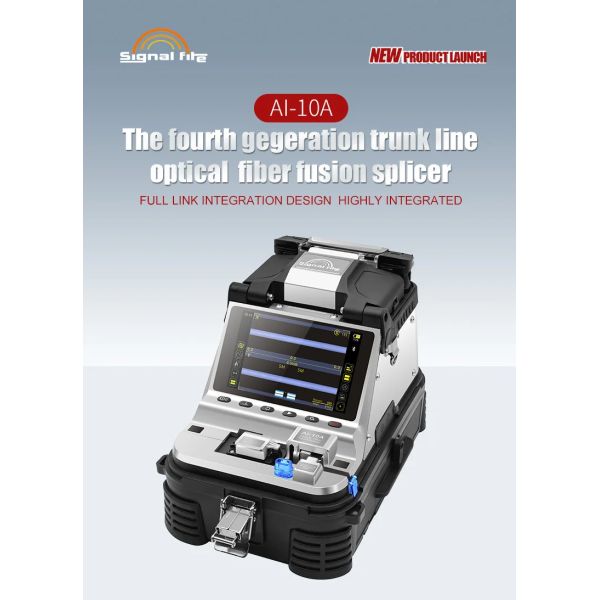

AI-10A Fiber Optic Fusion Splicing Machine

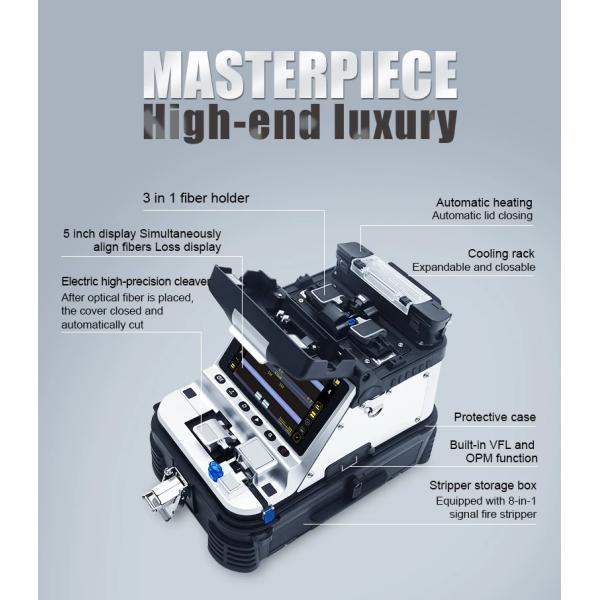

Fiber optic fusion splicer AI-10A is the world's first fourth-generation optical fiber

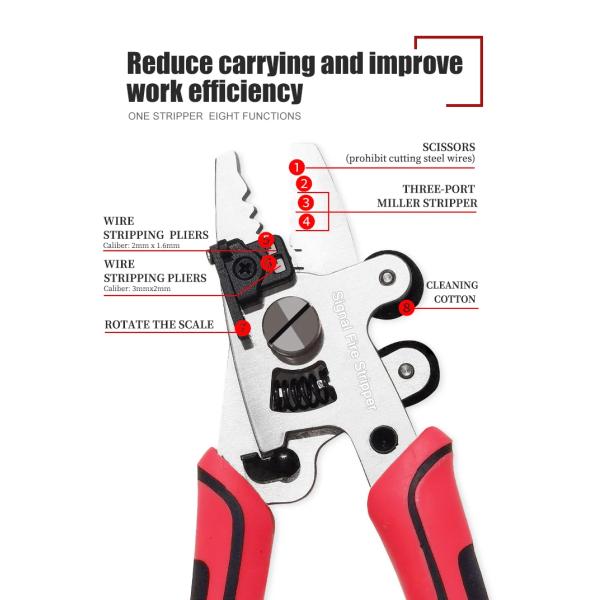

fusion splicer, it combines electric cleaver and fusion splicer as one, with 8-in-1
signal fire stripper, and can be combined with the work bench and table, making
it is the world's first real sense, small size, light weight, easy to operate optical
fiber fusion splicer.
Applicable optical fiber
SM(G.652&G.657),MM(G.651),DS(G.653),NZDS(G.655) and self-defined optical fiber typesand self-defined optical fiber types
Splicing loss
0. 02dB (SM) , 0. 01dB (MM) 0. 04dB (DS/NZDS)
Return loss
Over 60dB
Typical splicing duration
7 seconds
Typical heating duration
18 seconds (configurable heating time and adjustable heating temperature )
Optical fiber alignment
Precise alignment, fiber core alignment, cladding alignment
Optical fiber diameter
Cladding diameter 80~150μm, coating layer diameter 100~1000μm
Cutting length
Coating layer below 250μm:8~16mm；coating layer 250~1000μm:16mm
Tension test
Standard 2N(optional)

AI-10A Fiber Optic Fusion Splicer 6 Motors FTTH Melting Machine

AI-10A Fiber Optic Fusion Splicer 6 Motors FTTH Melting Machine

AI-10A Fiber Optic Fusion Splicer 6 Motors FTTH Melting Machine

AI-10A Fiber Optic Fusion Splicer 6 Motors FTTH Melting Machine

AI-10A Fiber Optic Fusion Splicer 6 Motors FTTH Melting Machine

AI-10A Fiber Optic Fusion Splicer 6 Motors FTTH Melting Machine

AI-10A Fiber Optic Fusion Splicer 6 Motors FTTH Melting Machine
