Specifications
Brand Name :
Fongko
Model Number :
FKEQU-015
Place of Origin :
Shenzhen, China
MOQ :
50 Pieces
Price :
Negotiatable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Product name :
Pen Type Visual Fault Locator
Application :
Telecom Network
Fiber Optic Adapter :
Universal Connector
Output Wavelength :
650nm
Use :
FTTH
Description

Introduction:

650nm visual fault locator has the function of fiber identification and faults locator of SM or MM fiber, it is a helpful
assistant to dead zone of OTDR, it is also a basic maintenance tool for fiber network, LAN, ATM fiber system and telecom network system.

Features:

Support CW and 2Hz modulation work mode
Solid: use special laser end design to avoid damage when dropping on the floor.
Long working hours: use effective laser drive circuit to ensure 1mW/650nm locator can work more than 10 hours continuously.
Stable power output: use special laser driver circuit, which can ensure stable power output in the low battery.
2.5mm universal adapter: use 2.5mm universal adapter, can match SC/LC adapters.

Wavelength 650nm±10nm
Light source FP-LD laser
Output power 1mw,10mw,20mw,25mW,30mW (optional)
Connector 2.5mm universal adapter
Working mode CW or 2Hz modulation
Operating temperature 0~+60 °C
Storage temperature -25~+70 °C
Power 2pcs AA battery
Working hours ≥10
Weight 160g
Dimension (mm) 175*26*26


1mW 10mW Visual Fault Locator Transfer Distance About 1-20KM VFL Pen Type1mW 10mW Visual Fault Locator Transfer Distance About 1-20KM VFL Pen Type1mW 10mW Visual Fault Locator Transfer Distance About 1-20KM VFL Pen Type​





Company Profile
1mW 10mW Visual Fault Locator Transfer Distance About 1-20KM VFL Pen Type

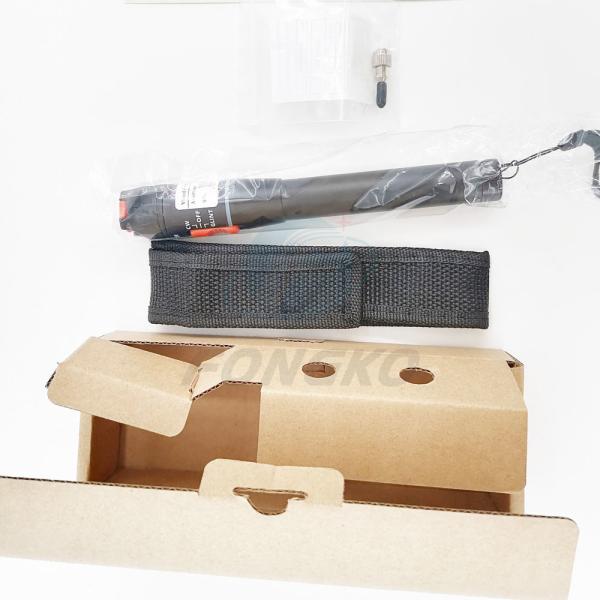

PACKING&SHIPPING
