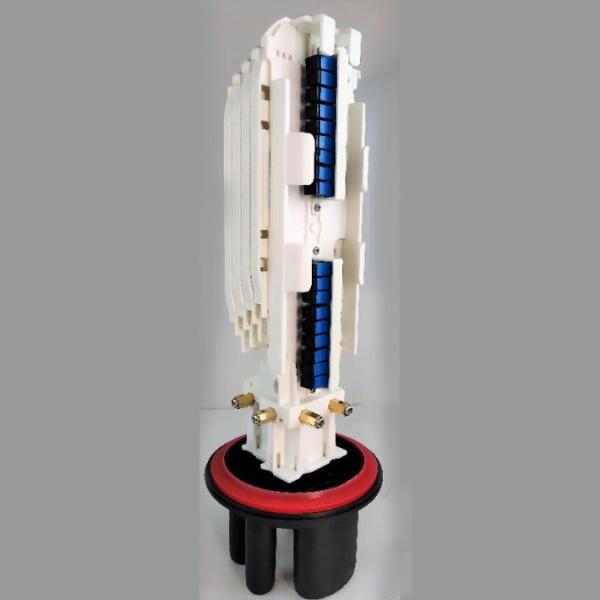

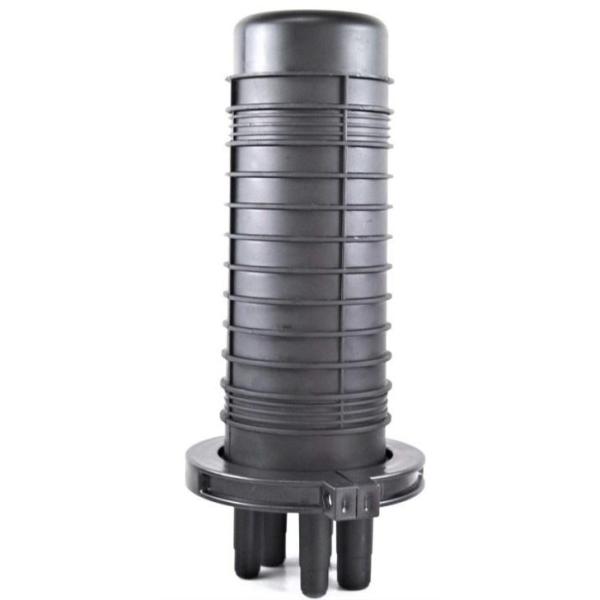

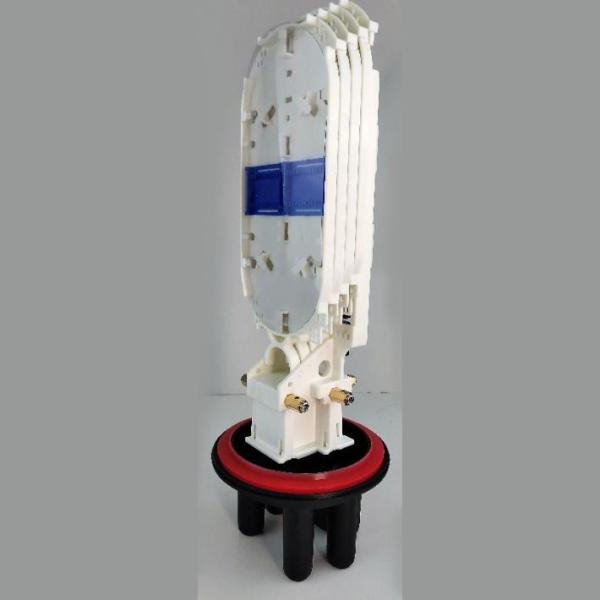

Telecom 96 Cores 3 Trays Dome Fiber Closure 16pcs for SC Adapter
Telecom 96 Cores 3 Trays Dome Fiber Closure 16pcs for SC Adapter
Telecom 96 Cores 3 Trays Dome Fiber Closure 16pcs for SC Adapter
Telecom 96 Cores 3 Trays Dome Fiber Closure 16pcs for SC Adapter
Telecom 96 Cores 3 Trays Dome Fiber Closure 16pcs for SC Adapter
Telecom 96 Cores 3 Trays Dome Fiber Closure 16pcs for SC Adapter
Telecom 96 Cores 3 Trays Dome Fiber Closure 16pcs for SC Adapter
Telecom 96 Cores 3 Trays Dome Fiber Closure 16pcs for SC Adapter
Telecom 96 Cores 3 Trays Dome Fiber Closure 16pcs for SC Adapter
Telecom 96 Cores 3 Trays Dome Fiber Closure 16pcs for SC Adapter
Telecom 96 Cores 3 Trays Dome Fiber Closure 16pcs for SC Adapter
Telecom 96 Cores 3 Trays Dome Fiber Closure 16pcs for SC Adapter
Specifications
Brand Name :
Fongko
Model Number :
FKSCL-014
Place of Origin :
China
MOQ :
50 Pieces
Price :
Negotiatable
Type :
Dome Fiber Optical Splice Closure
Working temperature :
-40℃~+85℃
Relative humidity :
≤85%(+30℃)
Color :
Black
Network :
Wireless Lan, bluetooth, Wired LAN, ONVIF, SDK, TCP, Ip, POE, GPRS, wifi, 4g, GSM, 3G, Wiegand, other
Relative humidity: :
≤85%(+30℃)
Description

Wholesale Price Telecom 24 Core 48 Core 96Cores 3 trays Cable Joint Closures 16pcs SC Adapter Optical Fiber Cable Joint

Fiber Optical Splice Closure is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. It’s widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction. The primary function is to connect distribution cable and indoor cable in the open air.

Features

1 The body is made of high quality engineering plastic with good strength;
2 With good waterproof design, the fiber optical splice closure can be applied into underground and aerial.
3 Excellent fiber routing design ensures the radius curvature of the fiber well and enough fiberstorage space.
Protection Grade
IP68
Material
PP,ABS
Entry Ports
1 Oval(34X60Mm)+4 X20Mm Round Ports Or 6X20Mm Round Ports
Maximum Trays
4 Trays
Maximum Cores
96(Singlel Core)
Buffer Storge
Basket Bracket
Dimension (Hxd)
440Mm *130 Mm
Environment Temp
-30℃~+60℃
Pressure
70Kpa~106Kpa
Sealing Port
Heat Shrinking
Quality Warrenty
2 Years
Life Span
More Than 25 Years
Weight
2.5-3.0Kg
Package(Mm)
6Pcs/Carton
Carton Size
470*470*620
Inner Box Size
450*210*190
Suitable For
Duct ,Overhead,Bury

Telecom 96 Cores 3 Trays Dome Fiber Closure 16pcs for SC Adapter

Company Profile
Telecom 96 Cores 3 Trays Dome Fiber Closure 16pcs for SC Adapter
PACKING&SHIPPING
Telecom 96 Cores 3 Trays Dome Fiber Closure 16pcs for SC Adapter
