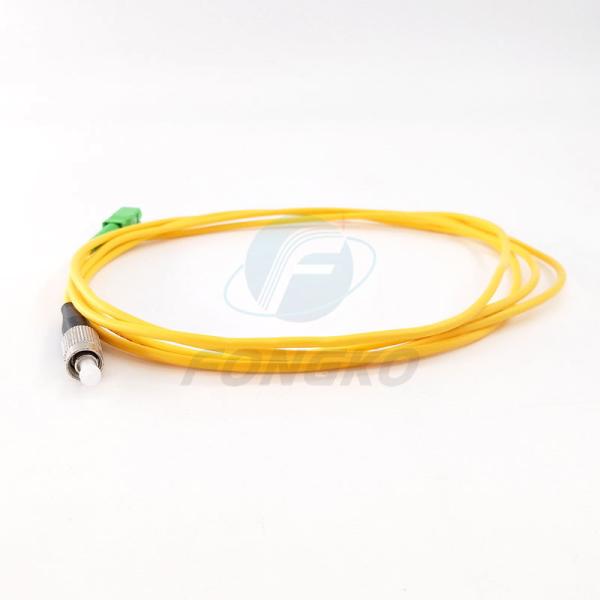

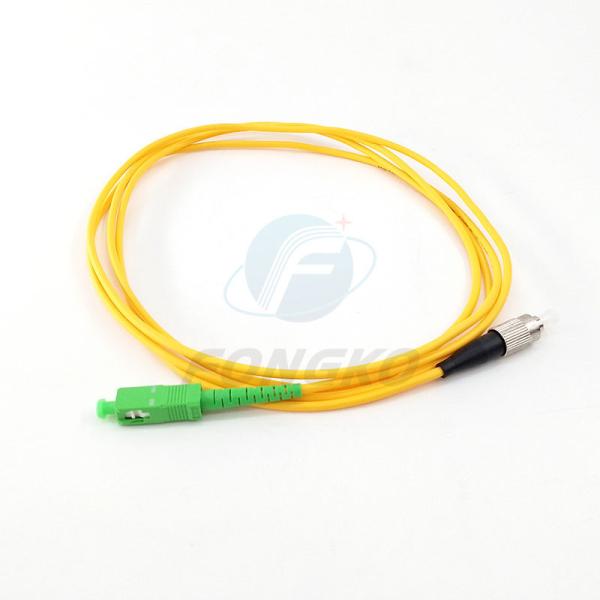

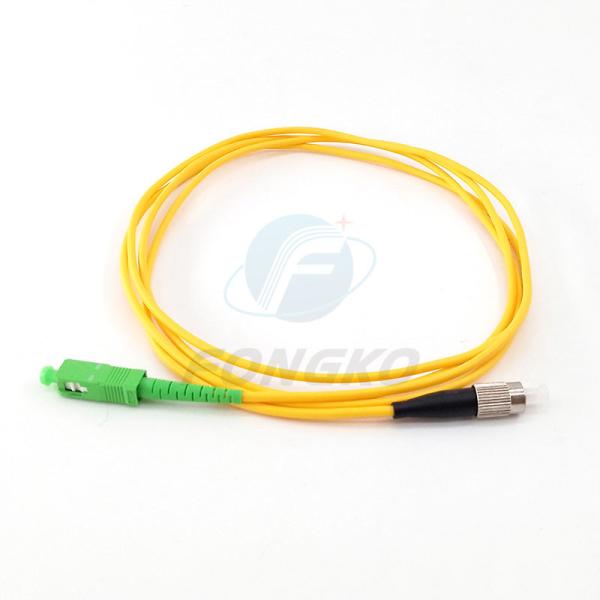

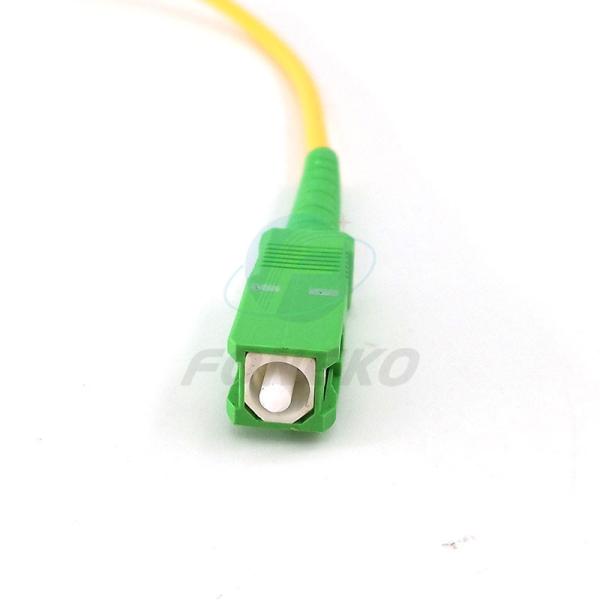

G652D Optical Fiber Jumper SC APC FC , 2mm 3mm 1m 2m 3m Optic Patch Cord
G652D Optical Fiber Jumper SC APC FC , 2mm 3mm 1m 2m 3m Optic Patch Cord
G652D Optical Fiber Jumper SC APC FC , 2mm 3mm 1m 2m 3m Optic Patch Cord
G652D Optical Fiber Jumper SC APC FC , 2mm 3mm 1m 2m 3m Optic Patch Cord
G652D Optical Fiber Jumper SC APC FC , 2mm 3mm 1m 2m 3m Optic Patch Cord
G652D Optical Fiber Jumper SC APC FC , 2mm 3mm 1m 2m 3m Optic Patch Cord
G652D Optical Fiber Jumper SC APC FC , 2mm 3mm 1m 2m 3m Optic Patch Cord
G652D Optical Fiber Jumper SC APC FC , 2mm 3mm 1m 2m 3m Optic Patch Cord
G652D Optical Fiber Jumper SC APC FC , 2mm 3mm 1m 2m 3m Optic Patch Cord
G652D Optical Fiber Jumper SC APC FC , 2mm 3mm 1m 2m 3m Optic Patch Cord
G652D Optical Fiber Jumper SC APC FC , 2mm 3mm 1m 2m 3m Optic Patch Cord
G652D Optical Fiber Jumper SC APC FC , 2mm 3mm 1m 2m 3m Optic Patch Cord
G652D Optical Fiber Jumper SC APC FC , 2mm 3mm 1m 2m 3m Optic Patch Cord
G652D Optical Fiber Jumper SC APC FC , 2mm 3mm 1m 2m 3m Optic Patch Cord
Specifications
Brand Name :
FONGKO
Model Number :
FKPAT-058
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiatable
Type :
Fiber optic patch cord, Fiber opticcal patchcord
Use :
other, FTTH
Warranty Time :
3years
Network :
other, Wireless Lan, Wired LAN, GPRS, wifi, 4g, 3G
Product name :
fiber optic patch cord
Application :
Telecommunications
Lenght :
1m and customized
Color :
Yellow or others
Pigtail Connector :
Single mode
Coating material :
LSZH/PVC
Description
Product Description
Fiber Patch Cable Single mode 9/125 fiber is specially designed for fast Ethernet, Fiber Channel, Gigabit Ethernet Speeds, data center, premises, educational, LAN, SAN, commercial. It supports video, data and voice services.
Features:
1. Simplex or duplex or multi fiber assemblies
2. Riser or Plenum rated, LSZH and RoHS cables available
3. Low insertion loss, IEC, TIA/EIA, Telcordia compliant
4. Custom fiber optic cable lengths and jacket colors
5. Various fiber types and wavelengths, typical 9/125 single mode, 50/125 multimode and 62.5/125 multimode 0.9 / 1.6 / 2.0 / 3.0 / mm outer diameter fiber optic cables PC, UPC, and APC polish types
6. Good packing, competitive prices and very fast delivery
7. 100% geometry test anc IEC cleaning test are available
8. OEM service is available
Connector Type
SC to FC
Polish Type
APC to UPC
Fiber Mode
9/125μm
Wavelength
1310/1550nm
Fiber Count
SInglemode
Fiber Grade
G.657.A1(Compatible with G.652.D)
Insertion Loss
≤0.3dB
Return Loss
≥60dB
Minimum Bend Radius
10mm
Cable Diameter
1.6mm
Pull-out Force
100N
Durability
500 Cycles
Cable Jacket
PVC/LSZH
Jacket Color
 Yellow
Operating Temperature
-40 to 85°C
Storage Temperature
-45 to 85°C
G652D Optical Fiber Jumper SC APC FC , 2mm 3mm 1m 2m 3m Optic Patch CordG652D Optical Fiber Jumper SC APC FC , 2mm 3mm 1m 2m 3m Optic Patch Cord
