Specifications
Model Number :
FKCAB-020
Place of Origin :
China
Brand Name :
FONGKO
MOQ :
1000 Meters
Price :
Negotiatable
Type :
Fiber Optic Cable, Indoor 2 Fiber Armored Optical Fiber Cable(GJSFJV)
Use :
other
Network :
FTTH FTTX
Outer sheath :
LSZH/PVC
Fiber color :
IEC Standard
Core number :
2 core
Fiber type :
G652 & G655 & 62.5/125 & 50/125
Cable diameter :
3.2~4.0mm
Usage :
Indoor distribution
Description
Product Description

Hot Sales Optical Communication Cable De Fibra Optica Gjsfjv Indoor 2 Fiber Armored Fiber Optic Cables

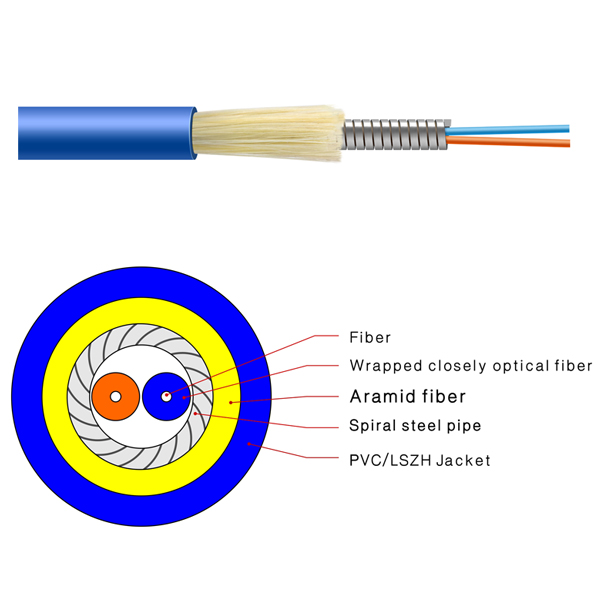

GJSFJV fiber cable, ф900μm or ф600μm tight buffer fibers are wrapped a layer of flat stainless steel wires and then add a layer of aramid yarn as strength unit, finally into fiber optic cable with PVC or LSZH sheath.

Applications:

Small installation space cabling
All kinds of connector, Fiber optic pigtails, patch cords.
Long distance, outdoor/indoor cabling, trunking,etc
Fiber optic equipment ,fiber optic patch panel,fiber to the desk,etc
Indoor cabling,building cabling,LAN, etc
Backbone network to the equipment in the building

Features:

Flame retardant outer sheath provide good safety.2 fiber armored optical fiber cable has a layer of stainless steel wires enhance the crush resistance of the cable and anti-rodent. Good mechanical and environmental performance.
Optical Characteristics
G.652
G.655
50/125μm
62.5/125μm
Attenuation (+20℃)
@850nm
≤3.0dB/km
≤3.0dB/km
@1300nm
≤1.0dB/km
≤1.0dB/km
@1310nm
≤0.36dB/km
≤0.36dB/km
@1550nm
≤0.22dB/km
≤0.23dB/km
Bandwidth
(Class A)
@850
≥500MHZ·km
≥500MHZ·km
@1300
≥1000MHZ·km
≥600MHZ·km
Numerical Aperture
0.200±0.015NA
0.275±0.015NA
Cable Cut-off Wavelength λcc
≤1260nm
≤1480nm
Technical Parameters

Cable Type

Fiber Count

Tight Diameter
mm

Cable Diameter
mm

Cable Weight Kg/km

Tensile Strength Long/Short Term
N

Crush Resistance Long/Short Term
N/100m

Bending Radius
Static/Dynamic
mm
GJSFJV
2
0.6
3.2
15
300/750
200/1000
20D/10D
GJSFJV
2
0.9
4.0
28
300/750
200/1000
20D/10D
