24 Core Lszh Flexible Indoor Fiber Optic Cable Armored GJSFJV 5mm~6mm
24 Core Lszh Flexible Indoor Fiber Optic Cable Armored GJSFJV 5mm~6mm
24 Core Lszh Flexible Indoor Fiber Optic Cable Armored GJSFJV 5mm~6mm
24 Core Lszh Flexible Indoor Fiber Optic Cable Armored GJSFJV 5mm~6mm
24 Core Lszh Flexible Indoor Fiber Optic Cable Armored GJSFJV 5mm~6mm
24 Core Lszh Flexible Indoor Fiber Optic Cable Armored GJSFJV 5mm~6mm
Specifications
Model Number :
FKCAB-021
Place of Origin :
China
Brand Name :
FONGKO
MOQ :
1000 Meters
Price :
Negotiatable
Type :
Fiber Optic Cable, Indoor Distribution Armored Optical Fiber Cable(GJSFJV)
Use :
other
Network :
FTTH FTTX
Outer sheath :
LSZH/PVC
Fiber color :
IEC Standard
Core number :
2~12 core
Fiber type :
G652 & G655 & 62.5/125 & 50/125
Cable diameter :
5.0~6.0mm
Usage :
Indoor distribution
Description

New Indoor Distribution Cable De Fibre Optique Communication Cables Gjsfjv Armored Fiber Optic Cable

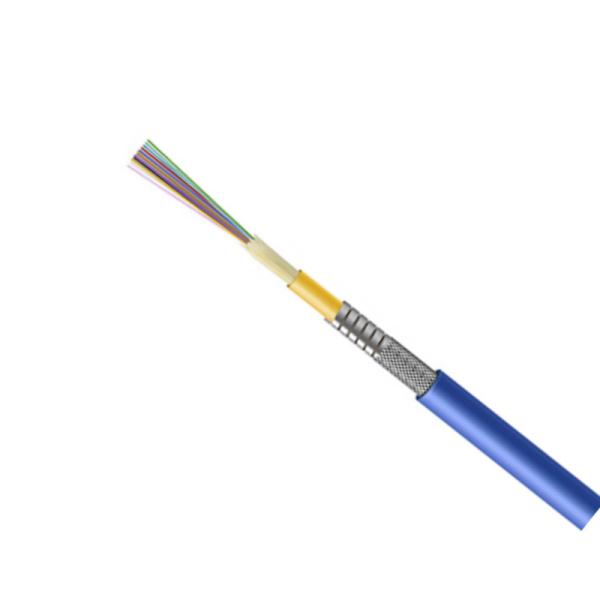

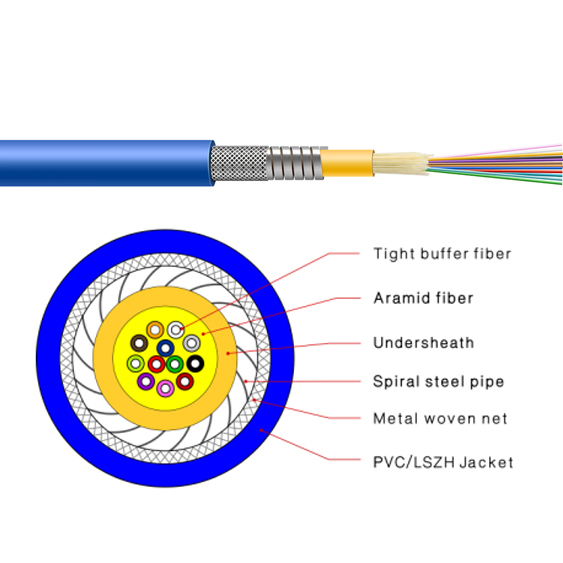

The structure of the cable is put ф900μm or ф600μm tight buffer fibers with aramid yarn,then covered with a layer of PVC or LSZH inner sheath, then wrapped a layer of flat stainless steel wires and add a layer of woven stainless steel wire, finally into fiber optic cable with PVC or LSZH sheath.

Applications:

Fiber optic equipment and instrument
Backbone network to the equipment in the building
Fiber optic equipment ,fiber optic patch panel,fiber to the desk,etc
All kinds of connector , fiber optic pigtails, patch cords.
Long distance, outdoor/indoor cabling, trunking,etc
Indoor cabling,building cabling,LAN, etc
Small installation space cabling

Features:

High strength aramid yarn,high performance outer sheath. Good mechanical and environmental performance.

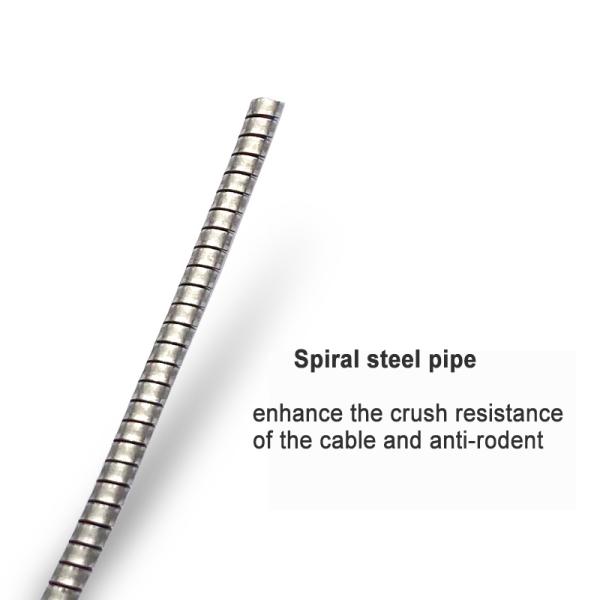

Flame retardant outer sheath provide good safety.Multi fiber armored optical fiber cable has a layer of stainless steel wires enhance the crush resistance of the cable and anti-rodent
Optical Characteristics
G.652
G.655
50/125μm
62.5/125μm
Attenuation (+20℃)
@850nm
≤3.0dB/km
≤3.0dB/km
@1300nm
≤1.0dB/km
≤1.0dB/km
@1310nm
≤0.36dB/km
≤0.36dB/km
@1550nm
≤0.22dB/km
≤0.23dB/km
Bandwidth
(Class A)
@850
≥500MHZ·km
≥500MHZ·km
@1300
≥1000MHZ·km
≥600MHZ·km
Numerical Aperture
0.200±0.015NA
0.275±0.015NA
Cable Cut-off Wavelength λcc
≤1260nm
≤1480nm
Technical Parameters

Cable Type

Fiber Count

Tight Diameter
mm

Cable Diameter
mm

Cable Weight
Kg/km

Tensile Strength Long/Short Term
N

Crush Resistance Long/Short Term
N/100m

Bending Radius Static/Dynamic
mm
GJFJV+SV
2
0.6
5.0
42
300/750
200/1000
20D/10D
GJFJV+SV
4
0.6
6.0
65
300/750
200/1000
20D/10D
GJFJV+SV
6
0.6
6.0
66
300/750
200/1000
20D/10D
GJFJV+SV
8
0.6
6.0
68
300/750
200/1000
20D/10D
GJFJV+SV
12
0.6
6.0
70
300/750
200/1000
20D/10D
