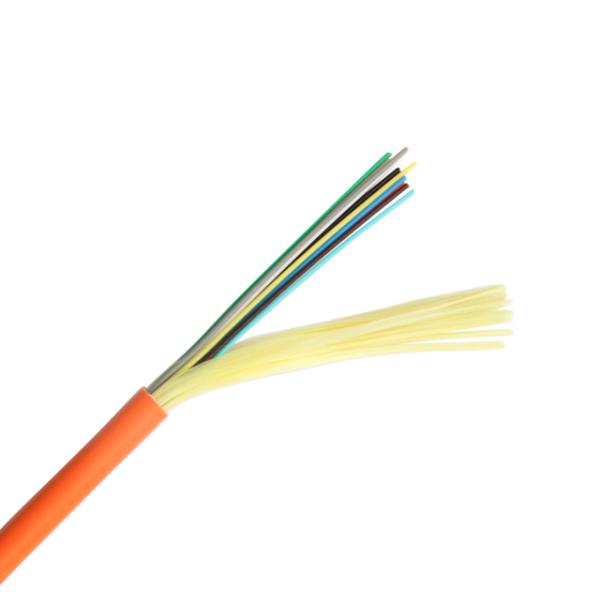

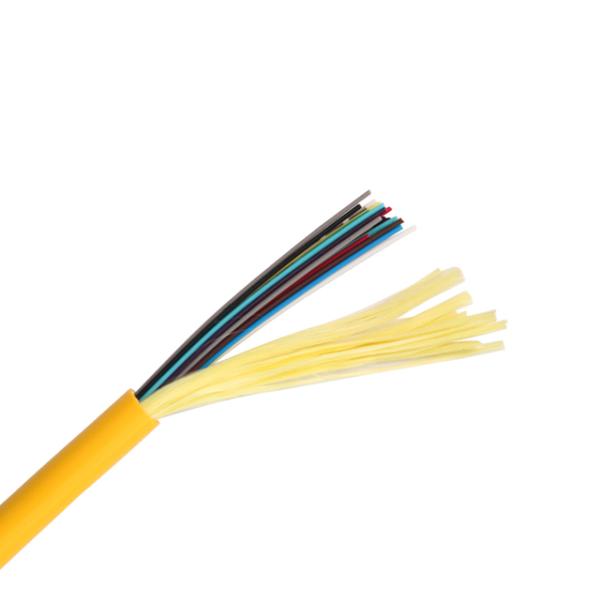

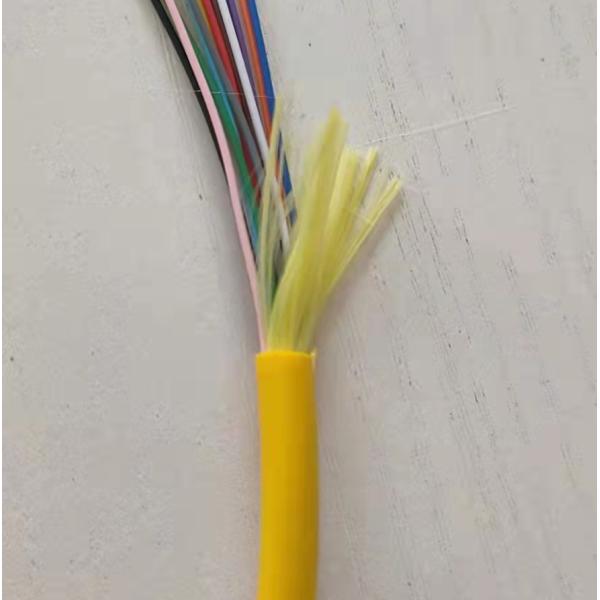

24F G652D Indoor Distribution Fiber Optic Cable PVC Jacket For CCTV 24 CORE
24F G652D Indoor Distribution Fiber Optic Cable PVC Jacket For CCTV 24 CORE
24F G652D Indoor Distribution Fiber Optic Cable PVC Jacket For CCTV 24 CORE
24F G652D Indoor Distribution Fiber Optic Cable PVC Jacket For CCTV 24 CORE
24F G652D Indoor Distribution Fiber Optic Cable PVC Jacket For CCTV 24 CORE
24F G652D Indoor Distribution Fiber Optic Cable PVC Jacket For CCTV 24 CORE
Specifications
Model Number :
FKCAB-002
Place of Origin :
China
Brand Name :
FONGKO
MOQ :
1000 Meters
Price :
Negotiatable
Type :
Fiber Optic Cable
Use :
other
Network :
FTTH FTTX
Type: Indoor Bundle cable :
-40~+60
Outer sheath :
LSZH/PVC
Fiber color :
IEC Standard
Core number :
24 core
Fiber type :
G652D & G657A1 & G657A2 & 62.5/125 & 50/125
Cable diameter :
6.0 - 6.8mm
Usage :
Indoor distribution
Description
Product Description

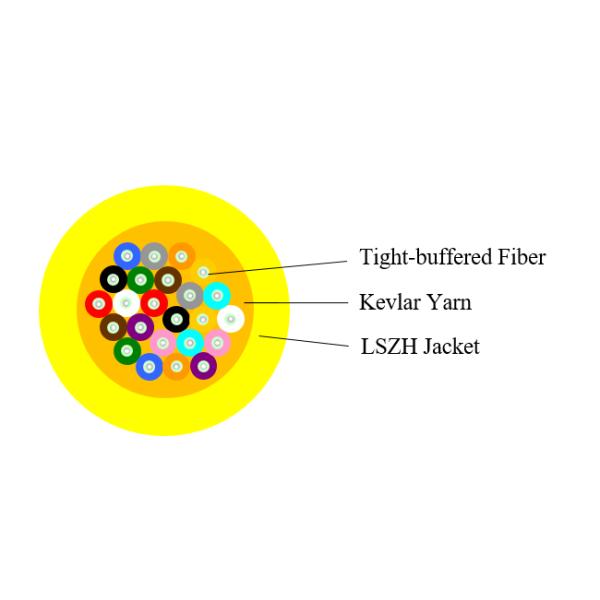

Indoor Bundle cable

indoor fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over ф900μm or ф600μm tight buffer fibers and then is completed with PVC(LSZH) jacket.

Applications:

As building to building connecting cable, as pigtails movable connectors and patch cords for communication equipment.

Features:

Aramid yarn strength member ensure high tensile strength and long term stability in tranmission.
Small outer diameter, light weight, flame-retardant, easy to strip, low attenuation, highly soft.
Direct splicing between tight buffered cables and need no tie-in box or pigtail.
No.
Items
Unit
Specification
G.652D
1
Mode Field Diameter
1310nm
μm
9.2±0.4
1550nm
μm
10.4±0.5
2
Cladding Diameter
μm
124.8±0.7
3
Cladding Non-Circularity
%
≤0.7
4
Core-Cladding Concentricity Error
μm
≤0.5
5
Coating Diameter
μm
245±5
6
Coating Non-Circularity
%
≤6.0
7
Cladding-Coating Concentricity Error
μm
≤12.0
8
Cable Cutoff Wavelength
nm
λcc≤1260
9
Attenuation(max.)
1310nm
dB/km
≤0.4
1550nm
dB/km
≤0.3



24F G652D Indoor Distribution Fiber Optic Cable PVC Jacket For CCTV 24 CORE24F G652D Indoor Distribution Fiber Optic Cable PVC Jacket For CCTV 24 CORE
