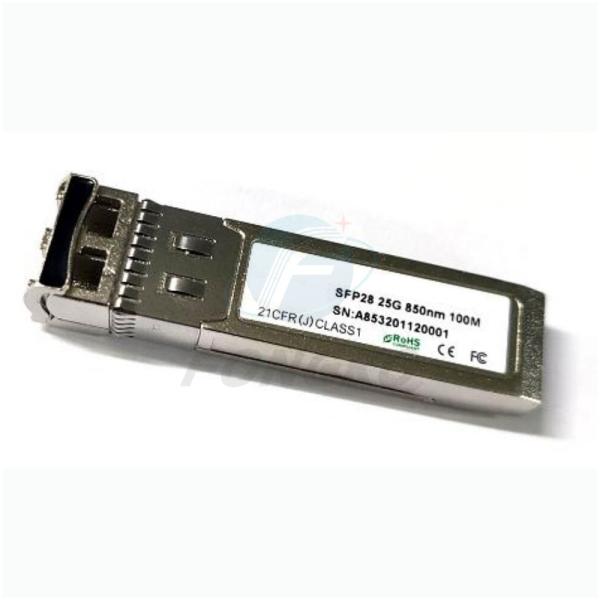

ODM 25Gb/S SFP28 Gigabit Ethernet SFP Optical Transceiver 100m
ODM 25Gb/S SFP28 Gigabit Ethernet SFP Optical Transceiver 100m
ODM 25Gb/S SFP28 Gigabit Ethernet SFP Optical Transceiver 100m
ODM 25Gb/S SFP28 Gigabit Ethernet SFP Optical Transceiver 100m
Specifications
Model Number :
FKSFP-007
Place of Origin :
China
Brand Name :
FONGKO
Price :
Negotiatable
MOQ :
1
Use :
FTTH
Product name :
SFP Optical Transceiver
Condition :
New
Keywords :
25Gb/s SFP28 850nm 100m Optical Transceiver
Low power consumption :
< 1W
Operating case temperature: :
Commerical:0 to 70 °C
Description

Product Features

Supports up to 25.78Gb/s bit rates
compliant to SFF-8402 for SFP28 solution
Digital Diagnostic Monitor Interface with SFF-8472
Hot plug-gable SFP28 footprint
850nm VCSEL transmitter
Maximum link length of 70m links on OM3 or 100m links on OM4 multi-mode fiber
High transmission margin
Low power consumption<1W
Single 3.3V power supply
Operating case temperature: Commerical:0 to 70 °C

Applications

25.78 Gb/s single lane
Other optical links
Absolute Maximum Ratings
Parameter Symbol Min. Max. Unit Note
Supply Voltage Vcc -0.5 4.0 V
Storage Temperature TS -40 85 °C
Relative Humidity RH 0 85 %
General Operating Characteristics
Parameter Symbol Min. Typ Max. Unit Note
Data Rate 25.78 Gb/s
Supply Voltage Vcc 3.13 3.3 3.47 V
Supply Current Icc 300 mA
Electrical Characteristics (TOP(C) = 0 to 70 ℃,TOP(I) =--5 to 80 ℃,VCC =3.13 to 3.47 V)
Parameter Symbol Min. Typ Max. Unit Note
Transmitter
Differential data input swing VINPP 120 800 mVpp 1

Tx Disable input		 H TDH 2.0 Vcc+0.3
V
L TDL 0 0.8

Tx Fault output		 H TFH 2.0 Vcc+0.3
V
2
L TFL 0 0.8
Input differential impedance Rin 100 Ω
Receiver
Differential data output swing Vout,pp 340 650 800 mVpp 3

Rx Los Output		 H VOH 2.0 Vcc+0.3
V
2
L VOL 0 0.8

Optical Characteristics (TOP(C) = 0 to 70 ℃,TOP(I) =-40 to 85 ℃,VCC=3.13 to 3.47 V)
Parameter Symbol Min. Typ Max. Unit Note
Transmitter
Operating Wavelength λ 840 850 860 nm
Ave. output power (Enabled) PAVE -8.2 2.4 dBm
Side-Mode Suppression Ratio SMSR 30 dB
Extinction Ratio ER 2 dB
RMS spectral width(-20dB) Δλ 1 nm
Relative Intensity Noise RIN -130 dB/Hz
Receiver
Operating Wavelength 840 850 860 nm
Stressed Receiver Sensitivity(OMA)
RsenS
-5.2
dBm
Average Receiver Power Pimax -10.3 3 dBm 1
LOS Assert Pa -30 dBm
LOS De-assert Pd -12 dBm
LOS Hysteresis Pd-Pa 0.5 5 dB
