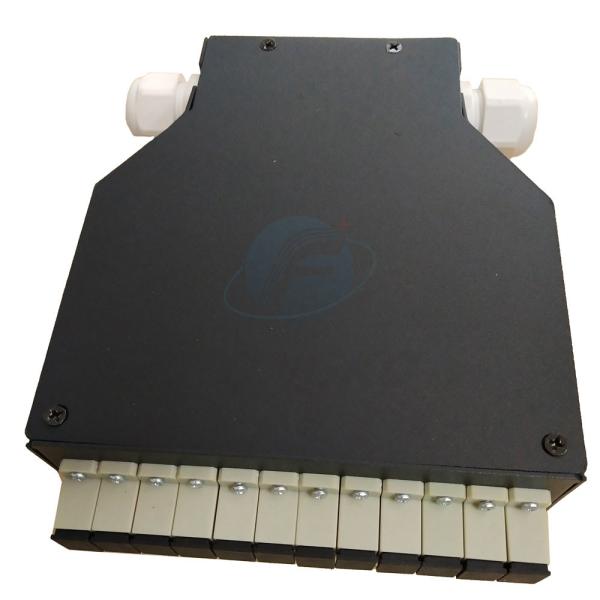

Black 12 Port SC/APC DIN Rail FTTH Terminal Box Patch Panel
Black 12 Port SC/APC DIN Rail FTTH Terminal Box Patch Panel
Black 12 Port SC/APC DIN Rail FTTH Terminal Box Patch Panel
Black 12 Port SC/APC DIN Rail FTTH Terminal Box Patch Panel
Black 12 Port SC/APC DIN Rail FTTH Terminal Box Patch Panel
Black 12 Port SC/APC DIN Rail FTTH Terminal Box Patch Panel
Black 12 Port SC/APC DIN Rail FTTH Terminal Box Patch Panel
Black 12 Port SC/APC DIN Rail FTTH Terminal Box Patch Panel
Black 12 Port SC/APC DIN Rail FTTH Terminal Box Patch Panel
Black 12 Port SC/APC DIN Rail FTTH Terminal Box Patch Panel
Black 12 Port SC/APC DIN Rail FTTH Terminal Box Patch Panel
Black 12 Port SC/APC DIN Rail FTTH Terminal Box Patch Panel
Black 12 Port SC/APC DIN Rail FTTH Terminal Box Patch Panel
Black 12 Port SC/APC DIN Rail FTTH Terminal Box Patch Panel
Black 12 Port SC/APC DIN Rail FTTH Terminal Box Patch Panel
Black 12 Port SC/APC DIN Rail FTTH Terminal Box Patch Panel
Specifications
Model Number :
FKTER-005
Place of Origin :
China
Brand Name :
Fongko
MOQ :
50 Pieces
Price :
Negotiatable
Type :
Fiber optic terminal box
Network :
FTTH FTTX
Product name :
Fiber Optical Terminal Box
Material: :
Metal
Waterproof :
IP55
Working temperature :
-40℃~+85℃
Relative humidity :
≤85%(+30℃)
Insertion loss :
≤0.2dB
Color :
Black
Max Capacity :
12Ports
Description
Product Description
Din-rail Mount Fiber Splice Box are designed for either to support termination or fusion splicing of the fibers. The Din-rail
Splice unit can be loaded with a variety of adapters like ST, SC and LC. This Din-rail Splice Box has compact and ruggedly
designed, made of aluminum (powder coated), and contains a clip for DIN RAIL mounting.DIN Rail Fiber optic terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for
mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.

Features

Suitable for industrial applications.
Cold-roll steel, electrostatic painting
Suitable for different adapters: FC, SC, ST, LC …
2pcs cable entry/exit ports; 12pcs pigtail entry/exit ports
Splicing module of 12 fibers inside
Max. 12pcs adapters can be loaded

Applications

Internal application
Data Center or telecommunications networks
For use in Multi-dwelling units or demarcation points within a network
Used in FTTH, Telecommunications, CATV
Suitable for Pigtail, ribbon and bunch cable connect distribution
Used for wall-mounted applications
