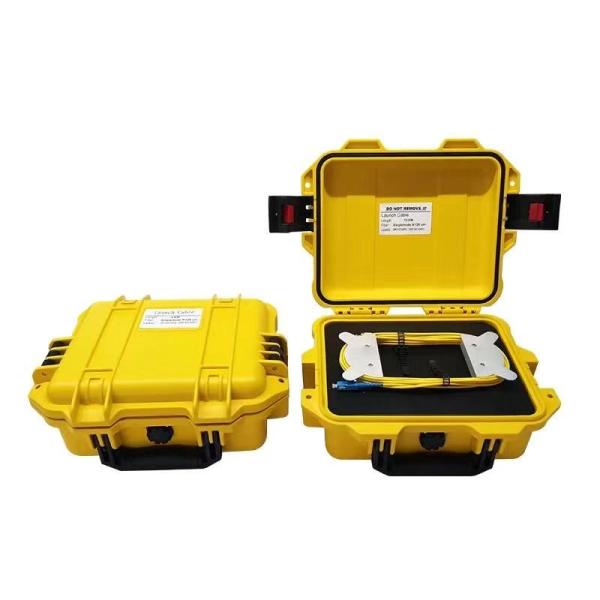

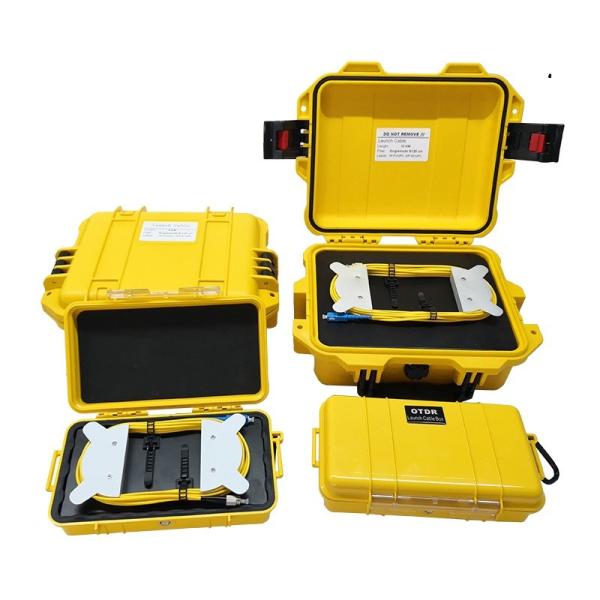

OTDR Launch Fiber Box 500M/1KM/2KM SC APC LC UPC Connector SM OTDR Launch Cable Box
OTDR Launch Fiber Box 500M/1KM/2KM SC APC LC UPC Connector SM OTDR Launch Cable Box
OTDR Launch Fiber Box 500M/1KM/2KM SC APC LC UPC Connector SM OTDR Launch Cable Box
OTDR Launch Fiber Box 500M/1KM/2KM SC APC LC UPC Connector SM OTDR Launch Cable Box
OTDR Launch Fiber Box 500M/1KM/2KM SC APC LC UPC Connector SM OTDR Launch Cable Box
OTDR Launch Fiber Box 500M/1KM/2KM SC APC LC UPC Connector SM OTDR Launch Cable Box
OTDR Launch Fiber Box 500M/1KM/2KM SC APC LC UPC Connector SM OTDR Launch Cable Box
OTDR Launch Fiber Box 500M/1KM/2KM SC APC LC UPC Connector SM OTDR Launch Cable Box
Specifications
Brand Name :
No
Model Number :
FKEQU-001
Certification :
RoHS
Place of Origin :
China
MOQ :
1
Price :
Negotiatable
Payment Terms :
T/T, L/C
Delivery Time :
4-6 working days
Product name :
OTDR Launch Cable Box
Connector :
SC/LC/FC/ST
Wavelength :
1310nm/ 1550nm
Color :
Yellow
Cable Length :
Customized
Size :
30.4CM*24.8CM*12CM
Fiber Type :
Single Fiber Single Mode
Description

OTDR Launch Fiber Box 500M/1KM/2KM SC APC LC UPC Connector SM OTDR Launch Cable Box

OTDR Launch cable is designed to aid in the testing of fiber optic cable when using an OTDR. The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR's) to help minimize the effects of the OTDR's launch pulse on measurement uncertainty. Available in different configurations and fiber lengths.

Complied with or exceeds Standard

* ITU-T G652.D, G656.A
* ITU-T G651.1 OM1 OM2 OM3 OM4
* IEC60793-2-10 Type A1a.1/A1b OM1/OM2, Type A1a.2 OM3, Type A1a.3 OM4
* Telcordia (formerly Bellcore) GR-326-CORE
* RoHS Compliant Directive 2011/65/EU

Feature

* Standard boxes along with custom configurations for OTDR applications.
* Compact and rugged packaging.
* Portable for field use.
* Prevents fiber damage and ensures accurate results.
* Pulse suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration.
* Compound latch for positive seal and easy opening with locking feature.
* Water and dust prove allowing the unit to be taken into almost any environment.
* Case can house up to 2,000 meters of fiber.
* Auto Purge Valve for changes in altitude and temperature.

Applications

* Use as OTDR launch/receive cable.
* Test link loss with an OTDR.
* Measure insertion loss and reflectance of near/far end connector.
* Pulse suppressor for the first reflection at the beginning of a fiber.
Mechanical & Environmental Characteristics

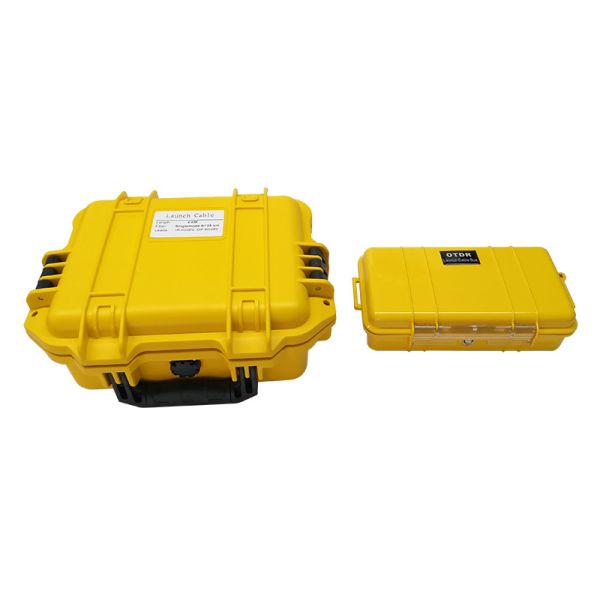

Dimension 1 (The small size)
23.8CMx 14.1CM x 6.7CM
Dimension 2 (Large size)
30.4CMx 24.8CM x 12CM
Material
SR Polypropylene
Color
Yellow
Weight
0.75kg/3.5/kg without fiber
Packaging
Rugged, hard-shell transit case
Storage Temperature
-40O to +85O C
Operating Temperature
-40O to +85O C
Humidity
0 to 95%, non-condensing
Fiber & Connector Characteristics
Fiber Types
G652D, G657A, OM1, OM2, OM3, OM4
Fiber Length (m)
100 up to 20000 (max)
Lead Length
2 Meters, 3mm buffer
Typical Loss
<0.5dB @ 1310 for 1000 meters
Connector Type
SC/LC/FC/ST
Polish
PC, UPC, APC
Return Loss*
UPC>=50dB, APC>=60dB, PC>=35dB
Repeatability (dB)
<=0.2 (1000 times)
Exchangeability (dB)
<=0.2


OTDR Launch Fiber Box 500M/1KM/2KM SC APC LC UPC Connector SM OTDR Launch Cable BoxOTDR Launch Fiber Box 500M/1KM/2KM SC APC LC UPC Connector SM OTDR Launch Cable BoxOTDR Launch Fiber Box 500M/1KM/2KM SC APC LC UPC Connector SM OTDR Launch Cable BoxOTDR Launch Fiber Box 500M/1KM/2KM SC APC LC UPC Connector SM OTDR Launch Cable Box
