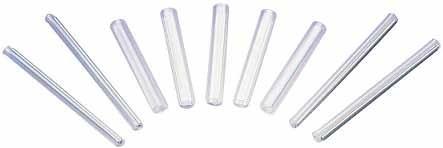

Durable Fiber Optic Protection Sleeve , Fiber Optic Heat Shrink Sleeve
Durable Fiber Optic Protection Sleeve , Fiber Optic Heat Shrink Sleeve
Specifications
Place of Origin :
Zhejiang,China
MOQ :
50 pcs
Payment Terms :
T/T
Delivery Time :
in one week
Shrinking Temperature（℃） :
110 ~ 130
Radial Shrinking Rate (%) :
>50
Axial Shrinking Rate (%) :
<10
Low Temperature Property :
No crackle at -55℃ lasting 4 hours
Normal Operation Temperature（℃） :
-40 ~ +60
Normal Operature Relative Humidity :
≤95%
Spark-over Strength (kV/mm) :
≥20
Tensile Strength (Mpa) :
20
Loss at -40℃ :
0.03dB
Loss at +60℃ RH95% :
0.01dB
Description

Fiber Optic Protection Sleeve Fiber Optical Accessories for FOSC Fiber Protection Sleeve Optic Cable Protection Sleeve

Fiber Optic Protective Sleeve

Durable Fiber Optic Protection Sleeve , Fiber Optic Heat Shrink Sleeve

Genera

Shrinkable sleeve is applied to the optic fiber closure to fix and protect the optic fiber when splicing. The sleeve can be divided into two types (single and mass) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function.Mass means there are several cores for the fiber. So the mass sleeve includes 4cores, 6cores, 8cores, 12cores (for types).

Mass type sleeve materials (Ribbon)

● Hot melt adhesive

● Ceramic reinforcement member

● Heat shrinkable tube

Single type sleeve materials (Bunchy)

● Hot melt adhesive

● Heat shrinkable polyolefin

● Stainless steel needle

Specification

Shrinking Temperature(℃) 110 ~ 130
Radial Shrinking Rate (%) >50
Axial Shrinking Rate (%) <10
Low Temperature Property No crackle at -55℃ lasting 4 hours
Normal Operation Temperature(℃) -40 ~ +60
Normal Operature Relative Humidity ≤95%
Spark-over Strength (kV/mm) ≥20
Tensile Strength (Mpa) 20
Loss at -40℃ 0.03dB
Loss at +60℃ RH95% 0.01dB

Ordering Information

Ordering Information
Type Single FOS Mass FOS

Length

 40mm

40mm
50mm
60mm
Specification

For single core

Stainless reinforcing bar

For multi-cores

Ceramic reinforcing bar
