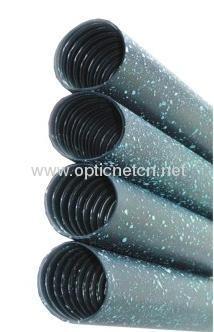

Safety Fiber Optic Protection Sleeve , Fiber Optic Accessories Heavy Wall Tubing
Safety Fiber Optic Protection Sleeve , Fiber Optic Accessories Heavy Wall Tubing
Safety Fiber Optic Protection Sleeve , Fiber Optic Accessories Heavy Wall Tubing
Safety Fiber Optic Protection Sleeve , Fiber Optic Accessories Heavy Wall Tubing
Specifications
Place of Origin :
Zhejiang,China
MOQ :
50 pcs
Payment Terms :
T/T
Delivery Time :
in one week
Application :
FTTH FTTB FTTX Network
Color :
Customized
Type :
Heat Shrinkable
Structure :
Inner tube
Description

Fiber Optic Protection Sleeve Fiber Optical Accessories for FOSC Heavy Wall Tubing Optic Cable Thermo Tube

Thermo Tube

(medium wall tubing with hot melt adhesive)

Safety Fiber Optic Protection Sleeve , Fiber Optic Accessories Heavy Wall Tubing

Specification

Medium Wall Thermo Tube is used for low voltage insulation over lugs and ferrules. Tubes coated on the inside with hot melt adhesive are also used for external protection of joints. On shrinking, the adhesive melts and seals the joints against dust and moisture.
Product performance
Item Test Method Performance
Tensile strength ASTM D638 13 N/mm2
Ultimate elongation ASTM D638 450%
Heat shock 250℃ UL224 pass
Cold bend -30℃ ASTM D2671 pass
Dielectric strength ASTM D149 25KV/mm
Volume resistivity ASTM D257 1x1014 W. cm
Longitudinal change ASTM D2671 Inside ± 10%
Water absorption ASTM D570 < 0.5%
Peeling strength DIN 30672 £125N/25

Product specification

Item

As supplied diameter

(mm)

Diameter after shrinking

(mm)

Wall thickness after shrinking

(mm)
￠8/2 8 2.0 1.8
￠9/3 9 3.0 1.8
￠12/4 12 4.0 2.0
￠16/5 16 5.0 2.2
￠19/5 19 5.0 2.5
￠22/6 22 6.0 2.5
￠28/6 28 6.0 2.5
￠33/8 33 8.0 2.5
￠40/12 40 12.0 2.5
￠55/16 55 16.0 2.7
￠65/19 65 19.0 2.8
￠75/22 75 22.0 3.0
￠85/25 85 25.0 3.0
￠95/25 95 25.0 3.0
￠115/34 115 34.0 3.0
￠140/42 140 42.0 3.0
￠160/50 160 50.0 3.0
￠180/58 175 58.0 3.5
￠215/65 210 65.0 3.5
￠235/75 230 75.0 3.5
