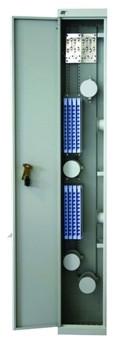

GPX29K Fiber Cross Connect Cabinet , Outdoor Fiber Distribution Cabinet
GPX29K Fiber Cross Connect Cabinet , Outdoor Fiber Distribution Cabinet
Specifications
Model Number :
GPX29K
Place of Origin :
Zhejiang,China
MOQ :
5 pcs
Payment Terms :
T/T
Delivery Time :
in one week
Dimensions (H×W×D) (mm) :
2600×300×300, 2000x300x300
Max. Capacity (F) :
144 / 96
Connectors Loss :
≤0.5dB
Return Loss :
FC/PC ≥ 40 dB, FC/UPC≥ 50 dB, FC/APC ≥ 60 dB
Connector Life Span :
≥ 1000 times
Insulation Resistance :
≥ 1000MΩ/500V (DC)
Dielectric Strength :
≥3000V (DC) /1min, no spark-over and no flying arc
Description

Outdoor Optical Cross Cabinet Fiber Cross Connect Cabinet Fiber Optic Cabinet Optical Distribution Frame (ODF)

Optical Distribution Frame (ODF)

GPX29K Optical Distribution Frame (ODF)

Brief introduction:

GPX29K ODF, open or close design, acts as interface, in fixed or mobile networks, between the exchange and the transmission equipment. GPX29K consists of ONT-116 Splice & Distribution Case (SDC, 72F), the mounting frame or cabinet and all the necessary accessories for ODF.

GPX29K Fiber Cross Connect Cabinet , Outdoor Fiber Distribution Cabinet

Features:

  • Adopting the popular 19” cabinet.
  • 72F Splice & Distribution Case (SDC), combing splice and distribution into one unit.
  • Stable equipments for fixing, stripping and grounding of the optical fibers.
  • Suitable for ribbon and bunchy optical fibers.
  • Suitable for installation of FC, SC and ST adaptors.
  • Optical fibers, fiber optic pigtails and patch cords are separate, without disturbing each other.

General specification:

Model

Dimensions

(H×W×D) (mm)

 Max. Capacity (F)
GPX29K-26 2600×300×300 144
GPX29K-20 2000x300x300 96

Besides, Due to its modular design, capacity can be tailored at the customers’ requirements.

Technical specification:

  • Connectors loss≤0.5dB
  • Return loss: FC/PC ≥ 40 dB, FC/UPC≥ 50 dB, FC/APC ≥ 60 dB
  • Connector life span ≥ 1000 times
  • Insulation resistance ≥ 1000MΩ/500V (DC)
  • Dielectric strength ≥3000V (DC) /1min, no spark-over and no flying arc.
Product tags

fiber distribution cabinet

,

fiber optic distribution cabinet

,

fiber entrance cabinet
