Specifications
Place of Origin :
Zhejiang,China
MOQ :
20 pcs
Payment Terms :
T/T
Delivery Time :
in one week
Operating Wavelength (nm) :
1260 ~ 1650
Directivity (dB) Min. :
55
Return Loss (dB) Min. :
55 (50)
Operating Temperature (℃) :
-40 ~+85
Storage Temperature (℃) :
-40 ~+85
Fiber Length :
1m or custom specified length
Fiber Type :
Corning SMF-28e(G657A)Optical fiber
Power Handling (mW) :
300
Description

PLC Splitter (S.S. Tube Package), Fiber PLC Splitter Fiber Optic PLC Splitter

PLC Splitter (S.S. Tube Package)

Applications

  • Fiber to the Premise (FTTP)
  • Fiber to the Home (FTTH)
  • Passive Optical Networks (PON)
  • Local Area Network (LAN)
  • Cable Television (CATV)
  • Test Equipment

Features:

  • Good Uniformity and Low Insertion Loss
  • Low Polarization Dependent Loss
  • Excellent Environment Stability
  • Excellent Mechanical
  • Stability Telecordia GR-1221 and GR-1209

Performance Specifications

Parameter Specification
Operating Wavelength (nm) 1260 ~ 1650
Type 1x2 1x4 1x8 1x16 2x4 2x8 2x16 1x32 2x32 1x64 2x64
Insertion Loss (dB) Max. <4.0 <7.3 <10.8 <13.8 <7.6 <11.2 <14.5 <17.2 <18.2 <20.5 <21.0
Uniformity (dB) Max. <0.6 <0.6 <0.8 <1.2 <0,8 <1.5 <2.0 <1.5 <2.5 <2.5 <3.0
PDL(dB) Max. <0.2 <0.2 <0.2 <0.3 <0.3 <0.3 <0.4 <0.3 <0.4 <0.3 <2.5
Directivity (dB) Min. 55
Return Loss (dB) Min. 55 (50)
Operating Temperature (℃) -40 ~+85
Storage Temperature (℃) -40 ~+85
Fiber Length 1m or custom length
Fiber Type Corning SMF-28e(G657A)Optical fiber
Connector Type Customer specified
Power Handling (mW) 300

1. Measured at room temperature and excludes conector loss

2. For devices with connectors, insertion loss will be 0.3dB higher, Return Loss >55Db(APC), >50dB(UPC)

SS.Tube1

Custom PLC Optical Splitter S.S. Tube Package Fiber Optic Plc Splitter

Output Ribbon fiber without fanout (G1)

Custom PLC Optical Splitter S.S. Tube Package Fiber Optic Plc Splitter

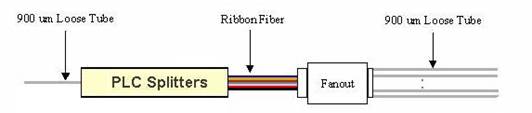

Output Ribbon fiber with fanout and 900 um loose tube(G2)

SS.Tube2

Custom PLC Optical Splitter S.S. Tube Package Fiber Optic Plc Splitter

Output fiber with 900 um loose tube without fanout (G3)

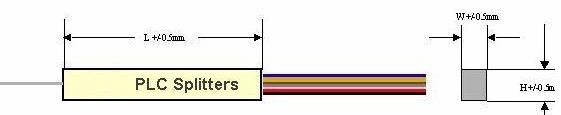

Module Dimension

PLC Type 1x2 1x4 2x4 1x8 2x8 1x16 2x16 1x32 2x32 1x64
S.S tube 1 (mm) 4x4x40 4x4x40 4x4x55 4x4x40 4x4x55 4x7x50 4x7x60 4x7x50 4x7x60 4x7x60
S.S tube 2 (mm) 4x12x60 6x20x80 8x20x80

Ordering Information

PLC Input output count Fiber Cable Type Connector type Fiber length package
PLC

102=1x2

104=1x4

108=1x8

116=1x16

132=1x32

164=1x64

204=2x4

208=2x8

216=2x16

232=2x32

0=bare fiber

09=900um

0=None

1=SC/PC

2=SC/APC

3=FC/PC

4=FC/APC

5=ST

6=LC

7=LC/APC

8=E2000

S=special

0=0.5m

1=1m

2=1.5m

3=2m

4=3m

S=special

T1=SS. tube 1

T2=SS. tube 2
