PBT Fiber Patch Cord Connectors
PBT Fiber Patch Cord Connectors
PBT Fiber Patch Cord Connectors
PBT Fiber Patch Cord Connectors
PBT Fiber Patch Cord Connectors
PBT Fiber Patch Cord Connectors
Specifications
Brand Name :
CLX
Model Number :
FC-SM-SX-APC
Place of Origin :
Guangdong,China
MOQ :
200 Piece
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000 Piece/week
Delivery Time :
5-8 work days
Packaging Details :
Bags packed by Carton ,OEM bag/Carton optional
Type :
Fiber optic connector
Fiber Type :
SM MM
Insertion Loss :
0.2dB(SM), 0.3dB(MM)
Material :
PBT
Return Loss :
PC≥45dB, UPC≥50dB,APC≥60dB
Application :
FTTH FTTB FTTX Network,Data center,CATV
Description

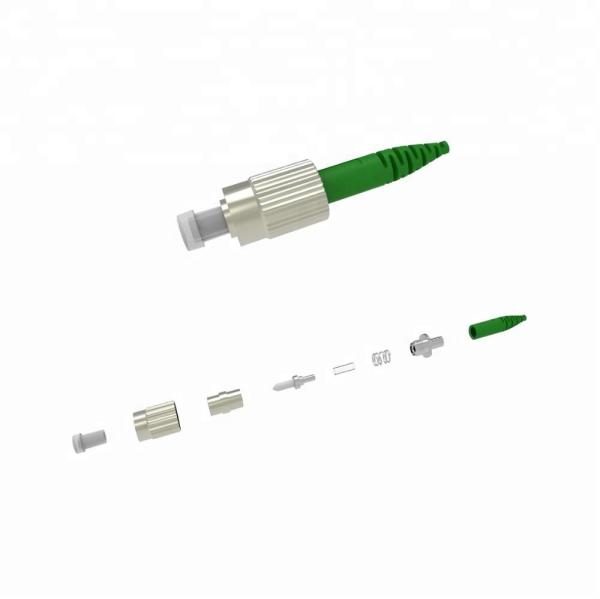

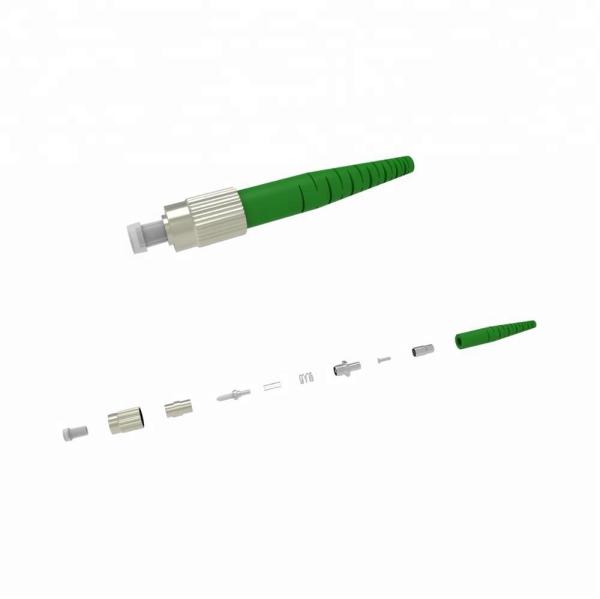

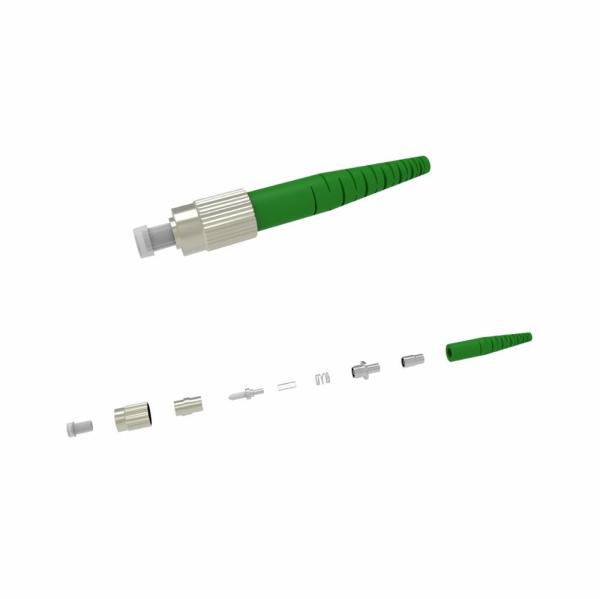

FC Fiber Optic Connector Parts FC Fiber Connector with 0.9 2.0 3.0mm boot

Model:SX-SM-FC-APC

Place of Origin:ShenZhen,China

Description

FC connector is best used in sinlge mode applications and known for exceptionally accurate positioning, the FC or fixed connection connector is designed for use in unstable environments because of their threaded barrel housing which provides a secure connection.

Both FC pre-assembled connector and connector kit (unassemled) are vailable.

Feature

1. RoHS copmliant.

2. Pre-assembled one piece designed to reduce aessembling time

3. Optical performance 100% factory tested

4. Utility Patent, ROHS certificate

Specifications

Parameter Unit FC,SC,LC ST,MU MT-RJ,MPO
SM MM SM MM SM MM
PC UPC APC PC PC UPC PC PC UPC PC
Insertion loss dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥50 ≥50 ≥30 ≥45 ≥50 ≥35
Operating Wavelength nm 1310,1550 1310,1550 1310,1550
Exchangeability dB ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2
Operating temperature ℃ -40～+75 -40～+75 -40～+75
Storage temperature ℃ -40～+85 -45～+85 -45～+85
Cable diameter mm φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9 φ3.0,φ2.0,φ0.9

Application :

1. Telecommunication networks.

2. Local area networks; CATV.

3. High density data center system networks.

PBT Fiber Patch Cord ConnectorsPBT Fiber Patch Cord ConnectorsPBT Fiber Patch Cord ConnectorsPBT Fiber Patch Cord Connectors
