LC Uniboot DX MM OM3 OM4 Duplex 3.0mm Connector For Fiber Optic Patchcord Making

Model:UNIBOOT-LC

Place of Origin:ShenZhen,China

Description

Optical fiber connector terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass.

They are used to join optical fibers where a connect/disconnect capability is required, are used in telephone exchanges, for customer premises wiring, and in outside plant applications to connect equipment and cables, or to cross-connect cables.

Each fiber optic connector is functionally tested before shipping.

Feature

* High performance single mode and multi mode connectors
* Minimum termination time
* High system durability, stability and repeatability
* Simplex or duplex models

* Low insertion Loss and Back reflection loss

* Compact, pull-proof design

* Behind-the-wall style short connector

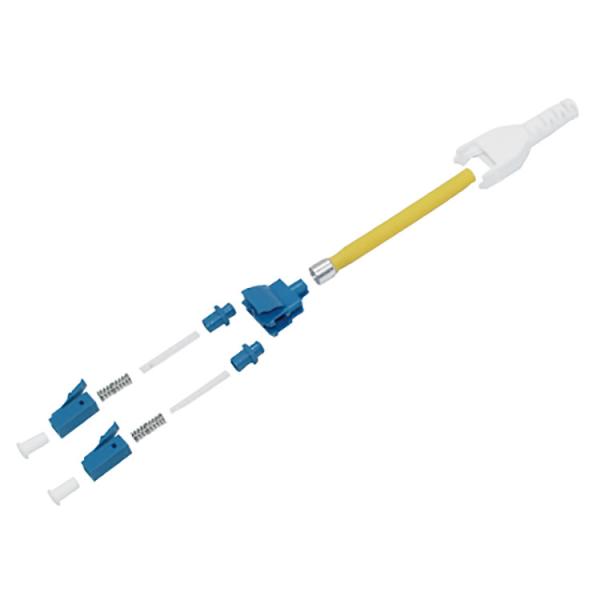

Connector Parts:

Dust Cap, Outer Housing, Ferrule Assembly, Spring, Small Transparent Tube, Inner Frame, Clip, Riveting Ring, Heat Shrink Tube, White Boot

Housing Optional Colors: Blue, Green, Beige, Aqua, Violet, Lemon Green (Color can be customized)

Specifications

We can produce various of kinds of Single Mode and Multi-mode fiber optic connectors for ST, SC, FC, LC, E2000, MPO, MU and MTRJ applications. Both pre-assembled connector and connector kits are available. Each fiber optic connector is functionally tested before shipping..

There are various kinds of fiber adapters for your choose:

Fiber Count: Simplex, Duplex
Connector Fiber Mode: Single mode, Multi-mode
Connector Type: E2000, FC, LC, SC, ST, MPO, MTRJ, MU
Polish: PC, UPC, APC
Cable Diameter: 0.9mm/ 1.2mm/ 2.0mm/ 3.0mm
