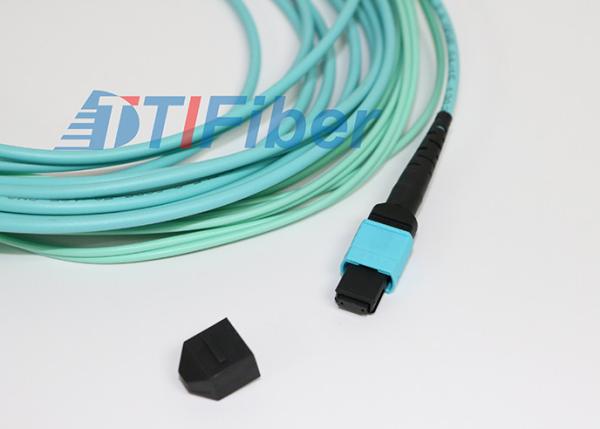

12 Core OM3 OM4 MPO Multimode Fiber Patch Cable for Telecom Network
12 Core OM3 OM4 MPO Multimode Fiber Patch Cable for Telecom Network
12 Core OM3 OM4 MPO Multimode Fiber Patch Cable for Telecom Network
12 Core OM3 OM4 MPO Multimode Fiber Patch Cable for Telecom Network
12 Core OM3 OM4 MPO Multimode Fiber Patch Cable for Telecom Network
12 Core OM3 OM4 MPO Multimode Fiber Patch Cable for Telecom Network
Specifications
Brand Name :
TTI
Model Number :
MPO
Certification :
ROHS, SGS, ISO9001
Place of Origin :
China Mainland
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, , PayPal, Monthly
Supply Ability :
7000pcs/Day
Delivery Time :
2-4 dayscs/Day
Packaging Details :
1pcs/PE bag
Connector :
MPO
Jacket :
PVC, LSZH, OFNP, OFNR
Ferrule End -face :
UPC,APC
Housing Color :
Blue, Beige, Aqua
Cable Length :
1M; 2M; 3M Etc., Can Be Customized
Fiber Mode :
Multimode
Description

12 Core OM3 OM4 MPO Optical Fiber Patch Cord for Telecom Network

Features:

  1. Good durability
  2. Good exchangeability
  3. High temperature stability
  4. Low insertion loss and back reflection loss

Applications:

  1. Active dvice termination
  2. Telecommunication networks
  3. Local Area Networks(LANs)
  4. Data Processing networks
  5. Test Equipment
  6. Premise installations

Specification:

Parameter Single Mode Multi Mode
Basic Fiber connector FC, SC, LC, ST, MU, MTRJ, MPO
Ferrule End-face PC UPC APC UPC
Insertion Loss ≤0.2dB ≤0.2dB ≤0.3dB ≤0.3bB
Return Loss ≥50dB ≥55dB ≥60dB ≥35dB
Ceramic Ferrule Specification 125.5um concentricity deviations:<=1um 127um concentricity deviations:<=3um
Suitable Fiber 9/125um 50/125um,62.5/125um
End-face Geometry Radius of Curvature 7~25mm 5~12mm N/A
Fiber Protrusion ≤50nm ≤100nm N/A
Fiber Under Cut ≤100nm ≤100nm N/A
Apex offset ≤50um
Mechanical Exchangeability ≤0.2dB
Salt Spray ≤0.1dB
Drop ≤0.2dB(1.5M, 5 drops)
Vibration IL ≤0.2dB(550Hz, 1.5mm)
Repeatability ≤ 0.1dB(1000 times)
Durability > 1000 times
Operating Temperature -40°C ~ +85°C

Packing:

One piece per PE bag with stick label (we could add customer's logo in the label.)

Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

12 Core OM3 OM4 MPO Multimode Fiber Patch Cable for Telecom Network
12 Core OM3 OM4 MPO Multimode Fiber Patch Cable for Telecom Network 12 Core OM3 OM4 MPO Multimode Fiber Patch Cable for Telecom Network
