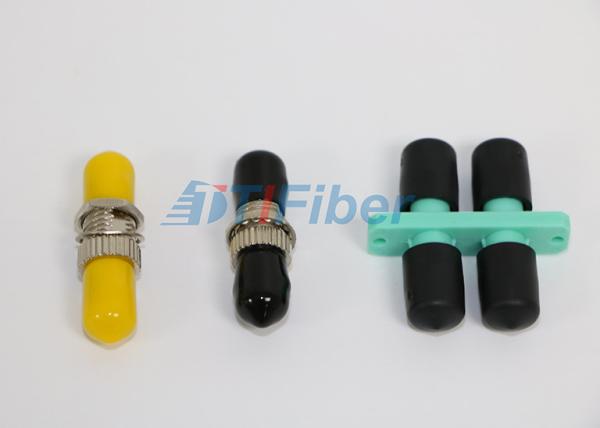

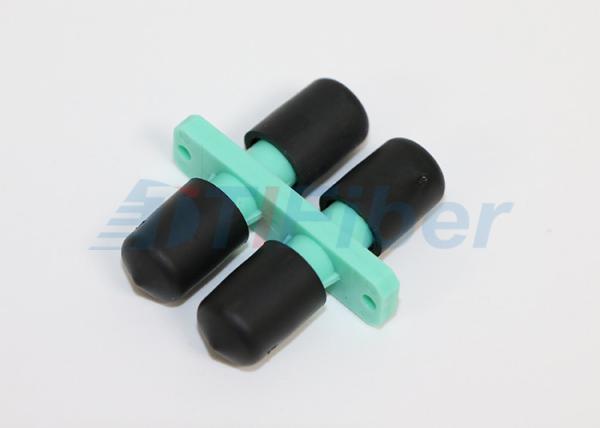

Compact Duplex ST Fiber Optic Connector With Ceramic Or Bronze Sleeve
Compact Duplex ST Fiber Optic Connector With Ceramic Or Bronze Sleeve
Compact Duplex ST Fiber Optic Connector With Ceramic Or Bronze Sleeve
Compact Duplex ST Fiber Optic Connector With Ceramic Or Bronze Sleeve
Compact Duplex ST Fiber Optic Connector With Ceramic Or Bronze Sleeve
Compact Duplex ST Fiber Optic Connector With Ceramic Or Bronze Sleeve
Specifications
Brand Name :
TTI
Model Number :
FOA-ST
Certification :
ROHS, SGS, ISO9001
Place of Origin :
Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000pcs/day
Delivery Time :
2-3 days
Packaging Details :
50pcs/Case
Polish Type :
PC, UPC
Mode :
Single mode: Multi mode
Material :
Plastic, Metal
Type :
ST
Sleeve :
Ceramic, Bronze
Description

Compact Duplex ST Fiber Optic Connector With Ceramic Or Bronze Sleeve

Quick Details

  1. Type: ST Duplex
  2. Mode: Singlemode, Multimode
  3. Structure: Matel and Plastic
  4. Cap: Red cap, Yellow cap, Black cape
  5. Housing: Blue and Beige Plastic housing
  6. Sleeve: Ceramic sleeve, Bronze sleeve

Description:

ST mode used Bond with bayonet locking structure.

Features:

  1. Low insertion and back reflection loss
  2. High precision alignment
  3. Compact design
  4. Environmentally stable

Application:

  1. Telecommunication networks
  2. Test equipment; Metro
  3. Local Area Networks
  4. Data Processing Networks
  5. Fiber distribution frame, Mounts in Fiber Optic Wall Mount and Rack Mount Cabinets

Specification:

Type SC/FC/ST/LC/MU/MTRJ/MPO
Insertion Loss(dB) SM≤0.2dB, MM≤0.3dB
Repeatability(dB) ≤0.1dB
Mechanism Durability(500 cycles, dB) ≤0.2dB
Temperature Range -40°C-+85°C
Material of sleeve Zirconia or Bronze

Reliability testing:

Item Test Name Additional Insertion Loss Additional Return Loss
1 Mechanical durability <0.2dB <5dB
2 Repeatability <0.2dB <5dB
3 Lock strength <0.2dB <5dB
4 Low strength <0.2dB <5dB
5 High temperature <0.2dB <5dB
6 Steaming <0.2dB <5dB
7 Temperature cycle <0.2dB <5dB
8 Vibration <0.2dB <5dB
9 Drop <0.2dB

<5dB

Ordering Information:

ST/UPC-ST/UPC-SM-SX

Step 1: Connector type: FC, SC, LC, ST, MTRJ, MU, MPO

Step 2: Ferrule End-face: PC, UPC, APC

Step 3: Type: Single-mode, Multimode (MM, OM3, OM4)

Step 4: Mode: Simplex, Duplex

Step 5: Sleeve: Ceramic, Bronze

Step 6: Housing material: Plastic, Metal

Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

Our service:

  1. Standard and customized OEM products from small to large quantity are welcome.
  2. Compliance with global environmental industry with RoHS and SGS standards.
  3. All products are 100% fully tested by our technical expertise.


Compact Duplex ST Fiber Optic Connector With Ceramic Or Bronze Sleeve
