12 Core Fiber Optic Ethernet Cable Outdoor GYTA Armoured For Direct Buried
12 Core Fiber Optic Ethernet Cable Outdoor GYTA Armoured For Direct Buried
12 Core Fiber Optic Ethernet Cable Outdoor GYTA Armoured For Direct Buried
12 Core Fiber Optic Ethernet Cable Outdoor GYTA Armoured For Direct Buried
Specifications
Brand Name :
TTI
Model Number :
FOC-GYTA
Certification :
ROHS, SGS
Place of Origin :
Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A,
Supply Ability :
10000M/Day
Packaging Details :
Wooden drum with test report
Delivery Time :
3-5 days
Name :
Fiber Optic Cable
Model Number: :
GYTA
Mode :
Single mode, Multimode
Application :
Outdoor
Color :
Black or Others
Loose Tube :
PBT
Amoured :
Steel Tape
Fiber core :
2~144 cores
Description

Outdoor GYTA Armoured 12 core Fiber Optic Cable for Direct Buried

Description:

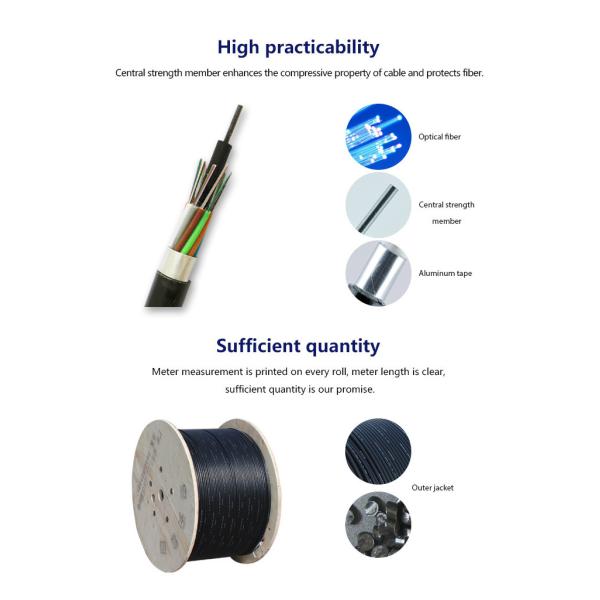

GYTA Aluminum Polyethylene Laminate (APL) is applied around the cable core, which isfilled with the filling compound to protect it from water ingress.

Features:

  1. Good mechanical and temperature performance
  2. High strength loose tube that is hydrolysis resistant
  3. Soft,flexible,easy to splice,and with big capacity date transmission
  4. Meet various requirements of market and clients
  5. Cable core filled with cable gel or water blocking tape,water blocking yarns

Application:

  1. Junction communication system
  2. Local area network systems
  3. Usable in Duct or Aerial
  4. Long-haul communication system

Technical Parameters:

Cable Type Fiber Count Tubes Fillers Cable Diameter
(mm)		 Cable Weight
(kg/km)		 Tensile Strength (N) Crush Resistance
(N/100mm)		 Bending Radius
(mm)
Long/Short Term Long/Short Term Static/Dynamic
GYTA-2~6 2~6 1 4 9.7 90 600/1500 300/1000 10D/20D
GYTA-8~12 8~12 2 3 9.7 90 600/1500 300/1000 10D/20D
GYTA-14~18 14~18 3 2 9.7 90 600/1500 300/1000 10D/20D
GYTA-20~24 20~24 4 1 9.7 90 600/1500 300/1000 10D/20D
GYTA-26~30 26~30 5 0 9.7 90 600/1500 300/1000 10D/20D
GYTA-32~36 32~36 6 0 10.2 104 1000/3000 300/1000 10D/20D
GYTA-38~48 38~48 4 1 11 117 1000/3000 300/1000 10D/20D
GYTA-50~60 50~60 5 0 11 117 1000/3000 300/1000 10D/20D
GYTA-62~72 62~72 6 0 11.5 126 1000/3000 300/1000 10D/20D
GYTA-74~84 74~84 7 1 13.4 154 1000/3000 300/1000 10D/20D
GYTA-86~96 86~96 8 0 13.4 154 1000/3000 300/1000 10D/20D
GYTA-98~108 98~108 9 1 14.8 185 1000/3000 300/1000 10D/20D
GYTA-110~120 110~120 10 0 14.8 185 1000/3000 300/1000 10D/20D
GYTA-122~132 122~132 11 1 16.9 228 1000/3000 300/1000 10D/20D
GYTA-134~144 134~144 12 0 16.9 228 1000/3000 300/1000 10D/20D

Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
