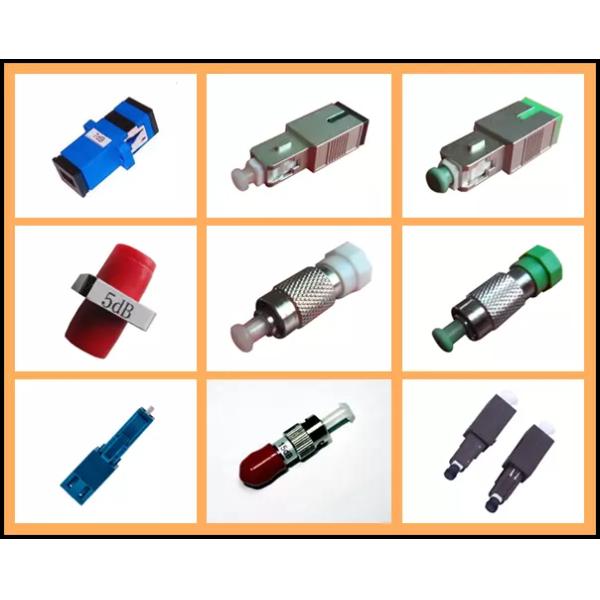

SC APC FTTH Variable Optical Attenuator Plug Type Female Male Fixed Multimode
SC APC FTTH Variable Optical Attenuator Plug Type Female Male Fixed Multimode
SC APC FTTH Variable Optical Attenuator Plug Type Female Male Fixed Multimode
SC APC FTTH Variable Optical Attenuator Plug Type Female Male Fixed Multimode
SC APC FTTH Variable Optical Attenuator Plug Type Female Male Fixed Multimode
SC APC FTTH Variable Optical Attenuator Plug Type Female Male Fixed Multimode
Specifications
Brand Name :
TTI
Model Number :
Fiber Optic Attenuator
Certification :
CE RoHS ISO9001
Place of Origin :
China
MOQ :
Negotiable
Supply Ability :
50000 pieces per day
Delivery Time :
5-8 work days
Packaging Details :
PE bag and carton
Application :
Telecommunication
Color :
Customized
Fiber Type :
SM/MM
Ferrule Type :
Zirconia Ceramic
Optical Connector :
FC SC LC ST
Price :
Negotiable
Description

Description:
Fiber Optic Attenuator is used in a wide variety of applications and can satisfy almost any requirement where a reduction in power is needed.
Features:

  • Complied with Telcordia (GR-910-CORE and GR-1221-CORE).
  • Visual Tested with 800X magnification: Three Times (After Polishing, Before Assembly, Before Delivery)
  • 100% Geometrical Inspection: Radius(10-25mm/PC), Offset(0-50um), Fiber Height(+/-50nm)
  • High Optical Power Endurance: up to 1000mW (=1W)
  • High Reliability: Specified for Over 500 mating


Specification:

Item Parameter
Model Fixed, Female&Male, In-line, Variable
Operating Wavelength SM:1310/1550nm MM: 850/1300nm
Attenuation Range 1~30dB
Return Loss PC:≥50dB UPC: ≥55dB APC: ≥60db
Attenuation Tolerance ≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB)
Maximum Optical Input Power 1000mW
Polarization Dependent Loss ≤0.1dB
Working Temperature -40°C~+75°C
Storage Temperature -40°C~+ 85°C
Humidity 95%RH

Application

CATV

Telecommunication networks

Test equipment

Metro

Local Area Networks(LANs)

Data processing networks

Multimedia

Gigabit Ethernet

Active device/Transceiver

Features

Bellcore Compliant

Wavelength Independent (DWDM)

Durability (well over 100mw)

Simple and Reliable structure

Ordering Information:

SC/APC-MM-4dB-Female&Male

Step 1: Connector type: FC, SC, LC, ST, MU

Step 2: Ferrule End-face: PC, UPC, APC

Step 3: Type: Single-mode, Multimode

Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB

Step 5: Mode: Fixed, Female&Male, In-line, Variable

Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300n

SC APC FTTH Variable Optical Attenuator Plug Type Female Male Fixed MultimodeSC APC FTTH Variable Optical Attenuator Plug Type Female Male Fixed Multimode
