Fiber Optic Cable Singlemode Figure 8 Loose Tube Steel Wire Armored 6-288 Cores
Fiber Optic Cable Singlemode Figure 8 Loose Tube Steel Wire Armored 6-288 Cores
Fiber Optic Cable Singlemode Figure 8 Loose Tube Steel Wire Armored 6-288 Cores
Fiber Optic Cable Singlemode Figure 8 Loose Tube Steel Wire Armored 6-288 Cores
Specifications
Brand Name :
TTI
Model Number :
GYXTC8S
Certification :
IEC60794
Place of Origin :
Shenzhen, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C,Paypal
Supply Ability :
2000m/day
Delivery Time :
3-5 working days
Packaging Details :
package with wooden drum
Product name :
GYXTC8S
Fiber count :
6-288 cores
Laying method :
Self-surpting aerial
Temperature range :
-40~+70
Application :
LAN communication
Standard :
IEC60794
Package :
wooden drum
Jacket :
PE sheath
Core type :
Singlemode
Color :
Black
Description

Fiber Optic Cable Singlemode Figure 8 Loose Tube Steel Wire Armored Cable

Description

The fibers, 250μm, are positioned in a loose tube made of PBT, the tubes are filled with a water-resistant filling compound. Loose tubes filled with water proof compound to ensure compact and longitudinally water blocking ,this part of cable accompanied with the steel wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.

Characteristics

· High tensile strength of stranded wires meet the requirement of self-supporting


· Good mechanical and temperature performance


· High strength loose tube that is hydrolysis resistant


· Special tube filling compound ensure a critical protection of fiber


· The following measures are taken to ensure the cable watertight:


· Loose tube filling compound


· 100% cable core filling


· steel tape moisture barrier

Specification

Fiber count 12F
SM fiber Fiber type G652D Concentricity error ≤0.5um
MFD 8.6～9.8um Cladding non-circularity ≤0.7%
Cladding diameter 124.8±0.7um Fiber color standard spectrum
Loose tube Material PBT Diameter 2.2±0.1mm
Water blocking system Material Water blocking tape
Armor Material Corrugated steel tape
Mental strength member Material steel wire Diameter 1.6mm
Outsheath Material MDPE
Diameter 3.8mmx7.5mm(±0.4)-12.5mm(±1)
Tensile strength Long term(N) 600N
Short term(N) 1500N
Crush load Long term(N) 600N/100mm
Short term(N) 1500N/100mm
Bending radius Dynamic 20D
Static 10D

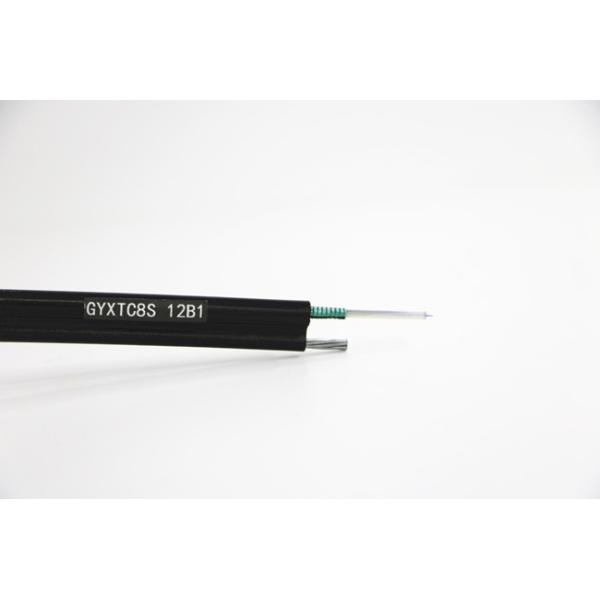

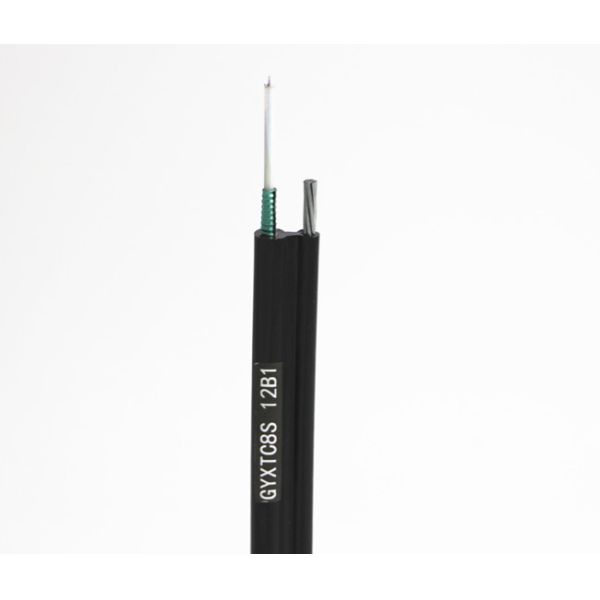

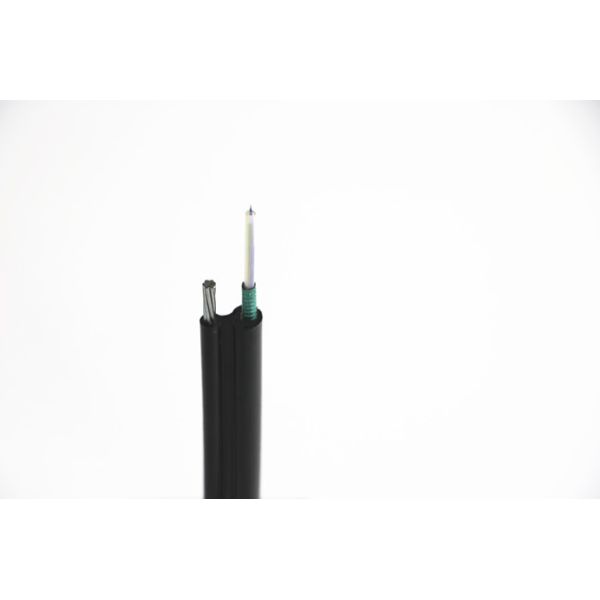

Product pictures

Fiber Optic Cable Singlemode Figure 8 Loose Tube Steel Wire Armored 6-288 Cores

Fiber Optic Cable Singlemode Figure 8 Loose Tube Steel Wire Armored 6-288 Cores

Fiber Optic Cable Singlemode Figure 8 Loose Tube Steel Wire Armored 6-288 Cores
