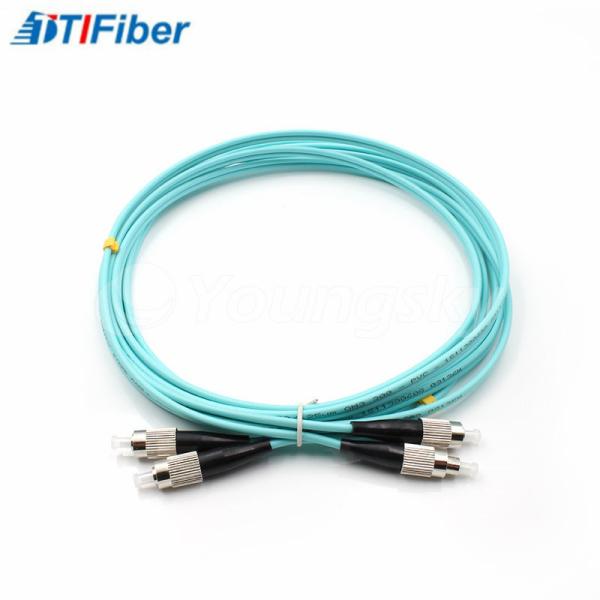

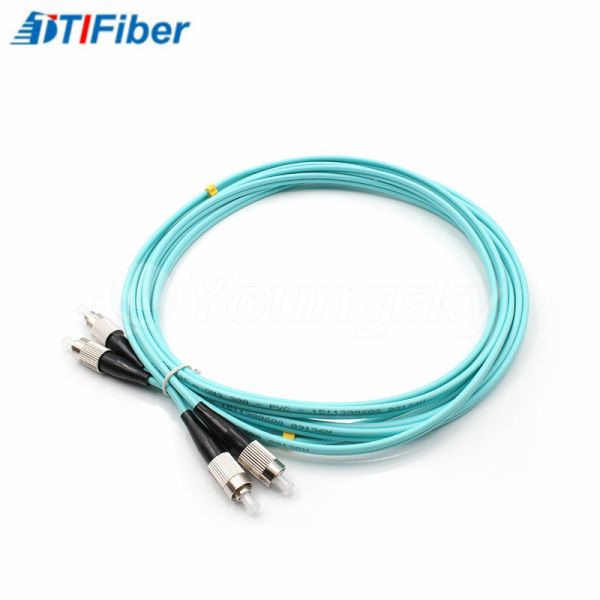

Indoor Duplex OM3 Fiber Optic Patch Cables Jumper MM FC - FC UPC Low Insertion Loss
Indoor Duplex OM3 Fiber Optic Patch Cables Jumper MM FC - FC UPC Low Insertion Loss
Indoor Duplex OM3 Fiber Optic Patch Cables Jumper MM FC - FC UPC Low Insertion Loss
Indoor Duplex OM3 Fiber Optic Patch Cables Jumper MM FC - FC UPC Low Insertion Loss
Specifications
Brand Name :
TTI
Model Number :
FC - FC
Certification :
ROHS, ISD9001
Place of Origin :
China Mainland
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, , ESCROW, PayPal, Monthly settlement
Supply Ability :
5000pcs/Day
Delivery Time :
in 2-4 days
Packaging Details :
1pcs/PE bag
Model Name :
FC-FC Duplex fiber patch cord
Model :
Singer Mode, Multimode
Fiber Type :
OM1/OM2/OM3/OM4
Connector :
LC/FC/ST/SC
Ploshing :
UPC/APC/PC
Color :
Blue/Pink/Purple..
Insertion loss :
≤0.3dB
Return loss :
≥50dB
Description

Indoor Duplex OM3 Optical Cable MM FC - FC UPC Optical Fiber Patch Cord Jumper

Product details:

Optical Fiber Patch Cord (Jumper) is a length of optical fiber with two ends adding connectors to connect beam path. Pigtail is a length of fiber permanently attached connector only at one end. Yogel patch cords assembled with various types of connectors (such as FC, SC, ST, LC,MU,MTRJ etc.) There are three

kinds of polished fiber end-face: PC, UPC and APC .we employ advanced technique and equipment to

manufacture so as to ensure the high quality of mass production.

The 62.5/125μm multimode fiber optic cable is suitable for enterprise network, telecom room, server farms, cloud storage networks, and any place fiber jumper cables are needed.And cable is optically tested for insertion loss to ensure high quality.
Connector FC to FC Jacket OD 3.0mm
Fiber Type 62.5/125μm Fiber Count Duplex
Polish Type UPC to UPC Jacket Material PVC
Insertion loss ≤0.3dB Interchangeability ≤0.2dB
Return loss ≥50dB Vibration ≤0.2dB
Minimum Bend Radius 30mm Storage temperature -40~75°C
Fiber Grade G.652.D Polarity A(Tx) to B(Rx)

Features:

Complies with IEC, Telcordia GR-326-CORE standard

Low insertion loss and high return loss

PC/UPC/APC polishing

Diameter:0.9, 2.0, and 3.0mm

Fiber jumper of the Single or multi mode is available

Simplex or duplex is available

PVC or LSZH fiber optical cable is available

Excellent changeability and repeatability

Tensile strength:10N

Operating temperature range:-40 to 80°C

Storage temperature range:-40 to 80°C

Color of fiber optic cable:Yellow (SM), Orange (MM), and Aqua (OM3)

Indoor Duplex OM3 Fiber Optic Patch Cables Jumper MM FC - FC UPC Low Insertion LossIndoor Duplex OM3 Fiber Optic Patch Cables Jumper MM FC - FC UPC Low Insertion Loss

Applications:

Local Area Network (LAN)

Data communication network

Telecommunication optical transmission network

Optical access network(OAN)

Active device termination

Fiber optics data transmission(FODT)

Test Equipment

CATV

Packaging & Shipping

One piece per PE bag with stick label (we could add customer's logo in the label.)
Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
Airport to Airport: by air
Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
