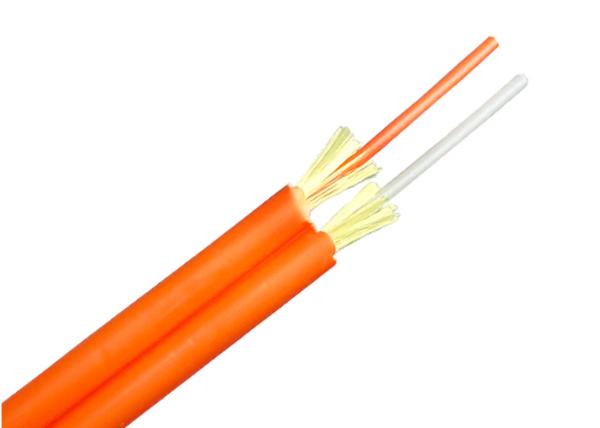

Fiber Optic Cable Indoor FHHX Duplex Multi Mode For Fiber Optic Patch Cord
Fiber Optic Cable Indoor FHHX Duplex Multi Mode For Fiber Optic Patch Cord
Fiber Optic Cable Indoor FHHX Duplex Multi Mode For Fiber Optic Patch Cord
Fiber Optic Cable Indoor FHHX Duplex Multi Mode For Fiber Optic Patch Cord
Fiber Optic Cable Indoor FHHX Duplex Multi Mode For Fiber Optic Patch Cord
Fiber Optic Cable Indoor FHHX Duplex Multi Mode For Fiber Optic Patch Cord
Fiber Optic Cable Indoor FHHX Duplex Multi Mode For Fiber Optic Patch Cord
Fiber Optic Cable Indoor FHHX Duplex Multi Mode For Fiber Optic Patch Cord
Specifications
Place of Origin :
Guangdong, China
Brand Name :
TTI
Certification :
ROHS, SGS
Model Number :
FOC-Indoor
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :

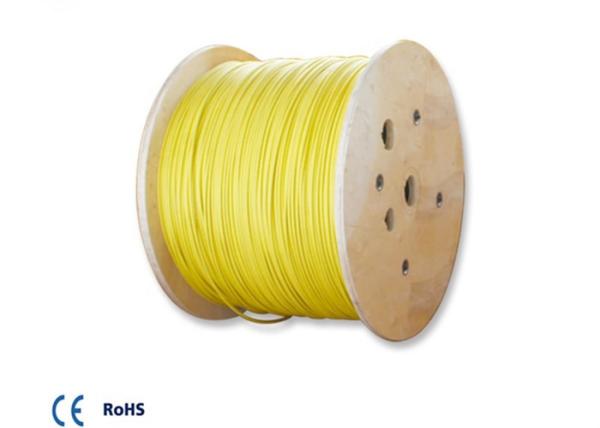

Wooden drum with test report
Delivery Time :
3-5 days
Payment Terms :
T/T, , PayPal, Monthly settlement
Supply Ability :
100000M/Day
Fiber type :
Single Mode or Multi Mode
Strength member :
Aramid Yarn
Sheath material :
PE, PVC, LSZH
Packing :
Wooden Reel
Color :
Yellow, Orange, Blue
fibre count :
2Core
Description

Fiber Optic Cable Indoor FHHX Duplex Multi Mode For Fiber Optic Patch Cord

Quick Detail:

  1. Type: Simplex, Duplex
  2. Mode: 9/125, OM1, OM2, OM3, OM4
  3. Fiber: G652D, G657A, G657B
  4. Jacket: PVC, LSZH, OFNP, OFNR
  5. Cable color: Yellow, Orange, Aqua, Violet, Blue, Green, White, Black, Red...
  6. Application: Indoor fibre cable

Features:

  1. Good mechanical and temperature performance
  2. High strength loose tube that is hydrolysis resistant
  3. Special tube filling compound ensure a critical protection of fiber
  4. Crush resistance and flexibility
  5. Small diameter , light weight and friendly installation
  6. 0.6mm, 0.9mm tight buffer/loose buffer fiber
  7. Soft,flexible,easy to splice,and with big capacity date transmission
  8. Meet various requirements of market and clients
  9. High strength loose tube that is hydrolysis resistant
50/125μm 62.5/125μm G652 G655
Attenuation(+20°C) @850nm ≤3.5dB/km ≤3.5dB/km
@1300nm ≤1.5dB/km ≤1.5 dB/km
@1310nm ≤0.45Db/km ≤0.50Db/km
@1550nm ≤0.30Db/km ≤0.50Db/km
Bandwidth(Class A) @850nm ≥500Mhz·km ≥200Mhz·km
@1300nm ≥1000Mhz·km ≥600Mhz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm

Attenuation at temperature cycling α(-20°C~+85°C)

 @1300nm ≤0.25dB/km ≤0.25dB/km
@1550nm ≤0.10dB/km

≤0.10dB/km

Application:

Applicable for indoor cabling system.

Applicable for Duplex Optical fiber jumper or pigtail.

Applicable for optical connection in optical communication machine room, optical distribution frame, optical device or equipment.

Applicable for indoor riser level and plenum level cable distribution.

Applicable for interconnect between instruments, communication equipments

Technical Parameters:


Fiber Optic Cable Indoor FHHX Duplex Multi Mode For Fiber Optic Patch Cord

Fiber Optic Cable Indoor FHHX Duplex Multi Mode For Fiber Optic Patch Cord

Fiber Optic Cable Indoor FHHX Duplex Multi Mode For Fiber Optic Patch Cord

Fiber Optic Cable Indoor FHHX Duplex Multi Mode For Fiber Optic Patch Cord
