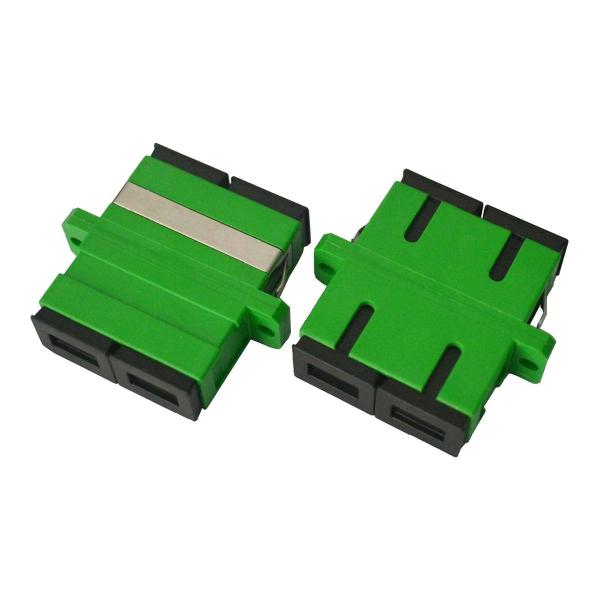

Green Singlemode SC APC fiber optic cable adapter for LAN , Low Insertion Loss
Green Singlemode SC APC fiber optic cable adapter for LAN , Low Insertion Loss
Green Singlemode SC APC fiber optic cable adapter for LAN , Low Insertion Loss
Green Singlemode SC APC fiber optic cable adapter for LAN , Low Insertion Loss
Green Singlemode SC APC fiber optic cable adapter for LAN , Low Insertion Loss
Green Singlemode SC APC fiber optic cable adapter for LAN , Low Insertion Loss
Green Singlemode SC APC fiber optic cable adapter for LAN , Low Insertion Loss
Green Singlemode SC APC fiber optic cable adapter for LAN , Low Insertion Loss
Specifications
Place of Origin :
Guangdong, China
Brand Name :
TTI
Certification :
ROHS, SGS
MOQ :
Negotiable
Packaging Details :
25pcs/Case
Delivery Time :
2-3 days
Payment Terms :
T/T
Supply Ability :
10000pcs/day
Model Number :
FOA-SC
Price :
Negotiable
Description

Green Singlemode SC APC fiber optic cable adapter for LAN , Low Insertion Loss

Quick Details

  1. Type: SC/APC
  2. Mode: Singlemode
  3. Structure: with flange
  4. Sleeve: Ceramic sleeve
  5. Color: Green color
  6. Housing: Plastic housing

Description:

Fiber Optic Adapter is the mechanical device designed to align fiber optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.

Features:

  1. SC used pluggable tight locking structure
  2. Zirconia or Bronze Sleeve
  3. Precision mechanical dimension
  4. Low Insertion Loss, high Return loss
  5. Standardization and Uniformization of Metal Casing
  6. Good repeatability, interchangeability and environmental stability

Application:

  1. Fiber optic communication network
  2. Optical Broadband Access Network
  3. Equipment Test
  4. Local Area Network
  5. Optic instrumentation
  6. CATV system, Optic LAN
  7. Telecommunication Networks

Specification:

Type SC/FC/ST/LC/MU/MTRJ/MPO
Insertion Loss(dB) SM≤0.2dB, MM≤0.3dB
Repeatability(dB) ≤0.1dB
Mechanism Durability(500 cycles, dB) ≤0.2dB
Temperature Range -40°C-+85°C
Material of sleeve Zirconia or Bronze

Reliability testing:

Item Test Name Additional Insertion Loss Additional Return Loss
1 Mechanical durability <0.2dB <5dB
2 Repeatability <0.2dB <5dB
3 Lock strength <0.2dB <5dB
4 Low strength <0.2dB <5dB
5 High temperature <0.2dB <5dB
6 Steaming <0.2dB <5dB
7 Temperature cycle <0.2dB <5dB
8 Vibration <0.2dB <5dB
9 Drop <0.2dB <5dB

Ordering Information:

SC/UPC-SC/UPC-SM-SX

Step 1: Connector type: FC, SC, LC, ST, MTRJ, MU, MPO

Step 2: Ferrule End-face: PC, UPC, APC

Step 3: Type: Single-mode, Multimode (MM, OM3, OM4)

Step 4: Mode: Simplex, Duplex

Step 5: Sleeve: Ceramic, Bronze

Step 6: Housing material: Plastic, Metal

Packing:

25pcs per PE bag with stick label (we could add customer's logo in the label.)

Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

Our service:

  1. Standard and customized OEM products from small to large quantity are welcome.
  2. Compliance with global environmental industry with RoHS and SGS standards.
  3. All products are 100% fully tested by our technical expertise.
