SPC polishing MU Fiber Optical Connector with 1.25mm Ferrule for CATV Network
SPC polishing MU Fiber Optical Connector with 1.25mm Ferrule for CATV Network
SPC polishing MU Fiber Optical Connector with 1.25mm Ferrule for CATV Network
SPC polishing MU Fiber Optical Connector with 1.25mm Ferrule for CATV Network
Specifications
Place of Origin :
Guangdong, China
Brand Name :
TTI
Certification :
ROHS, SGS
Model Number :
FC-MU
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
200pcs/PE bag
Delivery Time :
in 2-4 days
Payment Terms :
T/T, , Monthly settlement
Supply Ability :
10000pcs/Day
Description

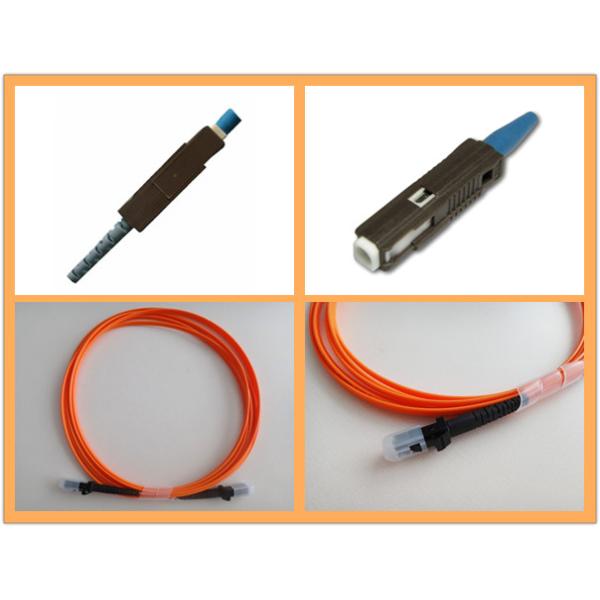

SPC polishing MU Fiber Optical Connector with 1.25mm Ferrule for CATV Network

Qick Detail:

  1. Name:MU optical fiber connector
  2. Include: Dust cap, Housing, Stopper, Spring, Boot
  3. Type: d
  4. Material: Plastic, Zinc Alloy, Bronze
  5. Housing color: blue, Beige, Green, Aqua
  6. Boot color: Yellow, Beige, Aqua, White, Red, Black, Green…

Features:

  1. Superior qualified standard PC, APC, UPC, SPC polishing
  2. FC, SC, LC, MU, ST, MT-RJ, etc connector
  3. Good exchange ability and good durability;
  4. Available in fiber bunch, ribbon fan-out, pigtail available;
  5. φ0.9mm, φ2.0mm, φ3.0mm fiber optic cable optional
  6. Single mode (9125) or multi mode (50125 or 62.5125) fiber available

Applications:

  1. CATV, metro Test equipment

  2. Telecommunication networks

  3. Local area networks (LAN)

  4. Wide area networks (WAN)

  5. Optical Fiber Test and Measurement Systems
  6. Optical Fiber Communication
  7. Optical Transmission Backbone

Specification:

Parameter Unit Data
FC/PC FC/APC SC/PC SC/APC ST/PC ST/APC MU/PC LC/PC LC/APC
Insertion Loss dB ≤0.3(single mode); ≤0.1(multi mode)
Repeatability dB ≤0.1
Interchangeability dB ≤0.2
Return Loss SM dB ≥45 ≥60 ≥45 ≥60 ≥45 ≥60 ≥50 ≥50 ≥60
MM dB ≥36without APC connector
Mating cycle cycle 1000
Operating temperature -40~+80 -25~+70 -40~+80 -25~+70

Ordering Information:

Step 1: Connector Type: FC,SC,LC,ST,MTRJ,MU,MPO,D4,DIN,SMA

Step 2: Connector size: 0.9mm, 2.0mm, 3.0mm

Step 3: Ferrule End-face: PC, UPC, APC

Step 4: Core Type: Single-mode (SM:9/125um), Multimode (MM:50/125um,62.5/125um)

Step 5: Boot color: Black, Blue, White, Red, Yellow, Green, Beige, Aqua

Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

Our service:

  1. Standard and customized OEM products from small to large quantity are welcome.
  2. Compliance with global environmental industry with RoHS and SGS standards.
  3. All products are 100% fully tested by our technical expertise.
  4. We could add customer's logo in the label.

SPC polishing MU Fiber Optical Connector with 1.25mm Ferrule for CATV Network

SPC polishing MU Fiber Optical Connector with 1.25mm Ferrule for CATV NetworkSPC polishing MU Fiber Optical Connector with 1.25mm Ferrule for CATV Network
